Pentax R-2500NS Series User Manual

33

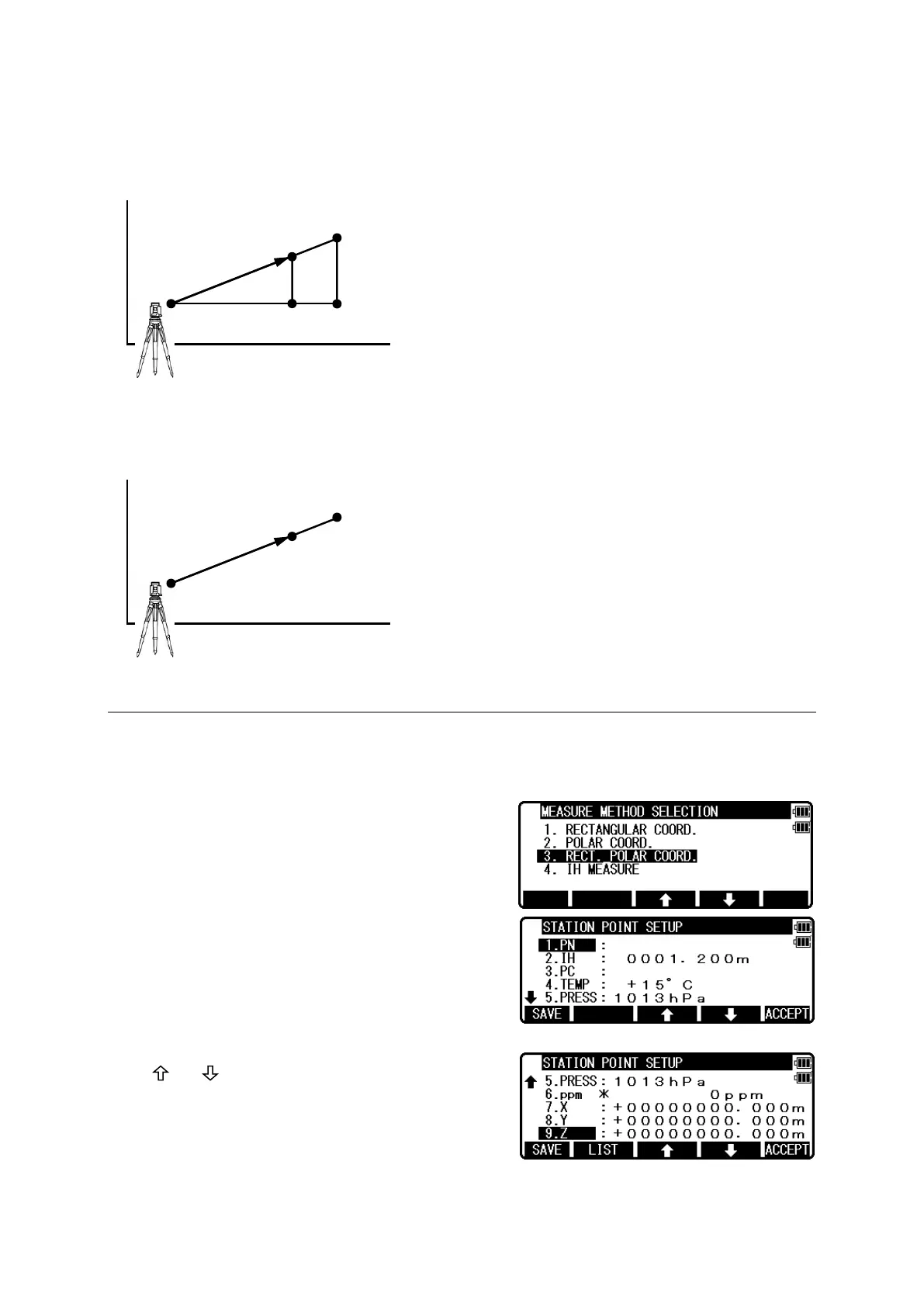

RO: Radial Offset (RO: On the horizontal plane. Offset P: Along the line of measurement,
thus along the slope)
DO: Distance Offset (Along the line of measurement, thus along the slope)
4.9 Station setup [By Rectangular & Polar Coordinates]
Rectangular Data and Polar Data can be stored at the same time in this function
Press [F2][MEAS] of the PowerTopoLite to view
the MEASURE METHOD SELECTION screen.
Select 3. RECT._POLAR COORD. and press [ENT]
to view the STATION POINT SETUP screen.
The [ ] / [ ] mark is used to scroll up / down.
Input the necessary parameter.
For more details on input procedure, refer to “4.1
Station setup [By Rectangular Coordinates] and “4.5 Station setup [By Polar Coordinates]
Z
SP
RO
Offset Point : Offset P
X.Y
P
Z
SP
Offset P
DO
X.Y
P
