4.10 Station Orientation

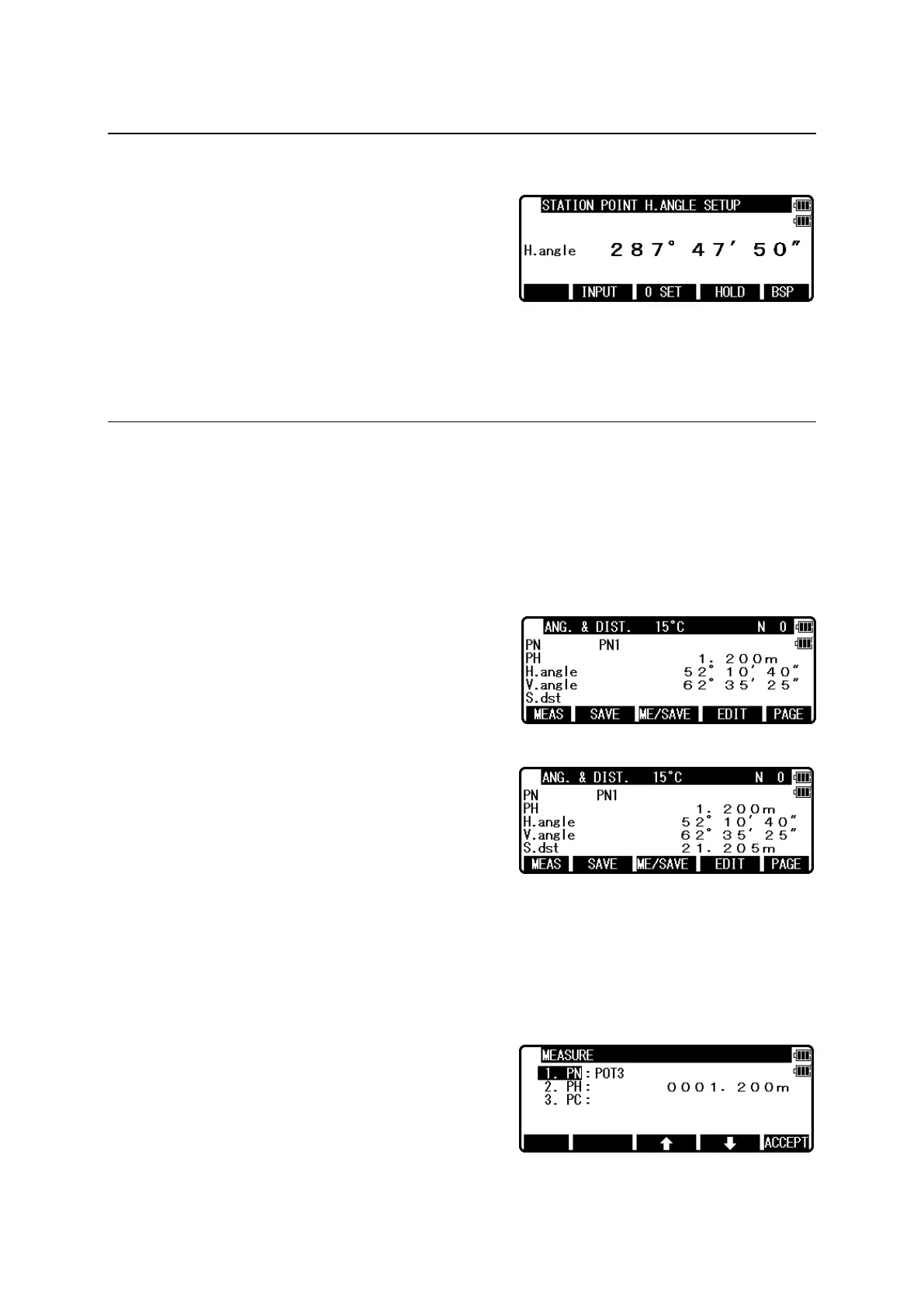

Press the [F5][ACCEPT] to view the STATION
POINT H.ANGLE SETUP screen.
Please, note that the rotation of the “H.angle”
depends on the rotation setting of
“Coordinate axis definition”.
Input the H.angle by pressing [F2][INPUT], [F3][0SET] and [F4] [HOLD] or Reference point
Coordinates by pressing [F5][BSP] (Refer to “4.2 Station Orientation”).
4.11 Function of MEASRE screen
Press [ENT] to display MEASRE screen
Two screens; “MEASURE” and “ ANG. & DIST” are displayed and the screen to be display
first can be set on “PREFERENCE “ of “11. MEAS. DISPLAY”
When it is on default, ANG.& DIST screen is displayed
For more details, refer to “14.11Meas.Display”
Coordinates display and Angle & Distance display.
Aim at the reference point and press [ENT] to view
the MEASURE screen.
Press the [F1][MEAS] to measure the Distance and
display the Coordinates.
Press [F2][SAVE] to save the measured data.
Press [F3][ME/SAVE] to measure and save the measured data.
No survey data is saved when no PN is input.
Rectangular Data and Polar Data are saved with the same point name in the same job
file.
Press [F4][EDIT] to edit the PN, Point Name, PH,
Prism Height and PC, Point Code.
Press [ENT] to view each input window by pressing
up or down arrow key, and input your desired point
name or prism height or point code. Press
[F5][ACCEPT] if the current PN, PH and PC are acceptable.
