Pentax R-2500NS Series User Manual

56

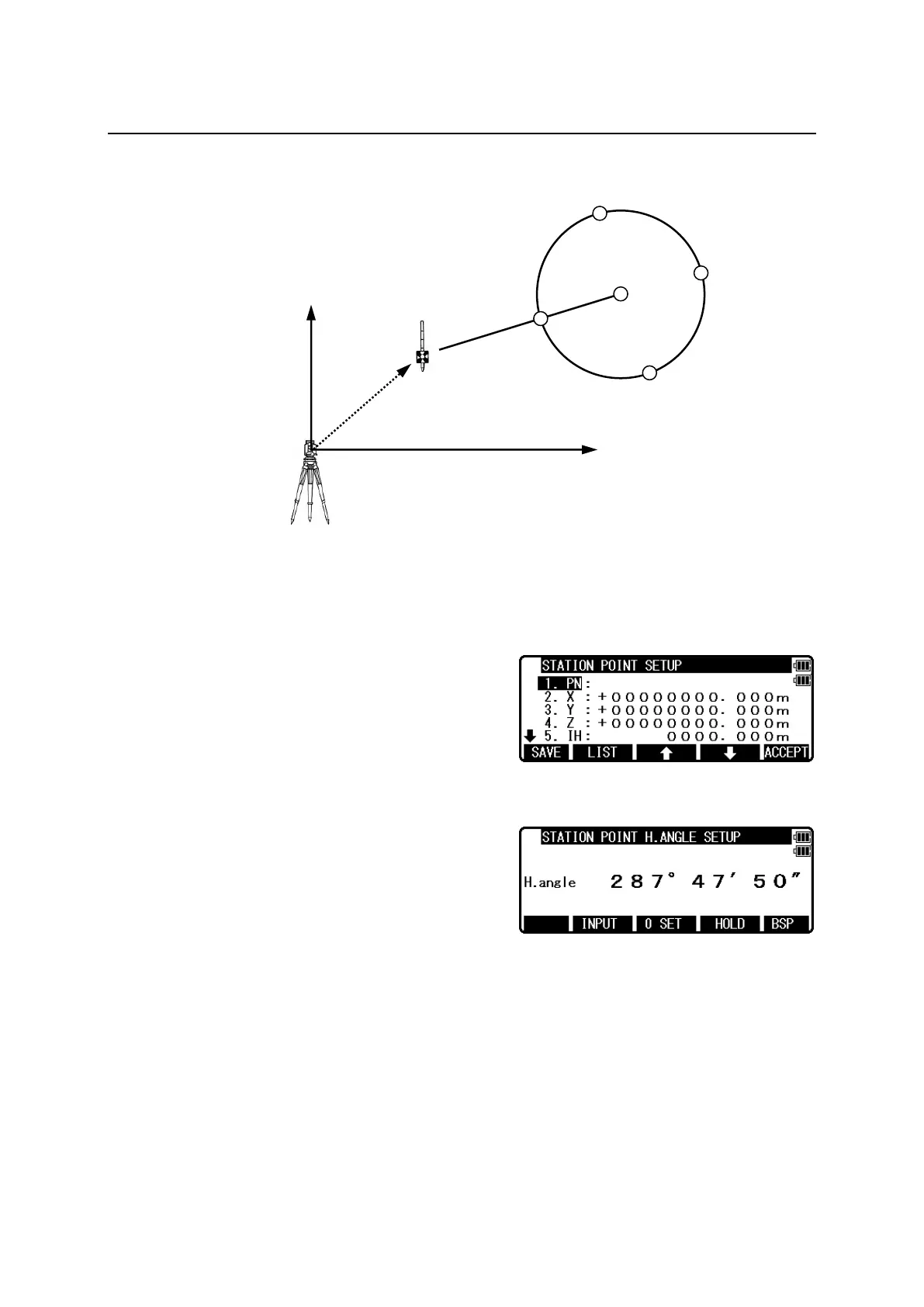

7.4.1 Three point
Input three points to make a circle, obtain the distance from the Stake Out Point to the
circumference.
Select 1.THREE POINT and press [ENT] to view
the STATION POINT SETUP screen.
Open the PN, X, Y, Z, IH and PC input window and
input each. Save the data by pressing [F1][SAVE].
Press [ENT] to view STATION POINT H.ANGLE
SETUP screen.
Input the H. angle by pressing [F2][INPUT],
[F3][0SET] and [F4] [HOLD] or Backsight
Coordinates by pressing [F5][BSP].
Stake Out Point : P
Station Point
P1
P2
P3
O
