NOTE: When you want to stop function on the way, press [ESC] several times to return.
NOTE: Since a lot of data is recorded at the same time, it may take some time to complete all
the data. Do not remove the battery during recording as it may damage the instrument.
NOTE: IP point is not stored.
Sample Data
Point Name
X
Y
A1
A2
R
BP
110.000
120.000
IP1
180.000
140.000
50.000
50.000
80.000
IP2
220.000
280.000
50.000
50.000
80.000
EP
280.000
300.000
BP Additional distance
15.000
Number peg pitch
20.000
Pitch curve section
10.000
Width(Left)
5.000
Width(Right)
5.000

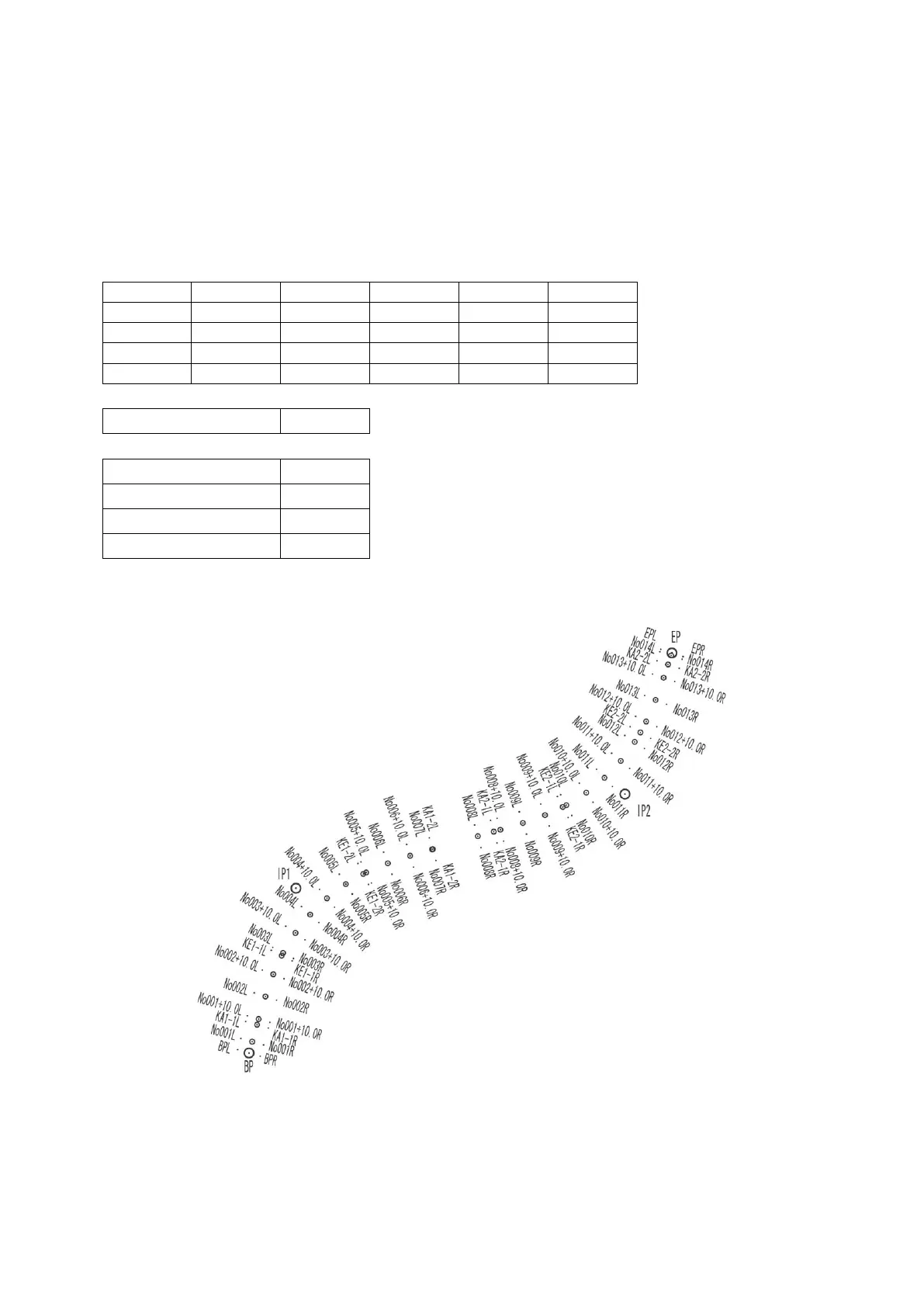

The following plot was made by sending the calculation results to PC after calculating the
sample data by the R-2500,
