48

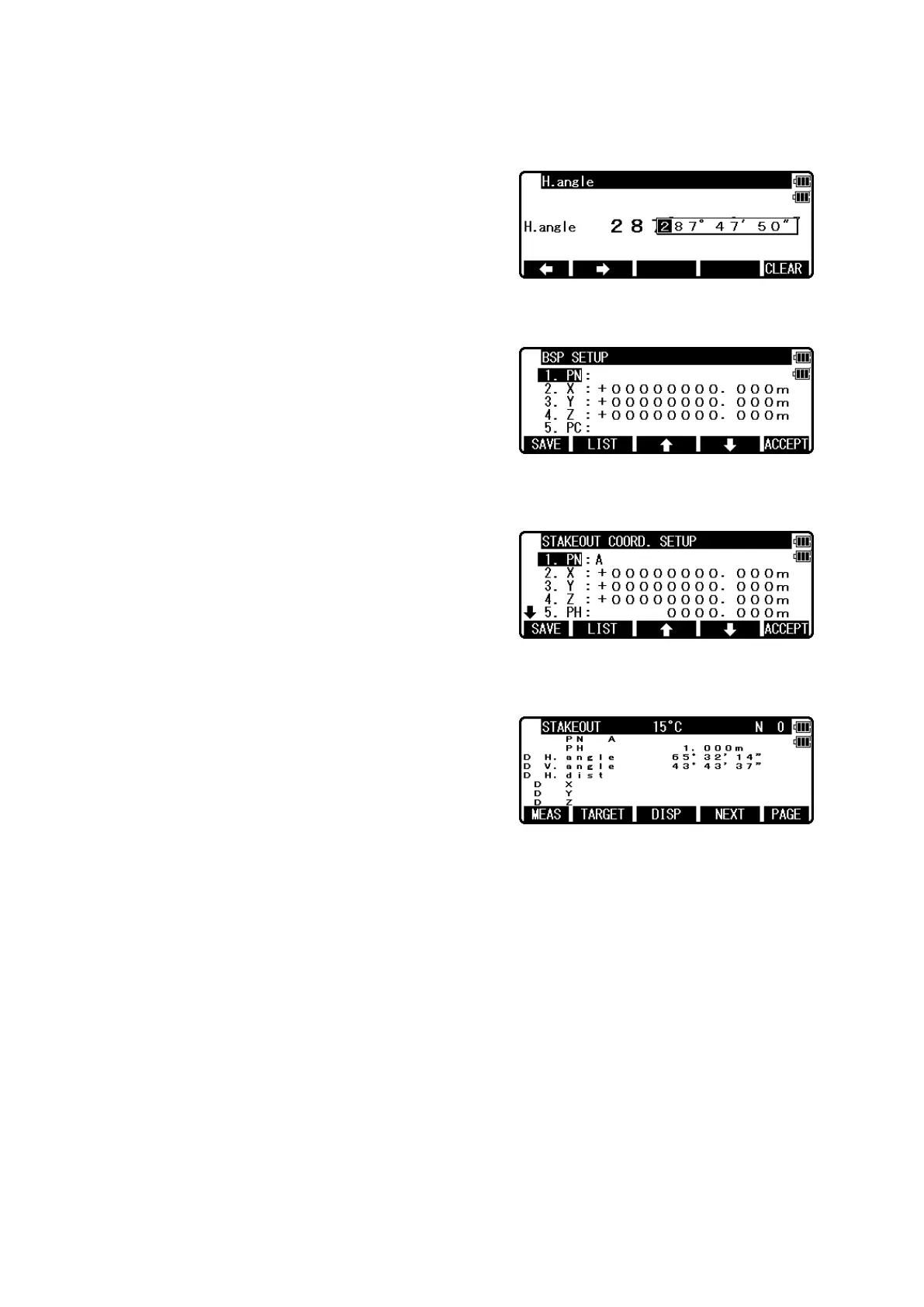

Input the H. angle by pressing [F2][INPUT], [F3][0SET] and [F4] [HOLD] or Backsight
Coordinates by pressing [F5][BSP].
Pressing [F2][INPUT]
Input any horizontal angle.
Pressing [F5][BSP]
The information for Back sight point is obtained.
Press [ENT] to finalize the input.
Press [ENT] to view the STAKEOUT COORD.
SETUP screen.
Open the PN, X, Y, Z, PH and PC input window and
input each.
Save the data by pressing [F1][SAVE].
Press [ENT] or [F5][ACCEPT] to view the
STAKEOUT screen.
Aim at the Stake out point and press the [F1][MEAS] to begin the Stake Out.
Deviation of each value is displayed.
Form of the screen to display deviation of the Stake Out can be changed by the selections
of the “14.6 Compare method selection” in “14.PREFERENCE” setting.
