53

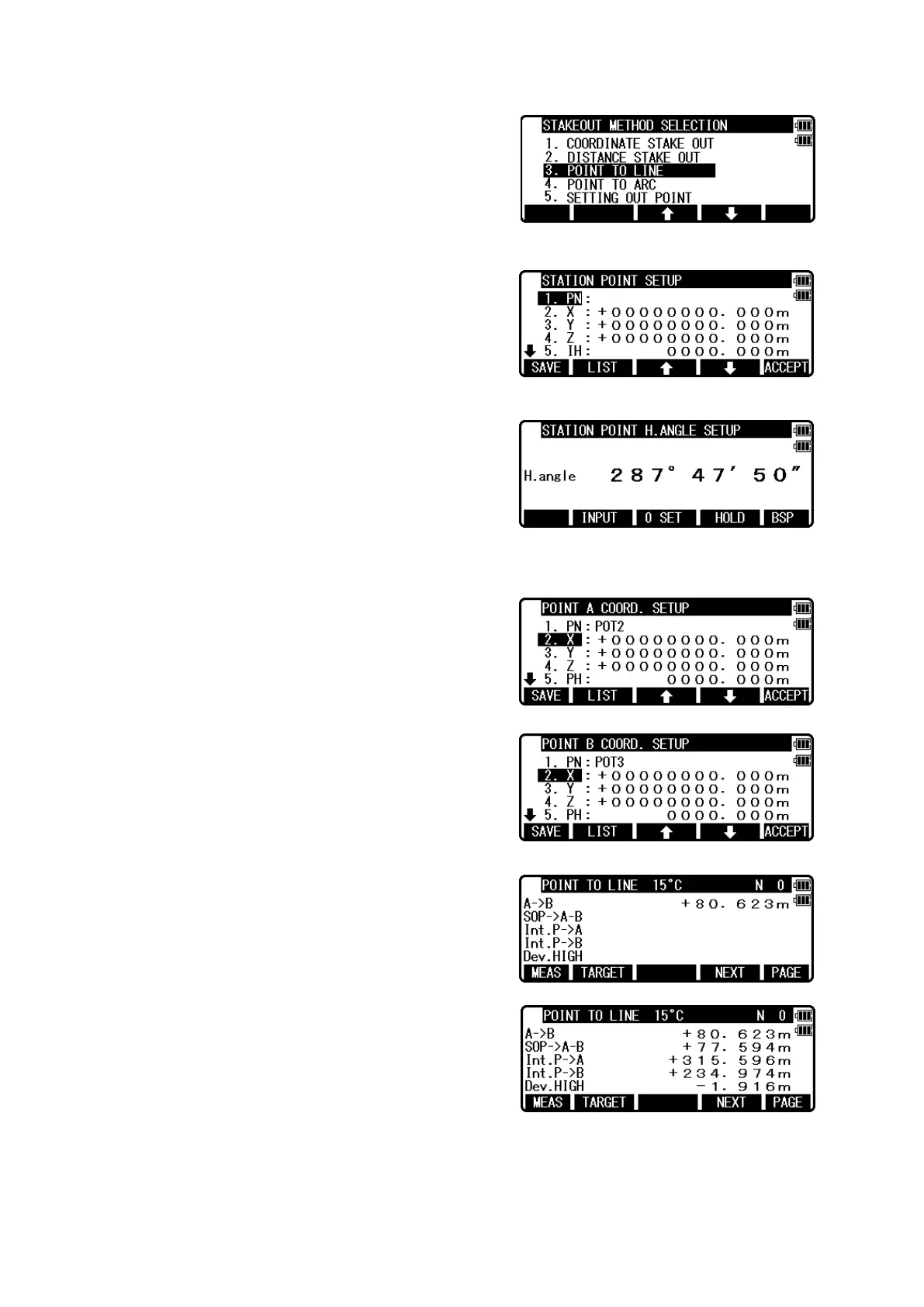

Select 3. POINT TO LINE and press [ENT] to
view STATION POINT SETUP screen.
Open the PN,X,Y,Z,IH and PC input window and input each.
Press [ENT] to view the STATION POINT H.
ANGLE SETUP screen.
Input the H. angle by pressing [F2][INPUT],
[F3][0SET] and [F4] [HOLD] or Backsight
Coordinates by pressing [F5][BSP].
Aim at the reference point and press [ENT] to view POINT A COORD.SETUP screen.
Open the PN, X, Y, Z, PH and PC input window and
input each of the Point A
and press [ENT].
Open the PN, X, Y, Z, PH and PC input window and
input each of the Point B.
Press [ENT] to view the POINT TO LINE screen.
Press [F1][MEAS] to measure.
Each distance is displayed.
