75
Input PN (Point Name), X, Y, Z, and PC (Point Code) of S1 point or import from the
memory of rectangular coordinate as S1 by [F2][LIST].
If you finish the input of S1 value, press
[F5][ACCEPT]. Then you go to E1 input screen.

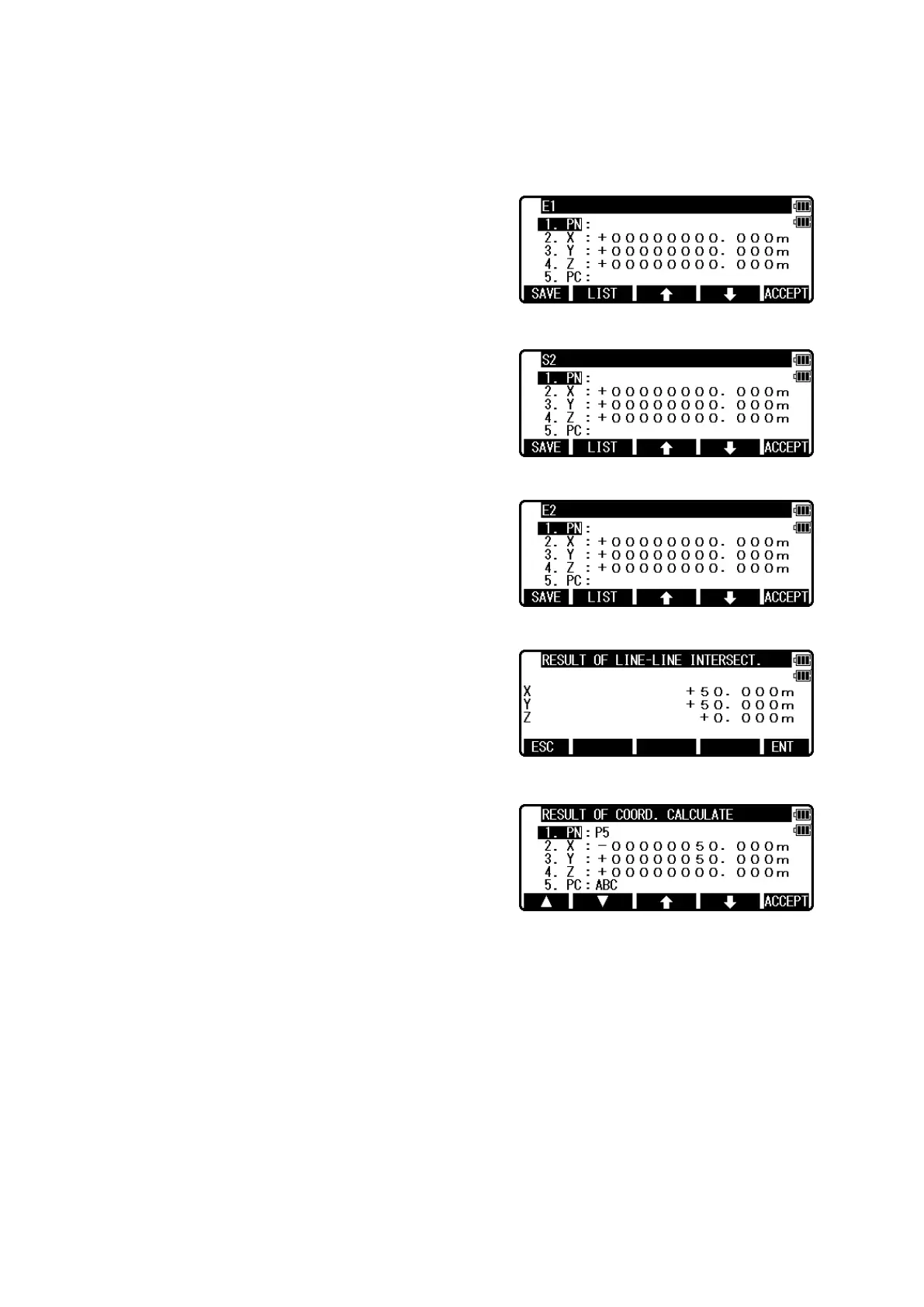

Input E1 value like an input of S1.
If you finish an input of E1, press [F5][ACCEPT].
Then you go to S2 input screen.
If you finish the input of S2 value, press
[F5][ACCEPT].Then you go to E2 input screen.
If you finish the input of E2, press [F5][ACCEPT].
Then you go to RESULT OF LINE-LINE
INTERSECTION screen.
Press [F5][ENT] to save an intersection point.
The PN, X, Y, Z and PC are viewed and can be edited.
If all items are OK, press [F1][SAVE] or [F5][ACCEPT] to save them.
