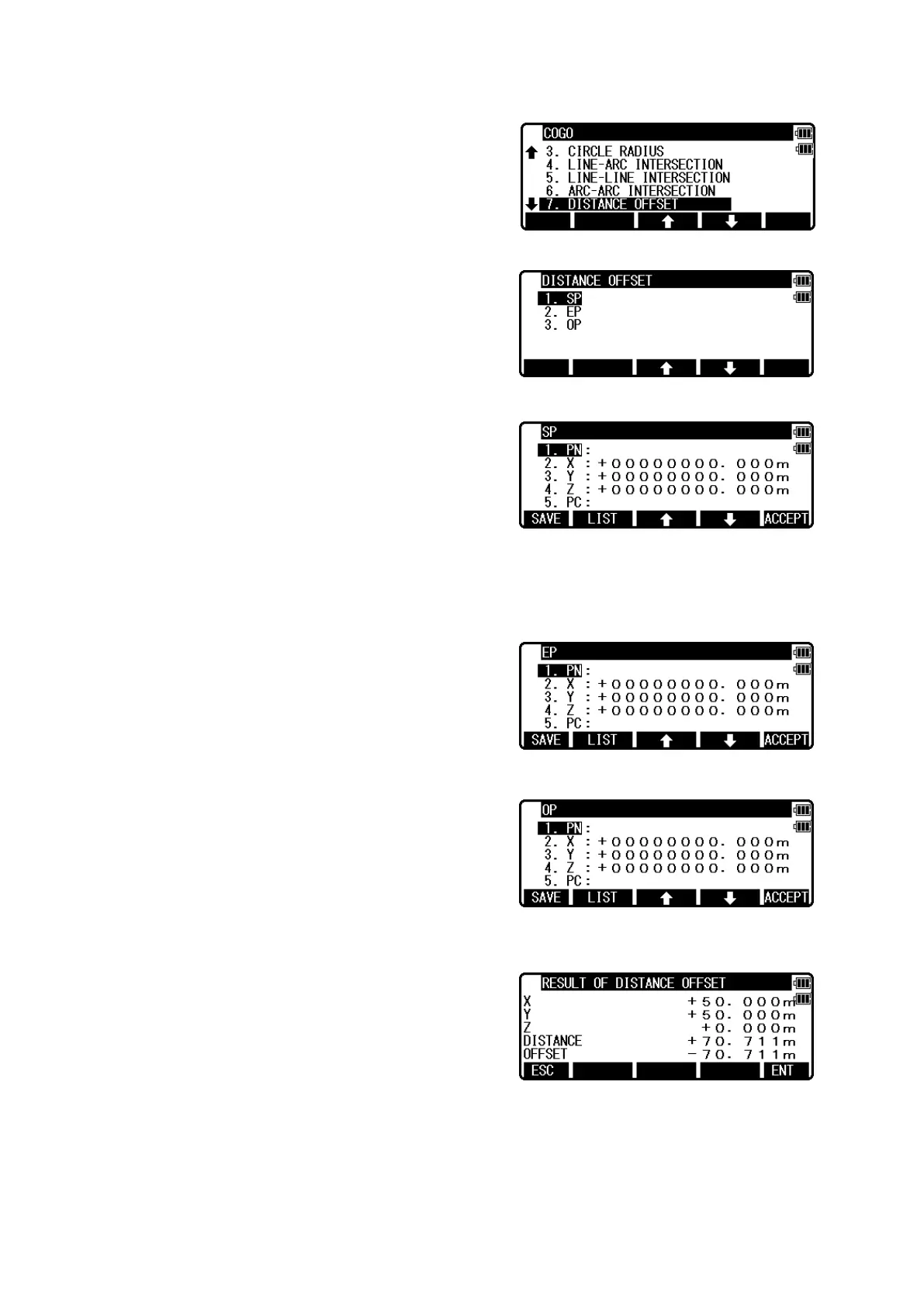

Select 1. COGO and press [ENT] to view the COGO
screen.
Select the 7. DISTANCE OFFSET and press [ENT]
to view DISTANCE OFFSET screen.
Select 1. SP and press [ENT] to view SP screen.
Input PN (Point Name), X, Y, Z, and PC (Point Code) of SP point or import from the
memory of rectangular coordinate as SP by [F2][LIST].
If you finish the input of SP value, press
[F5][ACCEPT].Then you go to EP input screen.
Input EP data like input of SP. If you finish the
input of EP, press [F5][ACCEPT].
Then you go to OP input screen.
If you finish the input of OP, press [F5][ACCEPT].
Then you go to RESULT OF DISTANCE OFFSET
screen.
You can see the coordinates of new point on the
line, offset distance of new point to the line and
distance of new point to start point.
