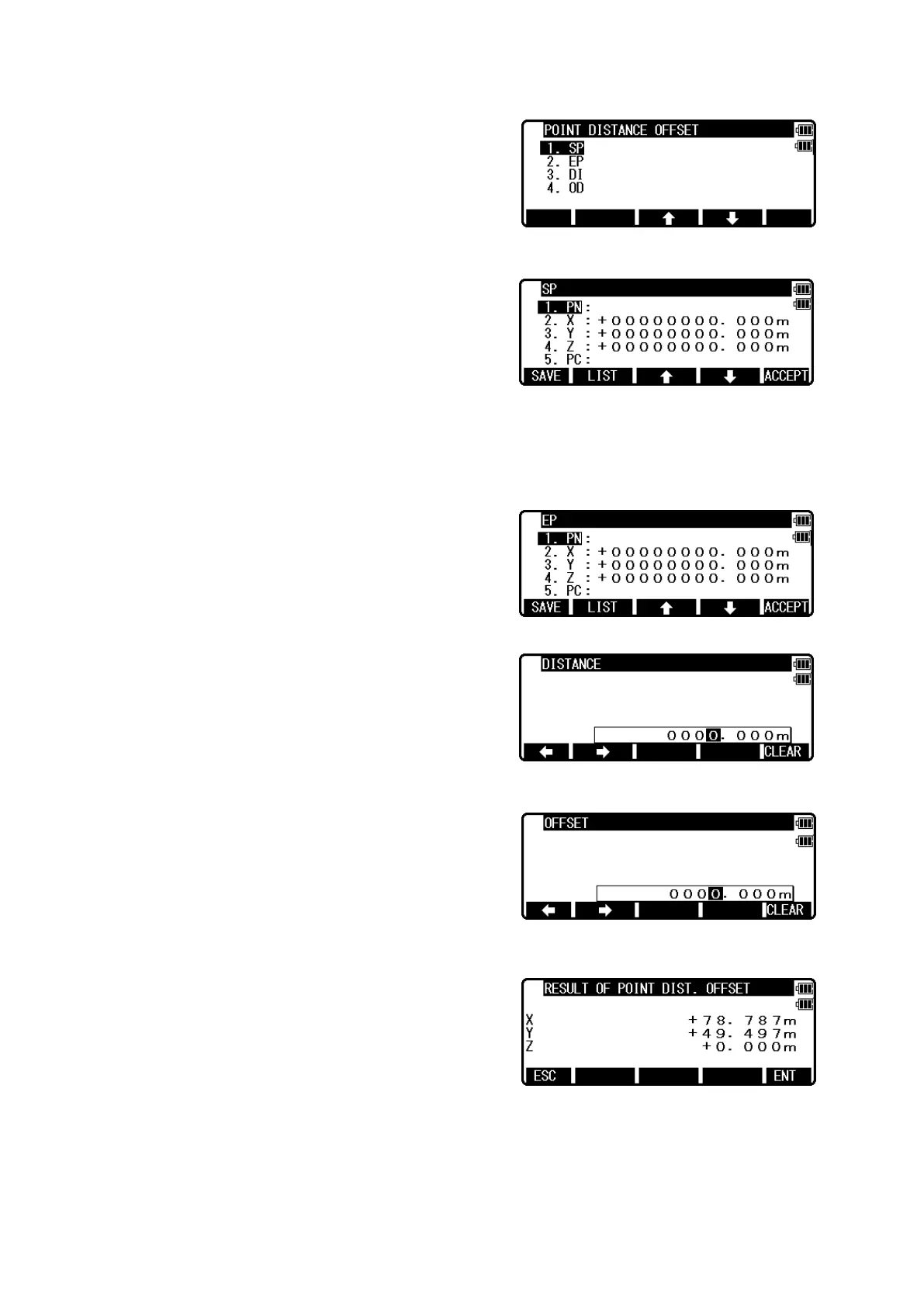

Select the 8. POINT DISTANCE OFFSET and press
[ENT] to view POINT DISTANCE OFFSET screen.
Select 1. SP and press [ENT] to view SP screen.
Input PN (Point Name), X, Y, Z, and PC (Point Code) of SP point or import from the
memory of rectangular coordinate as SP by [F2][LIST].
If you finish the input of SP value, press
[F5][ACCEPT].Then you go to EP input screen.
Input EP data like input of SP.
If you finish the input of EP, press [F5][ACCEPT].
Then you go to DISTANCE input screen.
Input DI (Distance from SP to point on the line).
If you finish the input of DI, press [F5][ACCEPT].
Then you go to OFFSET input screen.
Input OD (Offset distance from the line to offset
point).
If you finish the input of OD, press [F5][ACCEPT].
Then you go to RESULT OF POINT DIST.OFFSET
screen.
You can see the coordinates of offset point from the line.
