ENGINE TIMING 17E
Engine timing

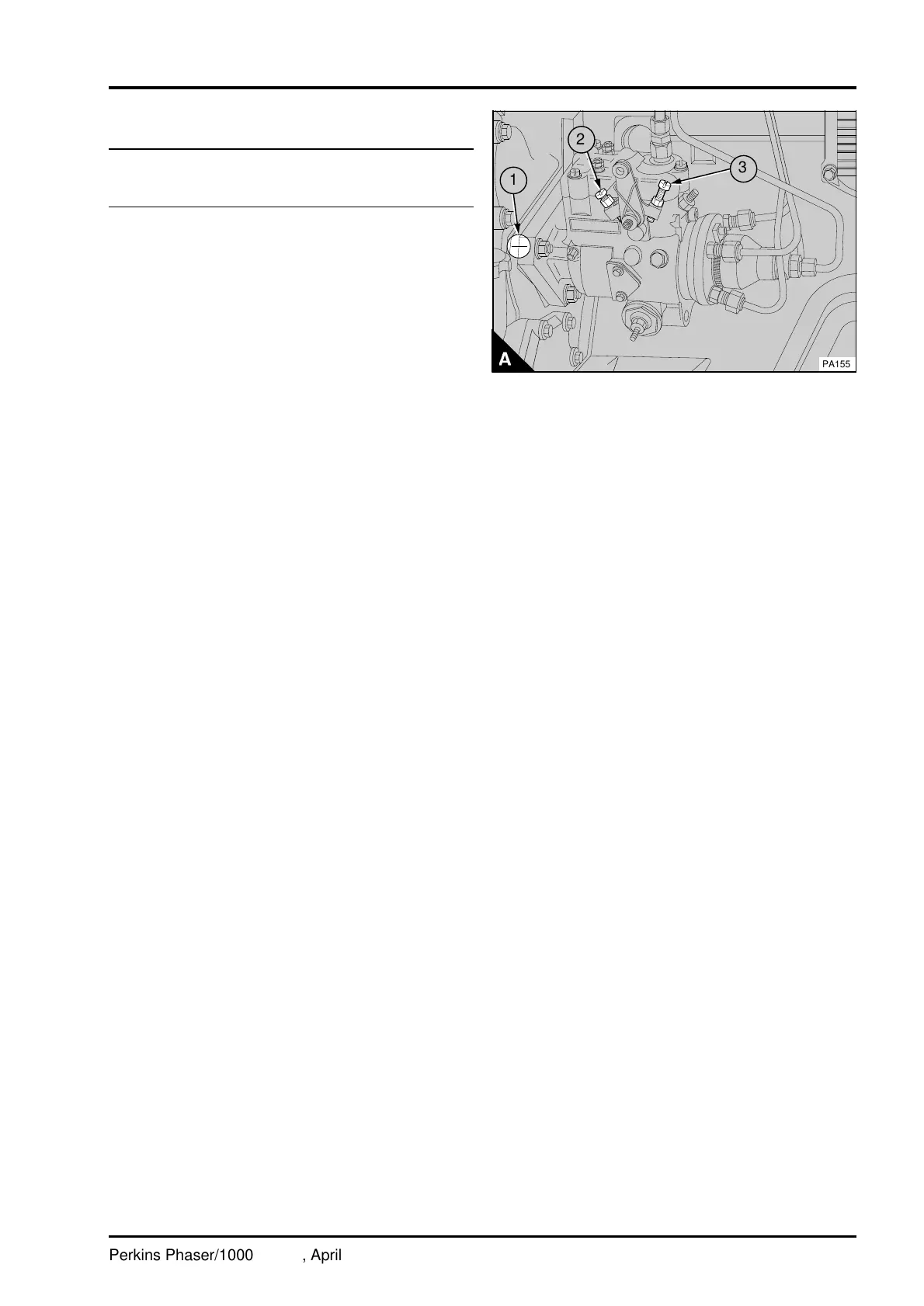

To check the timing of the fuel injection
pump17E-03
If the mark on the flange of the fuel injection pump
is in line with the mark on the timing case (A1), the
timing of the fuel injection pump should be correct.
If the timing marks are in line and engine
performance indicates that the timing is not correct,
check that the marks on the flange and on the
timing case are in their correct positions, operation
17E-03.
