20C FUEL SYSTEM
To remove and to fit -
Lucas DPA and DPS pumps20C-06
To remove
Special tools:
Gear puller, PD.155C
Adaptors for use with PD.155C, PD.155B-5
Spanner for flange nuts of fuel injection pump,
PD.199
1 Remove all the pipes, disconnect the stop
control and the control rod of the fuel injection
pump.
2 Remove the gear cover from the cover of the
timing case. Remove the gear nut and the spring
washer.
3 Rotate the crankshaft to ensure that the keyway
in the drive gear of the fuel pump is at or is near to
the top.
4 Remove the setscrew and the nut of the support
bracket below the fuel pump. Release the flange
nuts of the fuel pump. If access to the flange nuts
of the fuel pump is restricted by, for example, a
compressor, use tool PD.199 to release the flange
nuts.

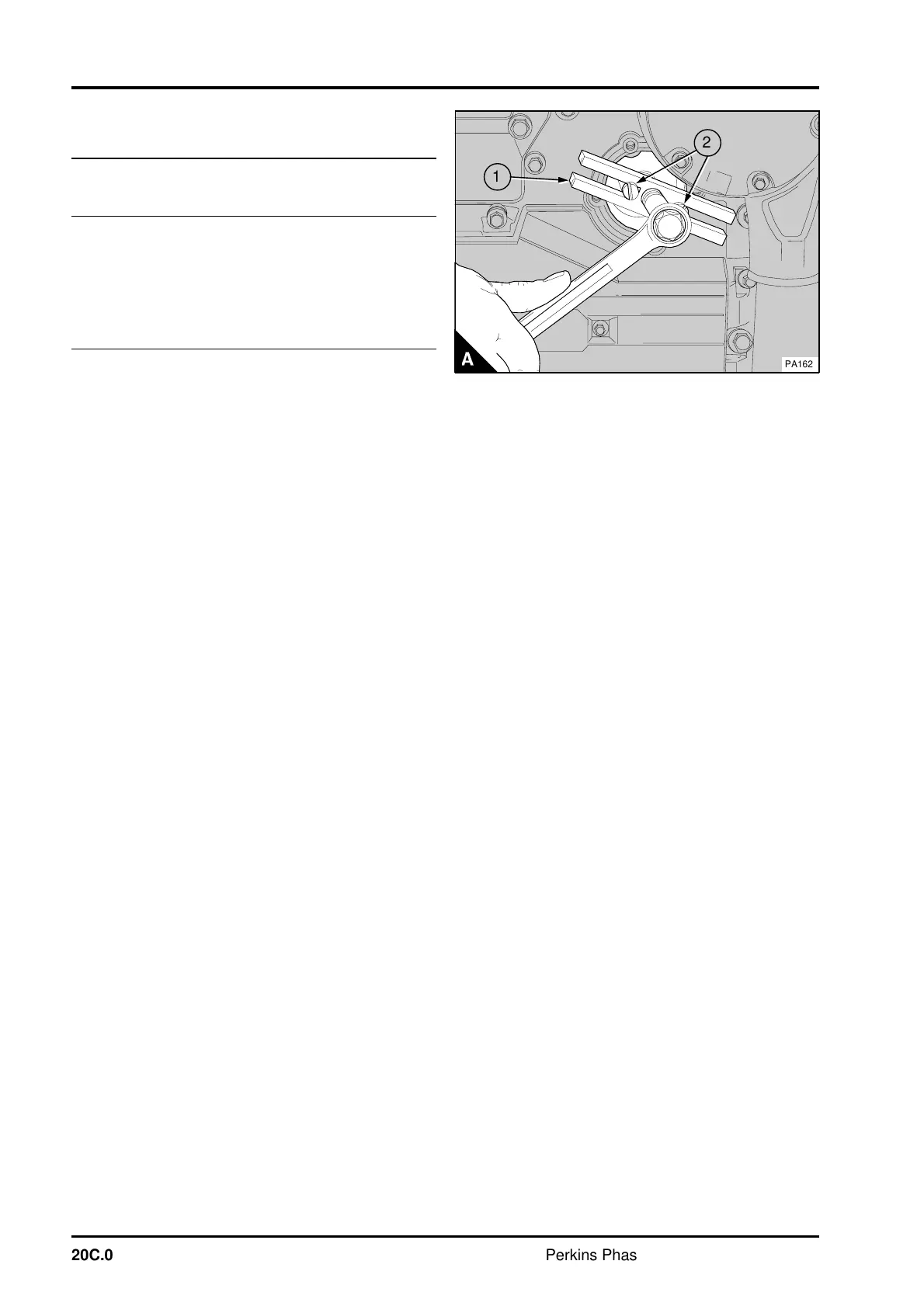

5 Loosen the drive gear of the fuel injection pump
with the puller PD.155C and the adaptors
PD.155B-5 (A).
6 Remove the fuel pump; ensure that the key does
not fall from the drive shaft.
