FUEL SYSTEM 20C
To fit
1 Rotate the drive shaft of the fuel injection pump
to align the key with the keyway in the drive gear.
Ensure that the key is correctly fitted and fit the fuel
pump to the gear.

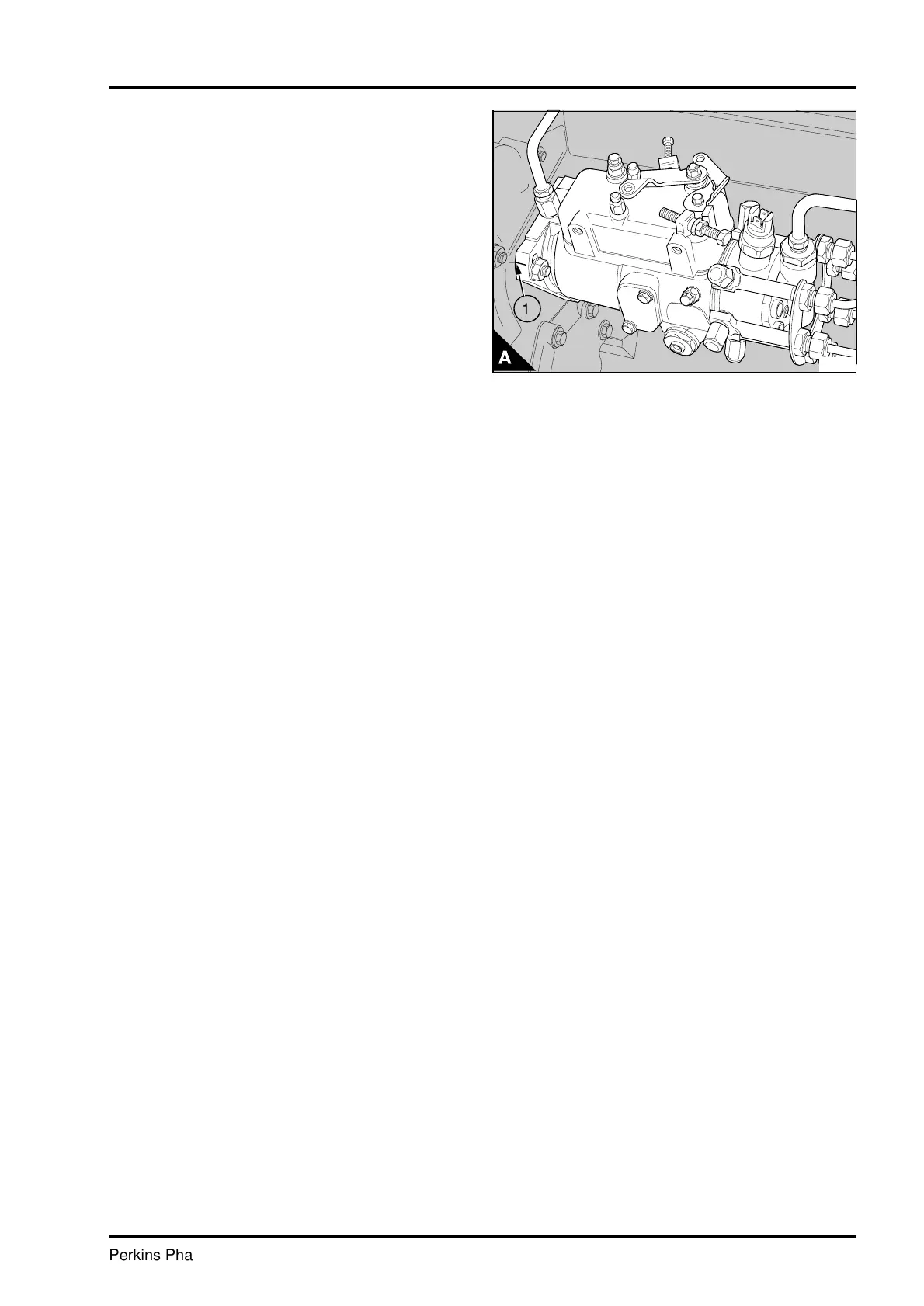

2 Align the mark on the flange of the fuel pump
with the mark on the rear face of the timing case
(A1). Fit the flange nuts of the fuel pump and the
setscrew and the nut of the support bracket.
Ensure that force is not applied to the fuel pump
when the support bracket is fitted.
3 Fit the spring washer and the nut to the drive
shaft of the fuel pump and tighten the nut to 80 Nm
(59 lbf ft) 8,2 kgf m. Fit the gear cover to the cover
of the timing case together with a new joint.
4 Fit all the pipes. Connect the stop control and
the control rod of the fuel pump.
5Eliminate air from the fuel system, operation
20C-08.
6 Operate the engine and check for leakage. With
the engine at the normal temperature of operation,
check that the idle speed is correct, operation
20C-07.
7 If a new fuel pump has been fitted, check the
maximum no load speed, operation 20C-07.
PA259
