To fit
Note: The joints are fitted without jointing
compound.

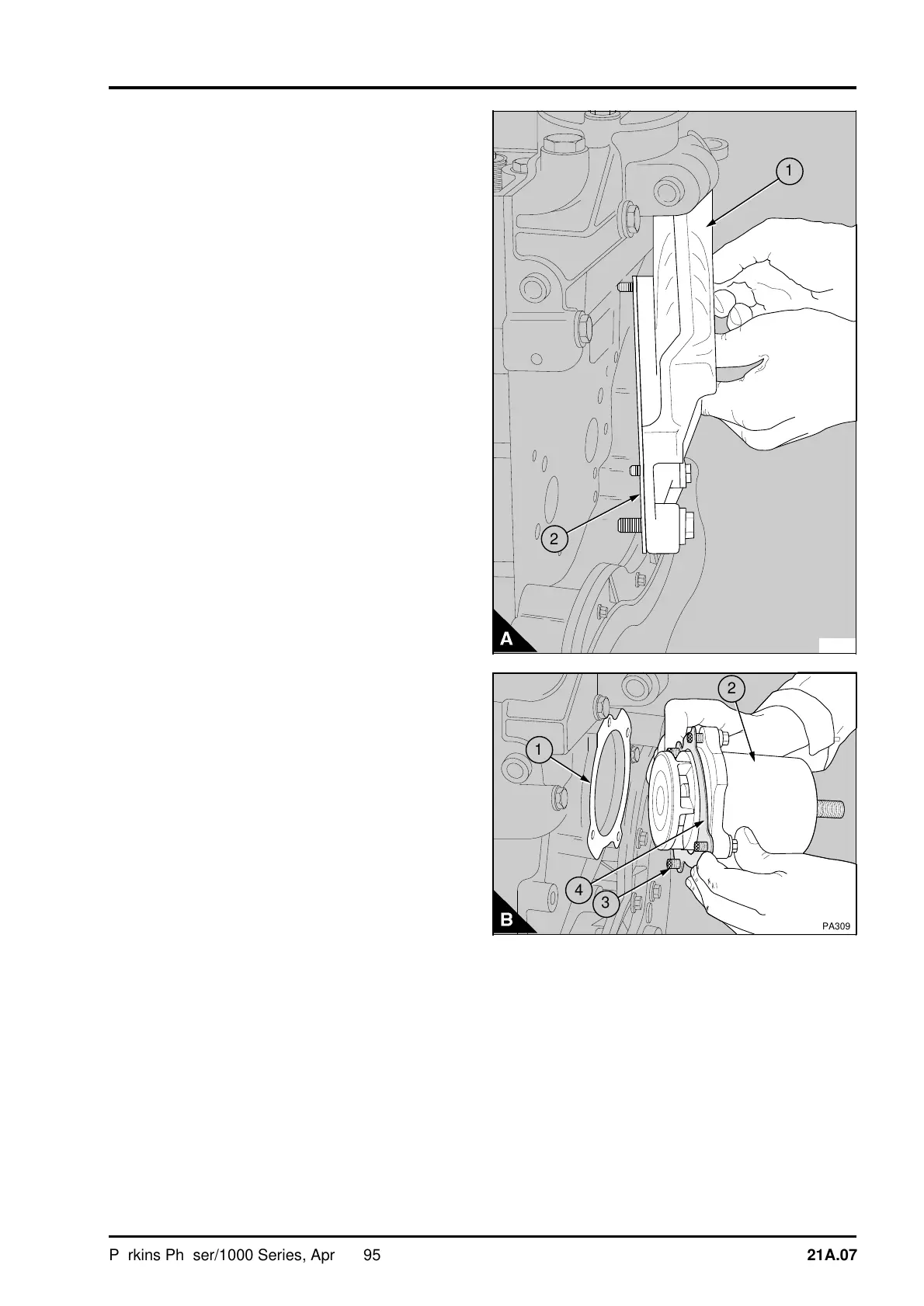

1 If the rear body of the pump (A1) was removed
from the cylinder block: Thoroughly clean the joint
faces of the cylinder block and pump rear body. Fit
a new joint (A2) between the rear body of the pump
and the cylinder block.
2 Fit the rear body of the pump and the joint to the
cylinder block. Fit the spacer and adjustment
linkage for the alternator and tighten the M10
setscrews to 44 Nm (33 lbf ft) 4,5 kgf m and the
M12 setscrews to 75 Nm (55 lbf ft) 7,6 kgf m.
3 Thoroughly clean the joint faces of the pump rear
body and coolant pump (B2). Fit a new joint (B4) to
the coolant the pump.
4 Fit the coolant pump and joint to the rear pump
body and tighten the four M10 setscrews (B3) to
44 Nm (33 lbf ft) 4,5 kgf m.
5 Fit the key to the keyway and put the pulley onto
the pump shaft. Put the plain washer and the spring
washer in position onto the pulley. Fit the nut and
tighten it to 82 Nm (60 lbf ft) 8,2 kgf m.
6 Connect the hoses to the coolant pump and
tighten the clips.
7Fit the fan belt, operation 23A-03.
8Fit the fan, operation 21A-07.
