21 COOLING SYSTEM
Coolant pump - belt driven
To dismantle and to assemble21A-03B
Special tool:
Standard bench press
Consumable products:
POWERPART Retainer (oil tolerant)
To dismantle

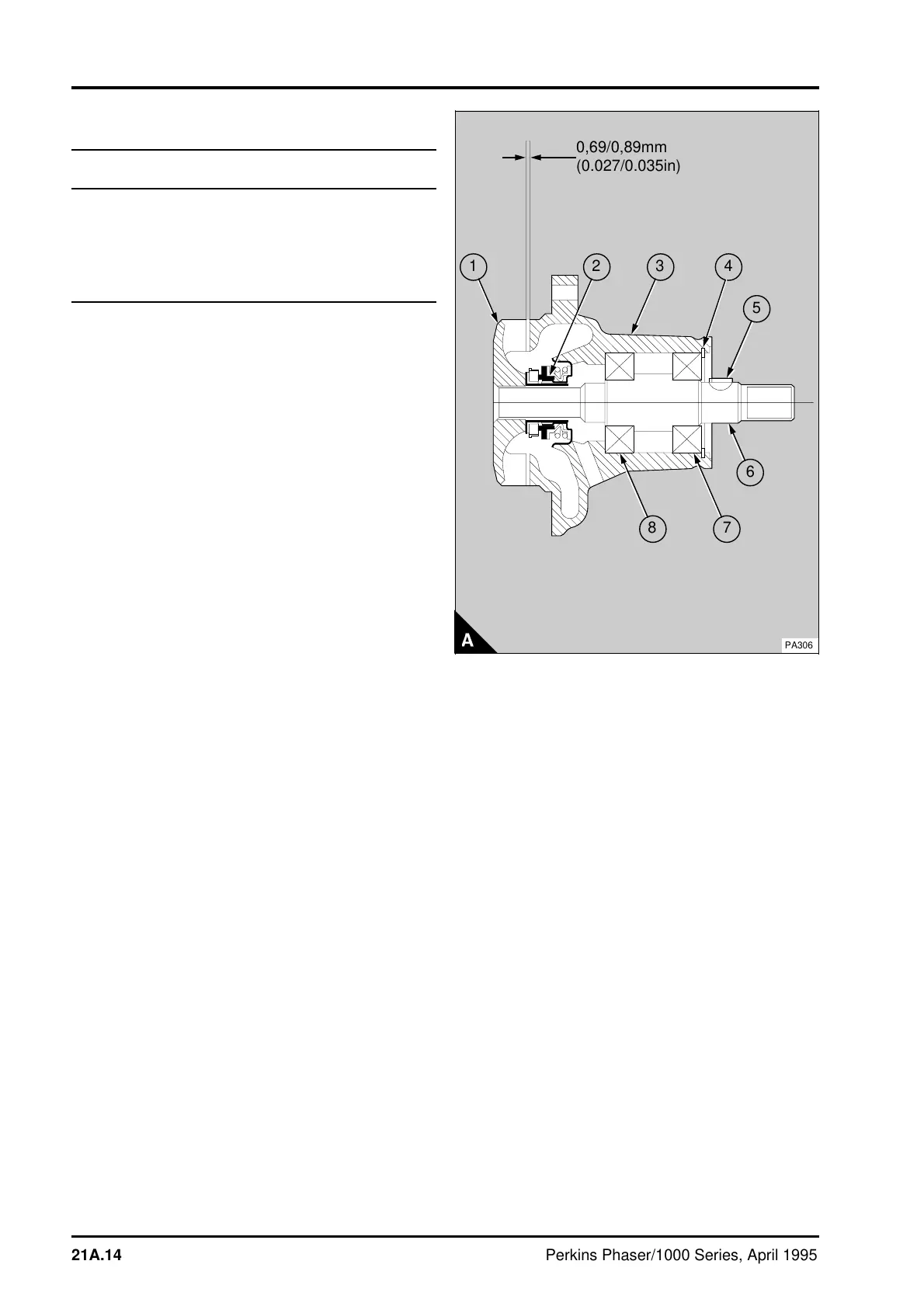

1 Remove the coolant pump (A) from the engine,
operation 21A-03A.
2 Remove the circlip (A4) for the bearing housing.
3 Support the pulley end of the pump and press
the shaft (A6) through the impeller (A1) and coolant
seal (A2). This will remove the bearing (A7).
4 Remove the impeller. Discard the coolant seal.
5 Support the pulley end of the pump and press
out the bearing (A8). Discard the bearings.
6 Clean the body of the pump in a suitable safe
cleaning fluid. Inspect the pump body for cracks.
