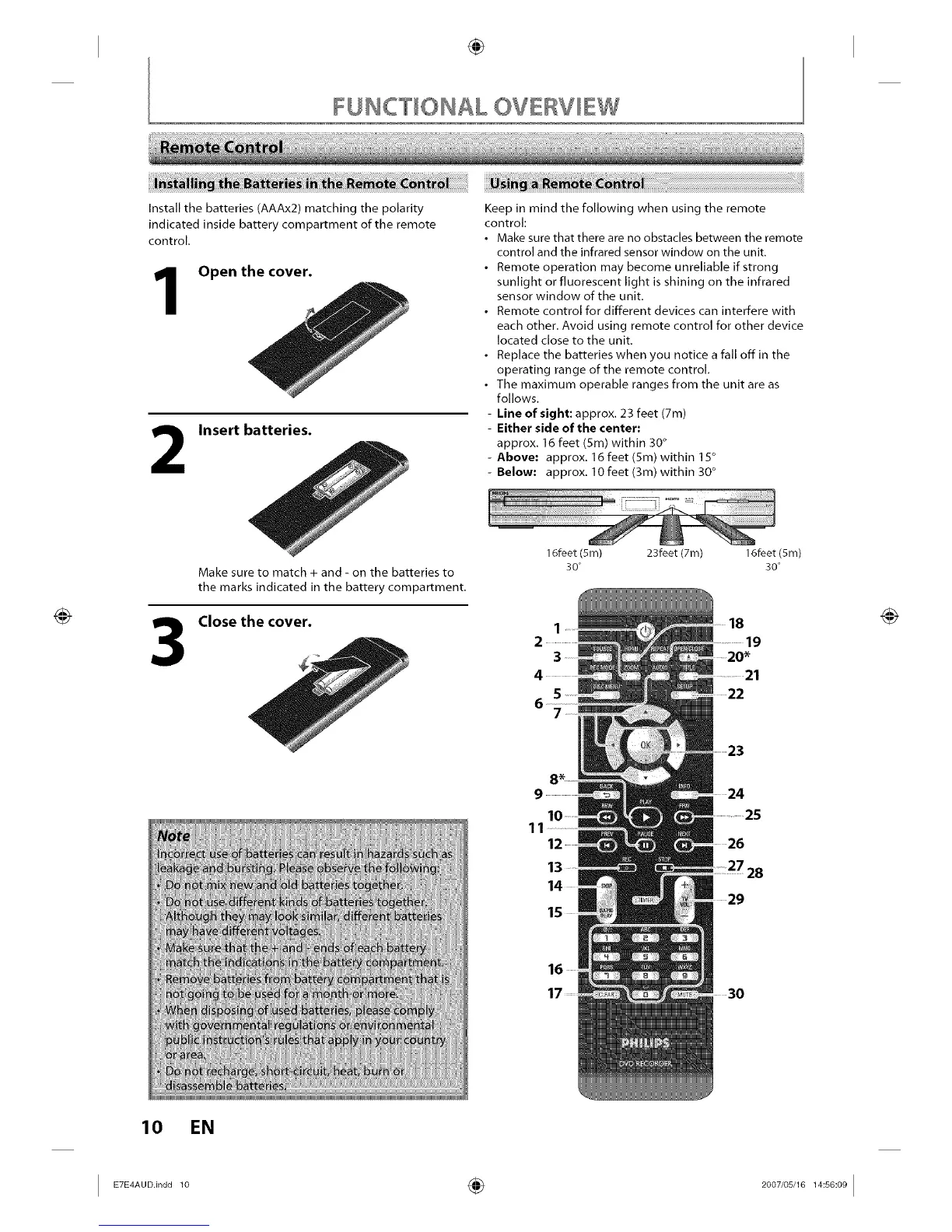

FUNCTIONAL OVIRVIE%
Install the batteries (AAAx2) matching the polarity
indicated inside battery compartment of the remote
control.
Open the cover.
Insert batteries.
3
Make sure to match + and - on the batteries to
the marks indicated in the battery compartment.
Keep in mind the following when using the remote
control:
• Make sure that there are no obstacles between the remote
control and the infrared sensor window on the unit.
• Remote operation may become unreliable if strong
sunlight or fluorescent light is shining on the infrared
sensor window of the unit.
• Remote control for different devices can interfere with
each other. Avoid using remote control for other device
located close to the unit,
• Replace the batteries when you notice a fall off in the
operating range of the remote control.
• The maximum operable ranges from the unit are as
follows,
- Line of sight: approx. 23 feet (7m)
- Either side of the center:
approx. 16 feet (5m) within 30 °
- Above: approx. 16 feet (5m) within 15 °
- Below: approx. 10 feet (3m) within 30 °
16feet (5m) 23feet (7m) 16feet (5m)
30 + 30 +
Close the cover. ] 18
2 19
21
11
28
10 EN
I ÷ I
