Phoenix Contact AXC F 1050 User Manual

AXC F 1050
108 / 140
PHOENIX CONTACT 107709_en_00
9.3.2 “Diagnostics” area
In this area, you will find diagnostic information on the controller and the Axioline F local bus
devices.
9.3.2.1 “Controller” page
On the “Controller” page, you will find a brief description of the current LED indicators of the
controller during the runtime. If there is an error in the controller, an error code and error lo-
cation are displayed.

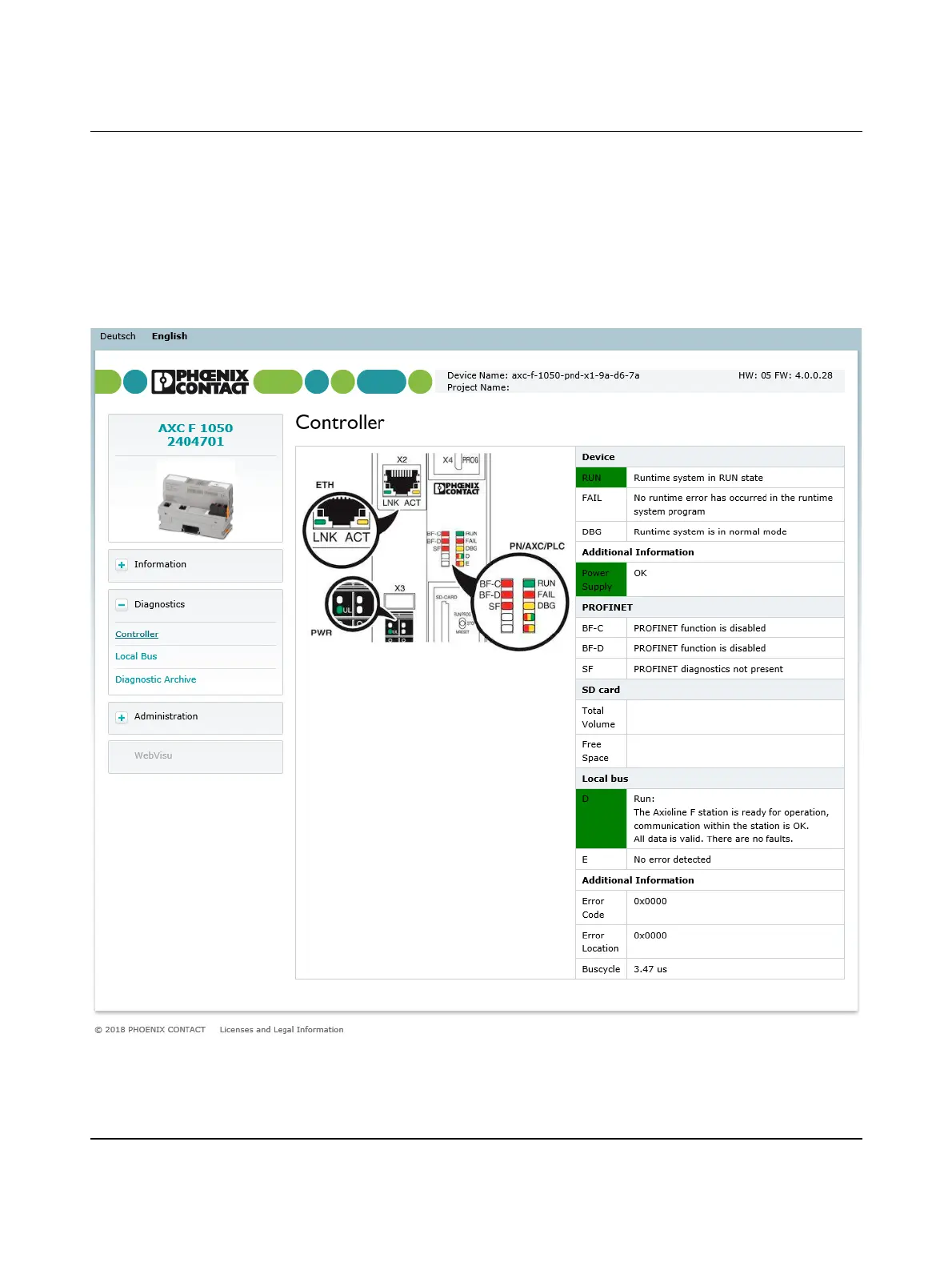

Figure 9-5 “Controller” page
