6.9.3 Adding I/O modules
Once you have added all the PROFINET devices from your bus structure to the project, you
can add the I/O modules connected to the PROFINET device. You can add I/O modules
manually or have them read in automatically.
Adding I/O modules
manually
To add I/O modules manually, proceed as follows:
• Double-click in the “PLANT” area on the PROFINET device whose I/O modules you
wish to add.
The editor group of the selected PROFINET device opens; “axf-f-bk-pn-1” in the example.
• Select the “Module List” editor.
• Select “Select type here” in the first row in the “Module List” editor.
The role picker opens. Only the elements from the “COMPONENTS” area that you can ac-
tually use are displayed in the role picker.

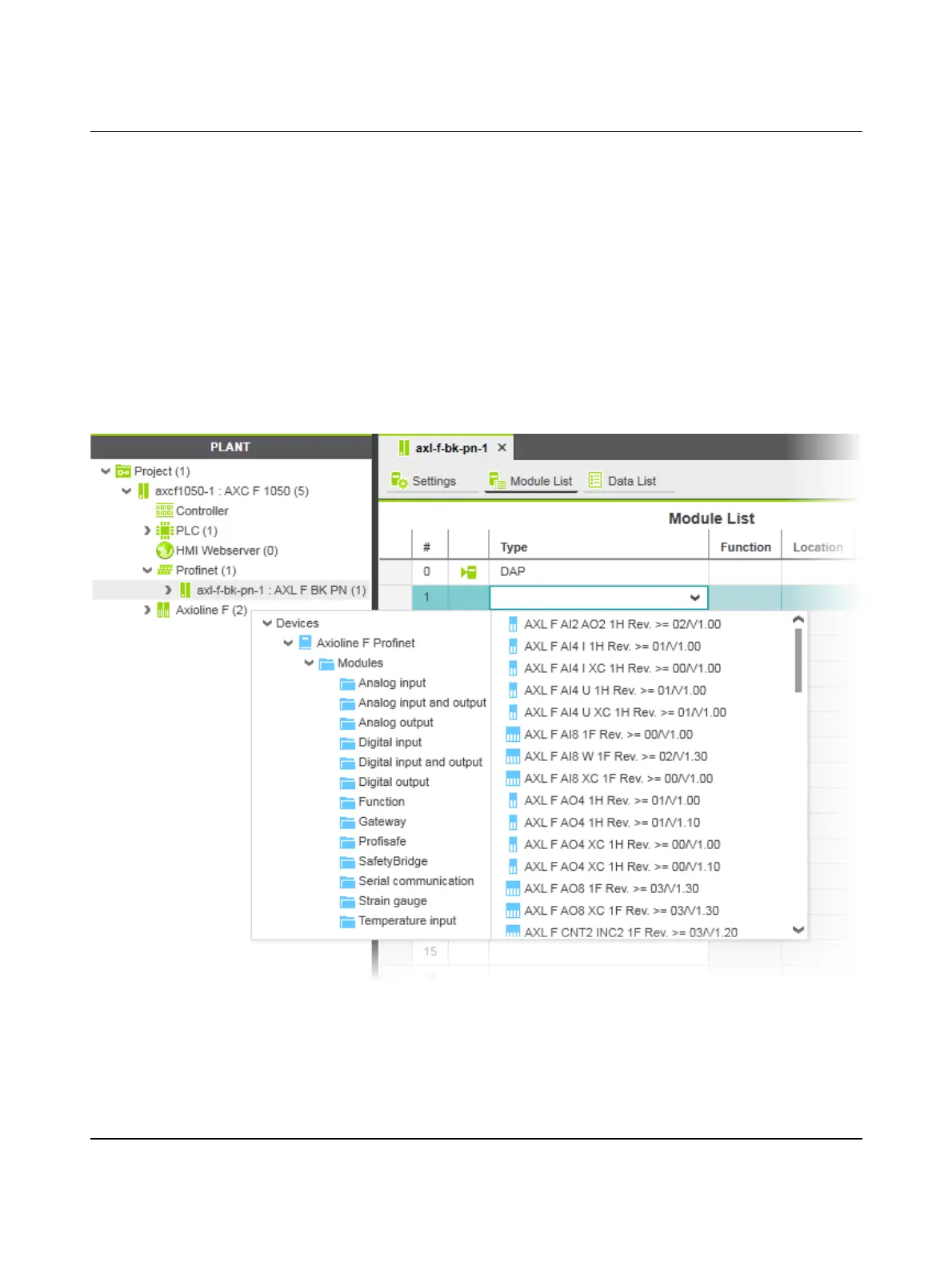

Figure 6-18 Role picker for selecting I/O modules
• Select the relevant I/O module in the role picker.
To Next Page
