• In order to assign a process data item to a variable, click on “Select Process Datum
here” in the “Process Datum” column.
The role picker opens. Only the process data that you can actually assign to the respective
variable is displayed in the role picker.

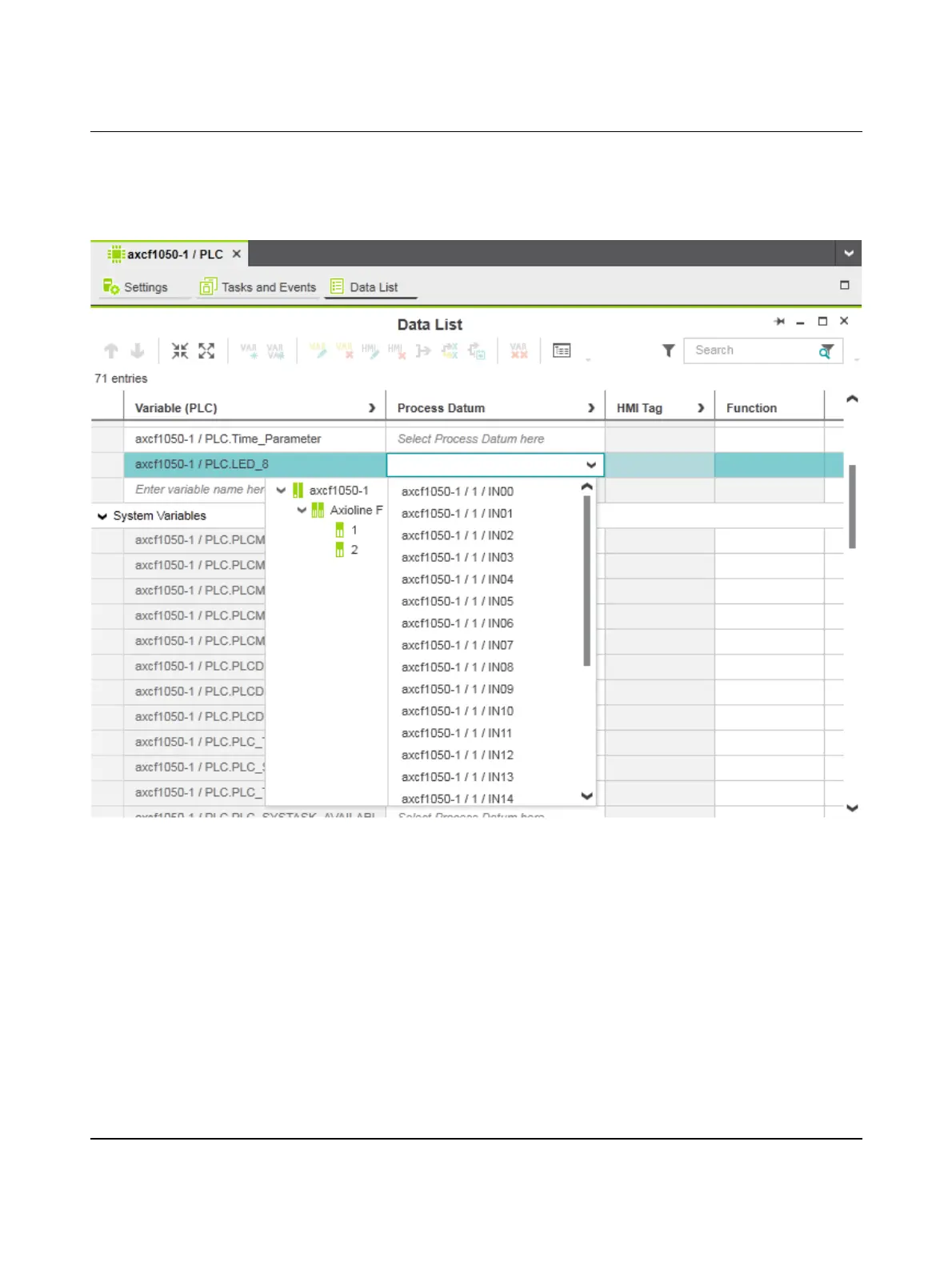

Figure 6-33 Role picker for selecting process data
• In the role picker, select the process data item that you want to assign to the respective
variable.
The process data item is assigned to the variable.
• Proceed as described for more variables.
