Mounting hardware
107709_en_00
PHOENIX CONTACT
41 / 140
4.5
Inserting the SD card
The controller has an SD card holder with push/push technology.
•
Gently push the SD card into the SD card holder until it engages with a click in the SD
card holder.

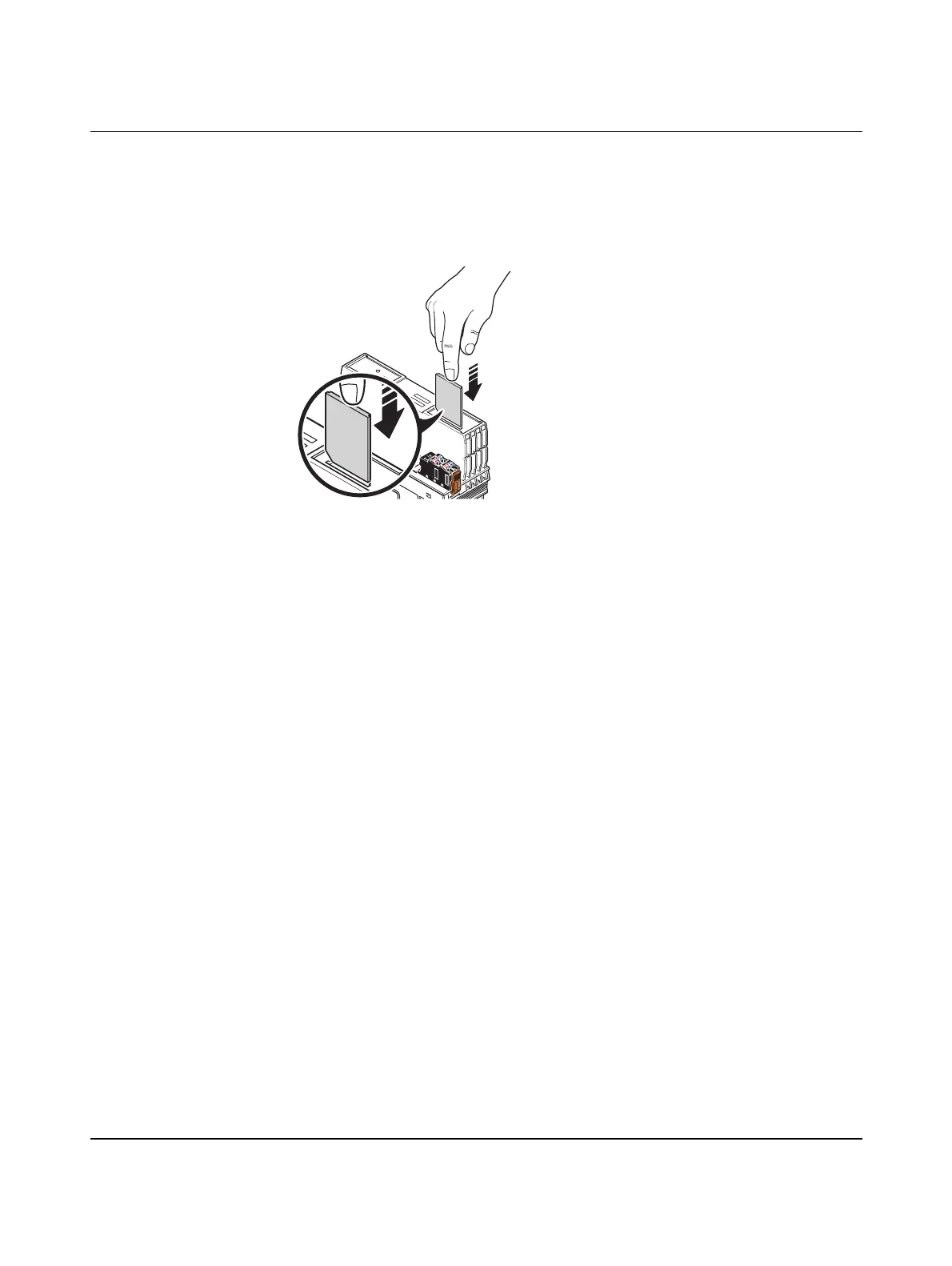

Figure 4-6
Inserting the SD card
8482A021
>Click<
40
