3 Description of the AXC F 1050
3.1 Hardware and software requirements
3.2 General description of the controller
The AXC F 1050 is a modular small-scale controller with integrated Ethernet and Axioline F
local bus connection.
The controller consists of an electronics module (1) and a bus base module (2).

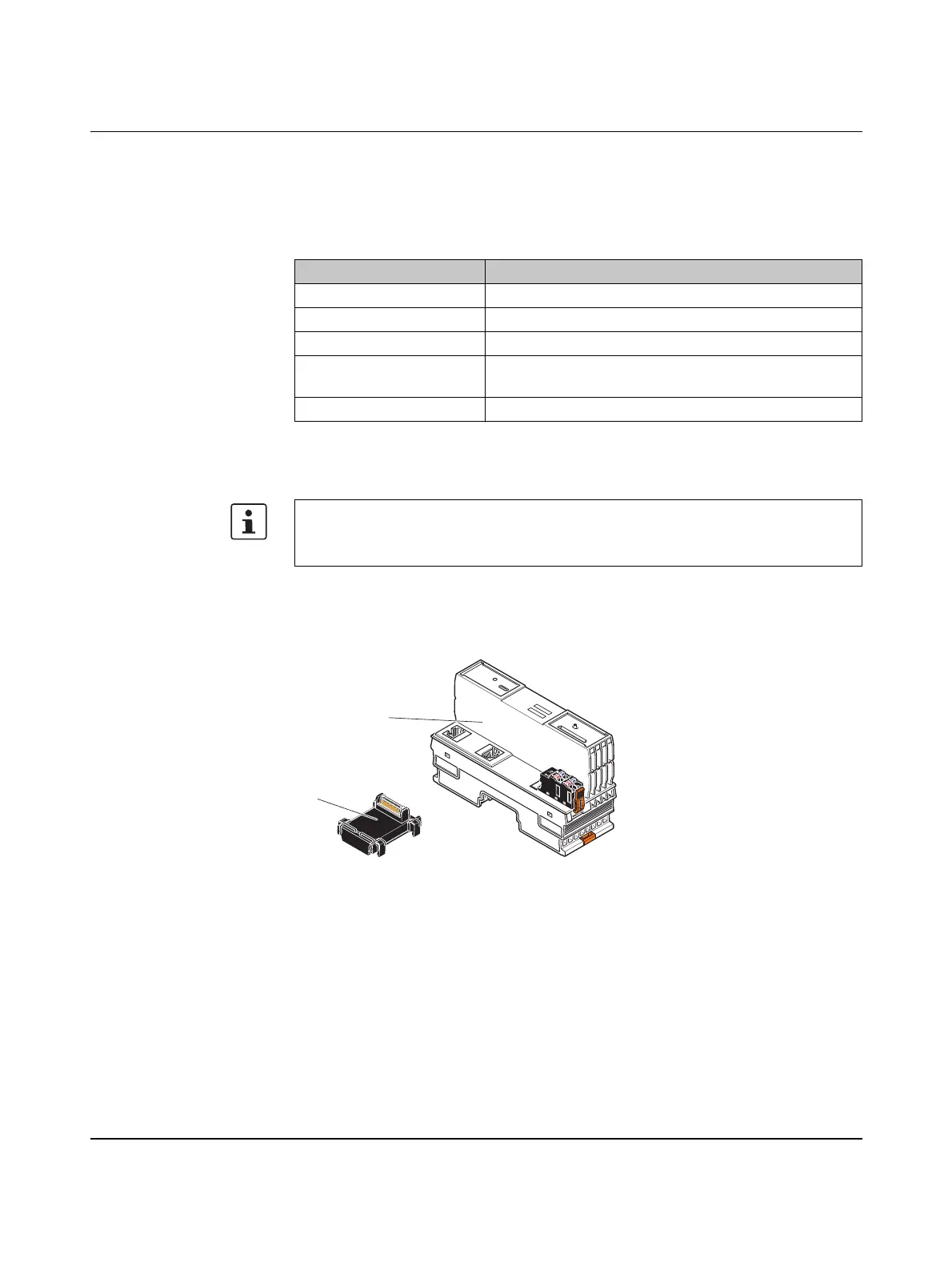

Figure 3-1 Components of the controller
Axioline F station An Axioline F station is created by connecting Axioline F modules to the controller side-by-
side. The Axioline F local bus (referred to as local bus in this document) is implemented by
arranging bus base modules side-by-side.
Programming The controller is configured and programmed using the PC Worx Engineer automation soft-
ware. The powerful processor can be programmed in all five IEC 61131 programming lan-
guages and ensures quick control task processing.
Integrated Ethernet inter-
faces
The controller features two Ethernet interfaces for TCP/IP/UDP/IP communication within the
Ethernet network.
Hardware/software Description
Controller AXC F 1050
SD card See Section “Ordering data” on page 129
Ethernet cable Ethernet cable for connecting the controller to a PC
USB cable USB cable for connecting the controller to a PC, see Sec-
tion “Ordering data” on page 129
PC Worx Engineer ≥ 7.2.2
The AXC F 1050 controller is approved for use in Zone 2 potentially explosive areas.
• Observe the notes in Section “Notes on using the AXC F 1050 controller in potentially
explosive areas” on page 11.
