3.7 Reset button (concealed)

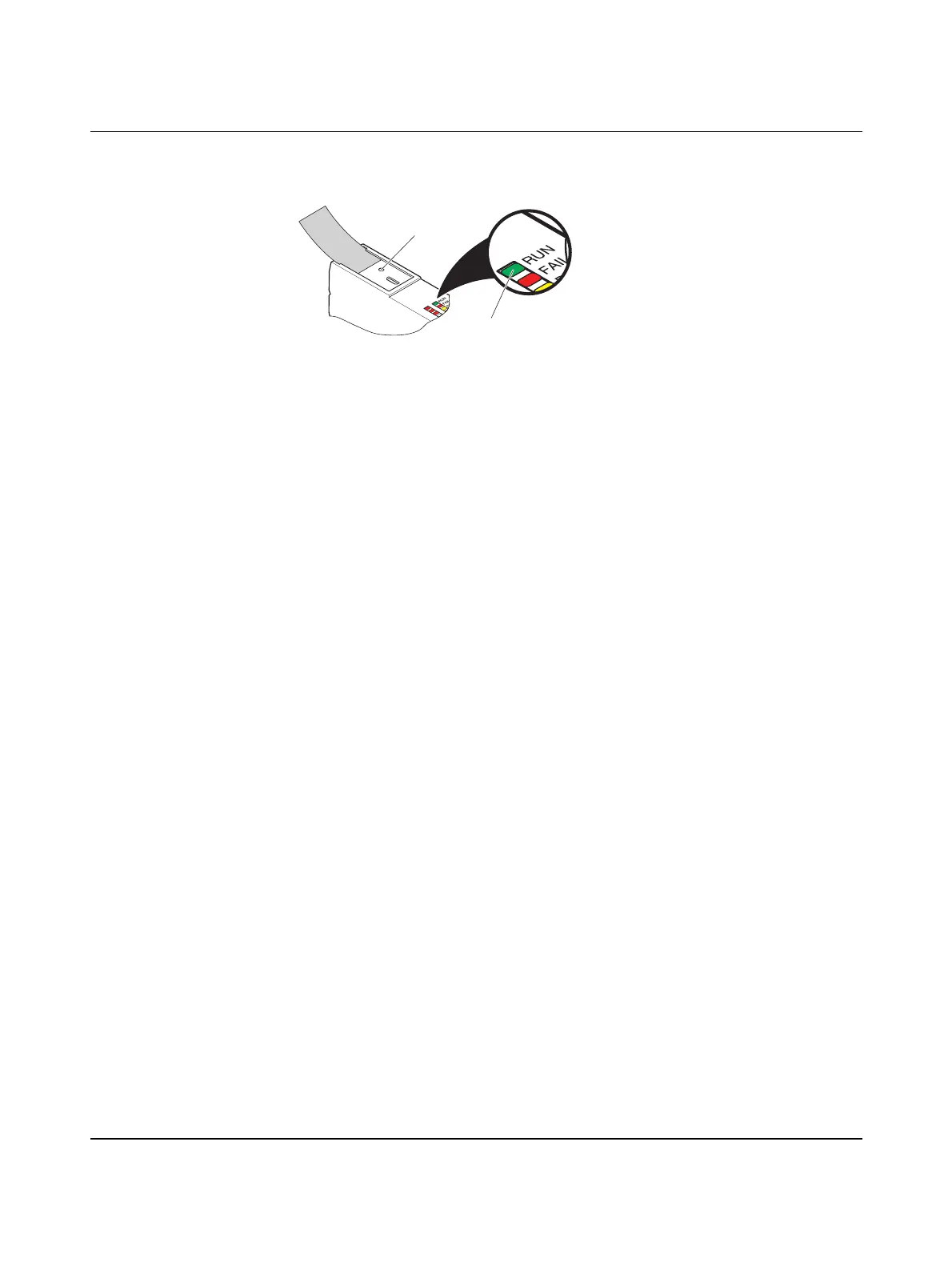

Figure 3-9 Reset button (1, concealed)
The reset button on the controller can only be operated with a pointed object, such as a pin,
and is therefore protected against accidental activation.
Restarting the controller • During operation, briefly press the reset button.
The controller is restarted.
Resetting the controller to
the default settings
• Switch off the supply voltage of the controller.
• After the LEDs have gone out, press the reset button.
• Hold the reset button down and switch the supply voltage on. Release the reset button
only after the RUN LED flashes quickly (item 2 in Figure 3-9).
The default settings are restored. The DBG LED flashes. The process has been completed
once the RUN LED flashes slowly. The controller has been successfully initialized and reset
to its default settings. The control function is in the READY/STOP state; a program is not
being processed. This process may take around 90 seconds.
