Phoenix Contact AXC F 1050 User Manual

AXC F 1050
40 / 140
PHOENIX CONTACT 107709_en_00
4.4 Mounting the controller
• Disconnect the Axioline F station from the power supply.
• Mount the left end bracket on the Axioline F station.
Mounting bus base
modules
• First install the bus base module for the controller and then all bus base modules nec-
essary for the Axioline F station on the DIN rail (A in Figure 4-4).
• Push each subsequent bus base module into the connection of the previous bus base
module (B in Figure 4-4).

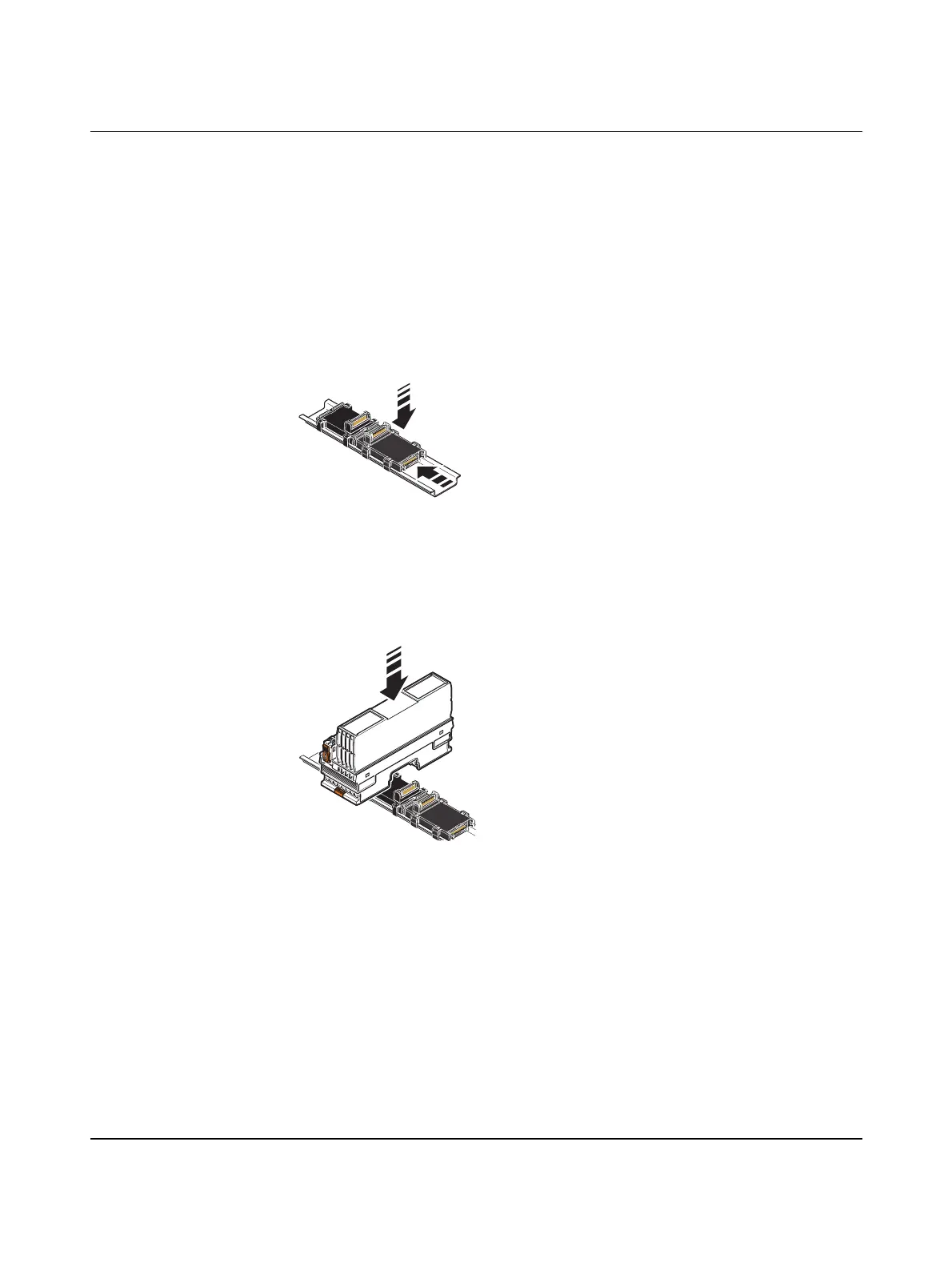

Figure 4-4 Mounting the bus base modules
Snapping the controller
into place
• Push the controller vertically on the first bus base module until it snaps into place audi-
bly.
• Make sure that the device plug for the bus base connection is situated above the cor-
responding socket on the bus base module.
Figure 4-5 Snapping the controller into place
A
B
