AXC F 1050
64 / 140
PHOENIX CONTACT 107709_en_00
The I/O module is automatically added and shown in the “PLANT” area under the “Profinet”
node for the respective PROFINET device (see Figure 6-19).
• Proceed as described above to add more I/O modules.

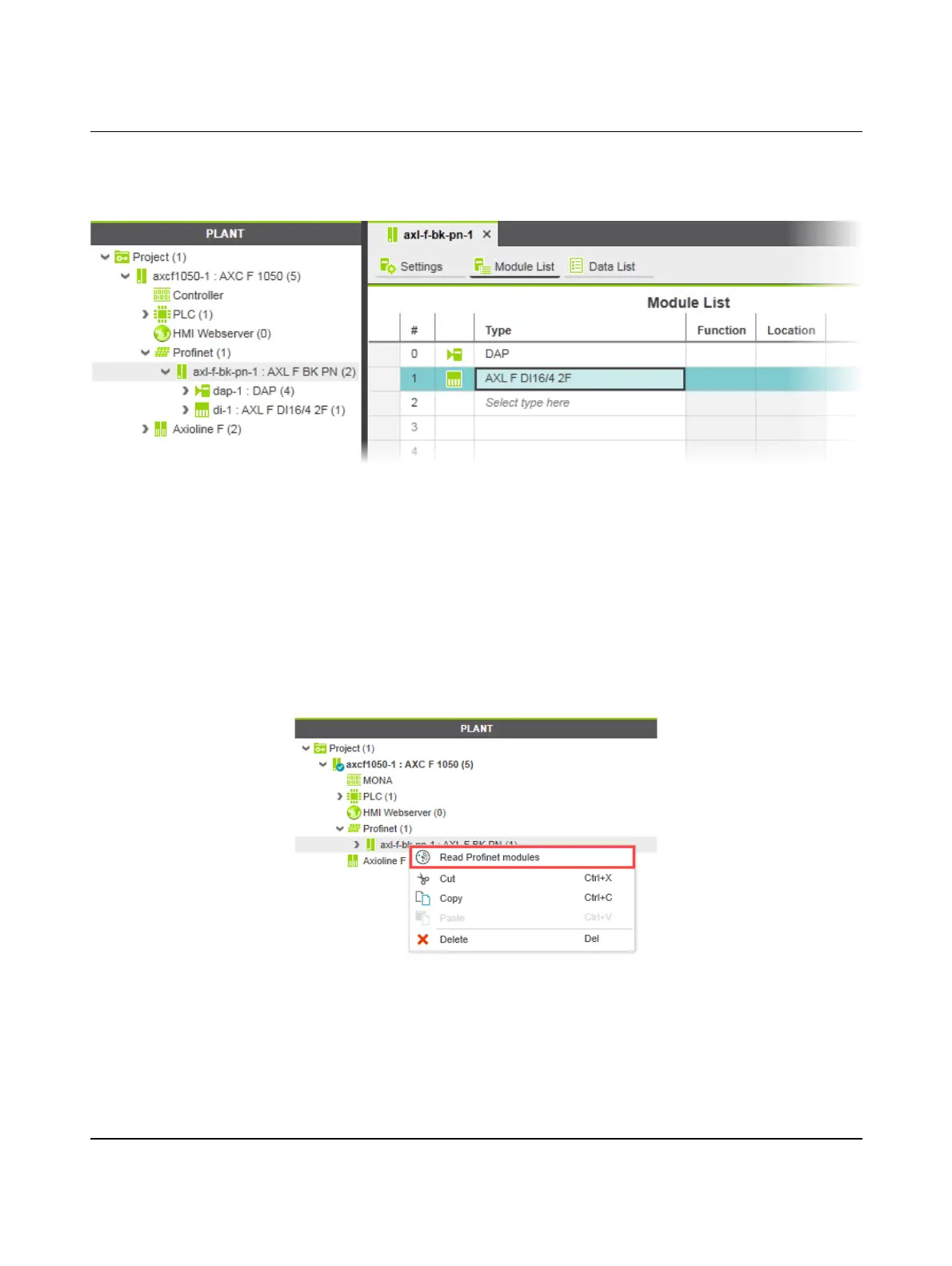

Figure 6-19 I/O modules of a PROFINET device in the “PLANT” area and in the module
list
Reading in I/O modules
automatically
The following preconditions must be satisfied before you can read in the I/O modules of a
PROFINET device automatically:
– The controller has valid IP settings (see Section 6.5).
– The PROFINET device has valid IP settings and is connected with PC Worx Engineer
(see Section 6.9.2).
To read in the I/O modules of a PROFINET device automatically, proceed as follows:
• Right-click in the “PLANT” area beneath the “Profinet” node on the PROFINET device
whose I/O modules you wish to read in.
• Select the “Read Profinet modules” entry in the context menu.
Figure 6-20 Reading in I/O modules of a PROFINET device automatically
The I/O modules connected to the PROFINET device are now read in automatically.
