Phoenix Contact AXC F 1050 User Manual

AXC F 1050
122 / 140
PHOENIX CONTACT 107709_en_00
10.4 Removing the SD card
• Lightly push the SD card far enough into the SD card holder until the snap-in mecha-
nism releases the SD card and partially ejects the SD card from the SD card holder.
• Remove the SD card.

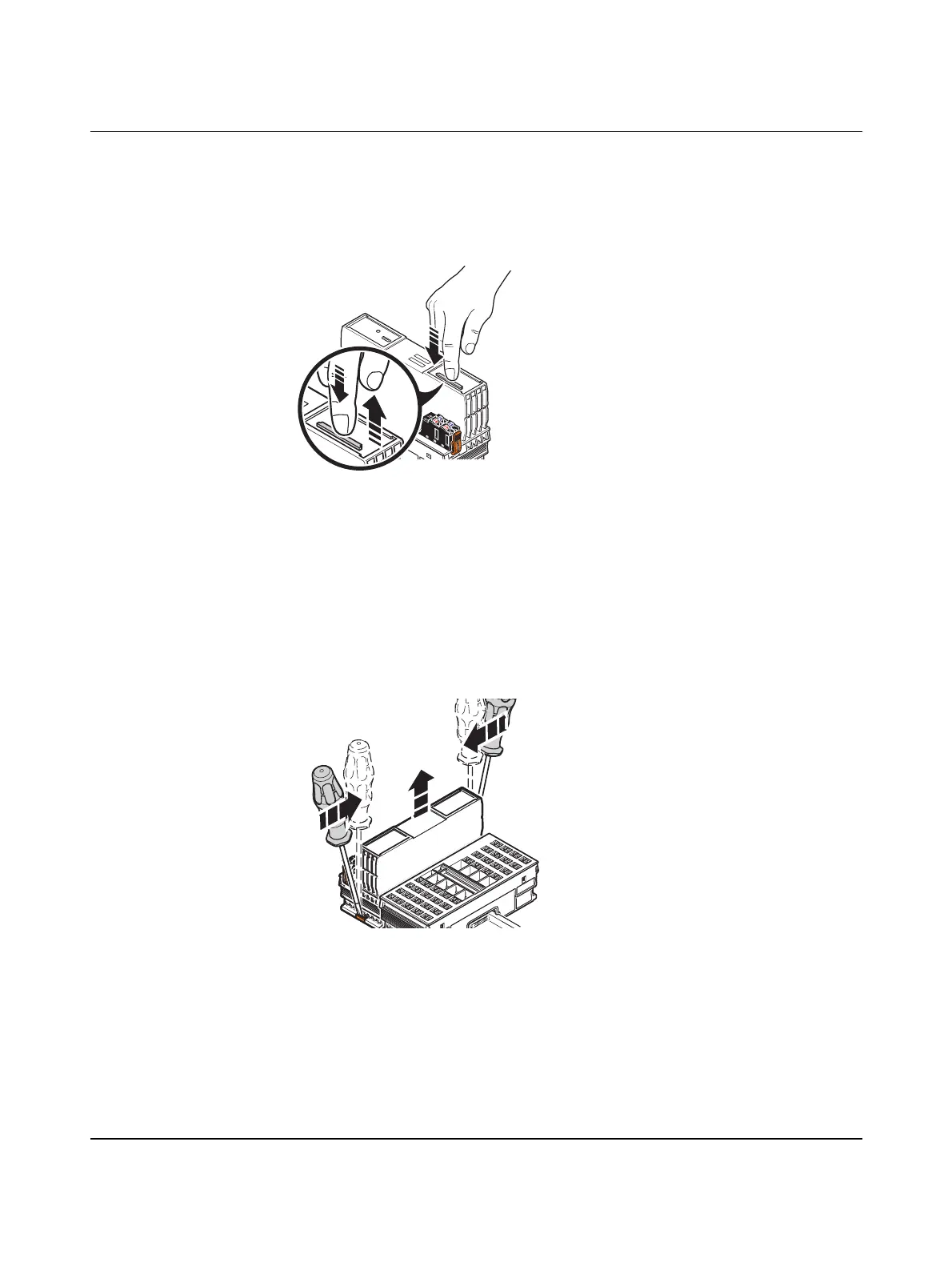

Figure 10-4 Removing the SD card
10.5 Removing the controller
• Insert a suitable tool (e.g., bladed screwdriver) into the upper and lower snap-in mech-
anisms (base latches) of the controller one after the other and release them (A in
Figure 10-5).
The base latches are latched in place in the open position.
• Remove the controller keeping it perpendicular to the DIN rail (B in Figure 10-5).
Figure 10-5 Removing the controller
8482A022
>Click<
8482A017
A
A
B
