Connecting and wiring hardware
107709_en_00 PHOENIX CONTACT 45 / 140
5.2.2 Connecting the power supply
Observe the notes in Section 3.11 when assembling the connector for the supply voltage.
• Strip 8 mm off the cable. If necessary, fit a ferrule to the cable.
Solid conductor /
ferrule
• Insert the cable into the terminal point. It is clamped into place automatically.

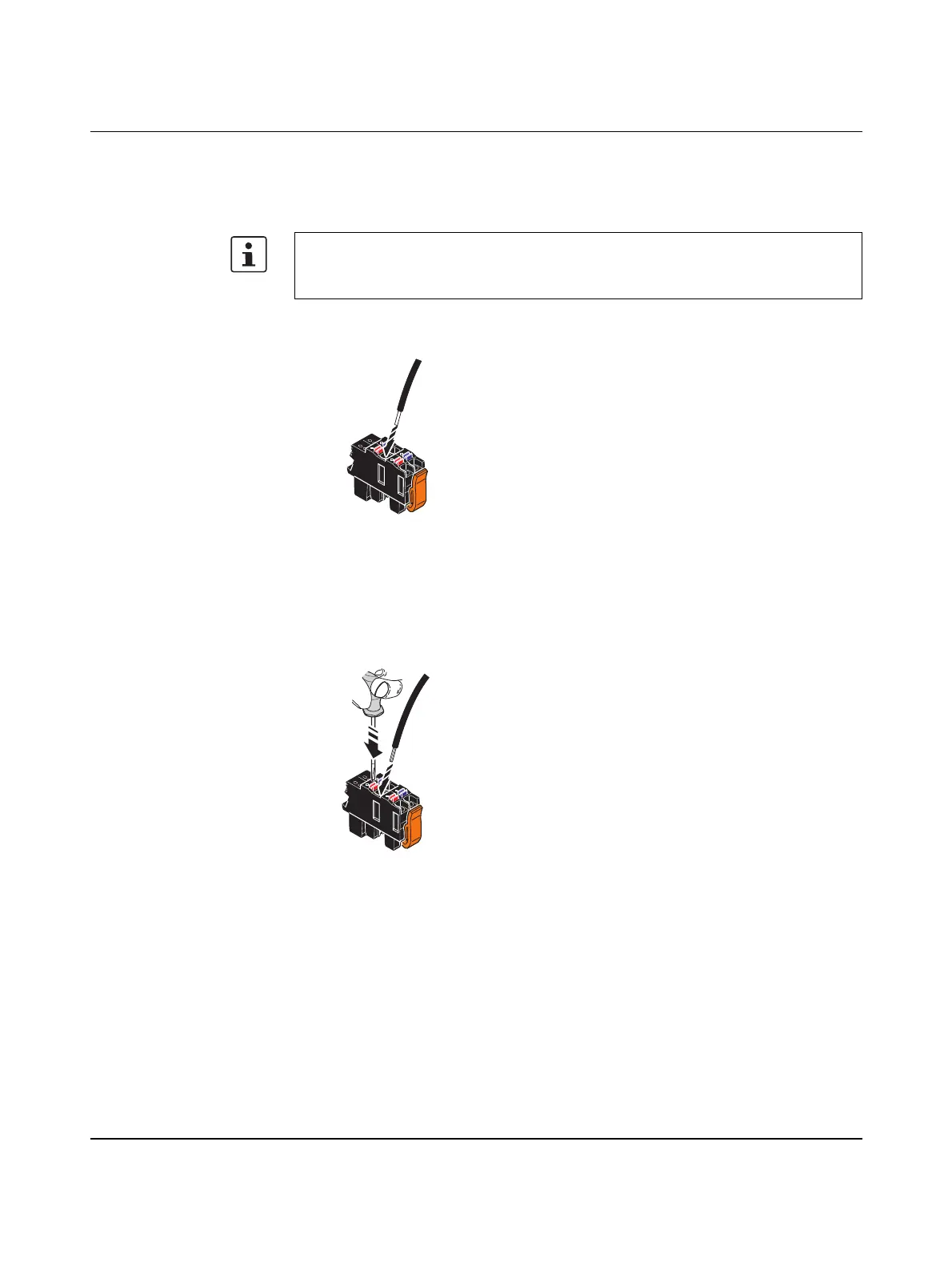

Figure 5-3 Connecting a solid cable
Stranded conductor • Open the spring by pressing on the spring lever with a screwdriver (A in Figure 5-4).
• Insert the conductor into the terminal point (B in Figure 5-4).
• Remove the screwdriver to fasten the cable (recommended: bladed screwdriver, blade
width of 2.5 mm (e.g. SZS 0,4x2,5 VDE, Order No. 1205037)
Figure 5-4 Connecting a stranded conductor
If you are using ferrules, use them in accordance with the specifications in the
UM EN AXL F SYS INST user manual.
• Ensure that the ferrules are correctly crimped.
A
B
