Web-based management (WBM)
107709_en_00 PHOENIX CONTACT 113 / 140
9.3.2.3 “Diagnostic Archive” page
All diagnostic messages and operating states of the controller are displayed on the “Diag-
nostic Archive” page.

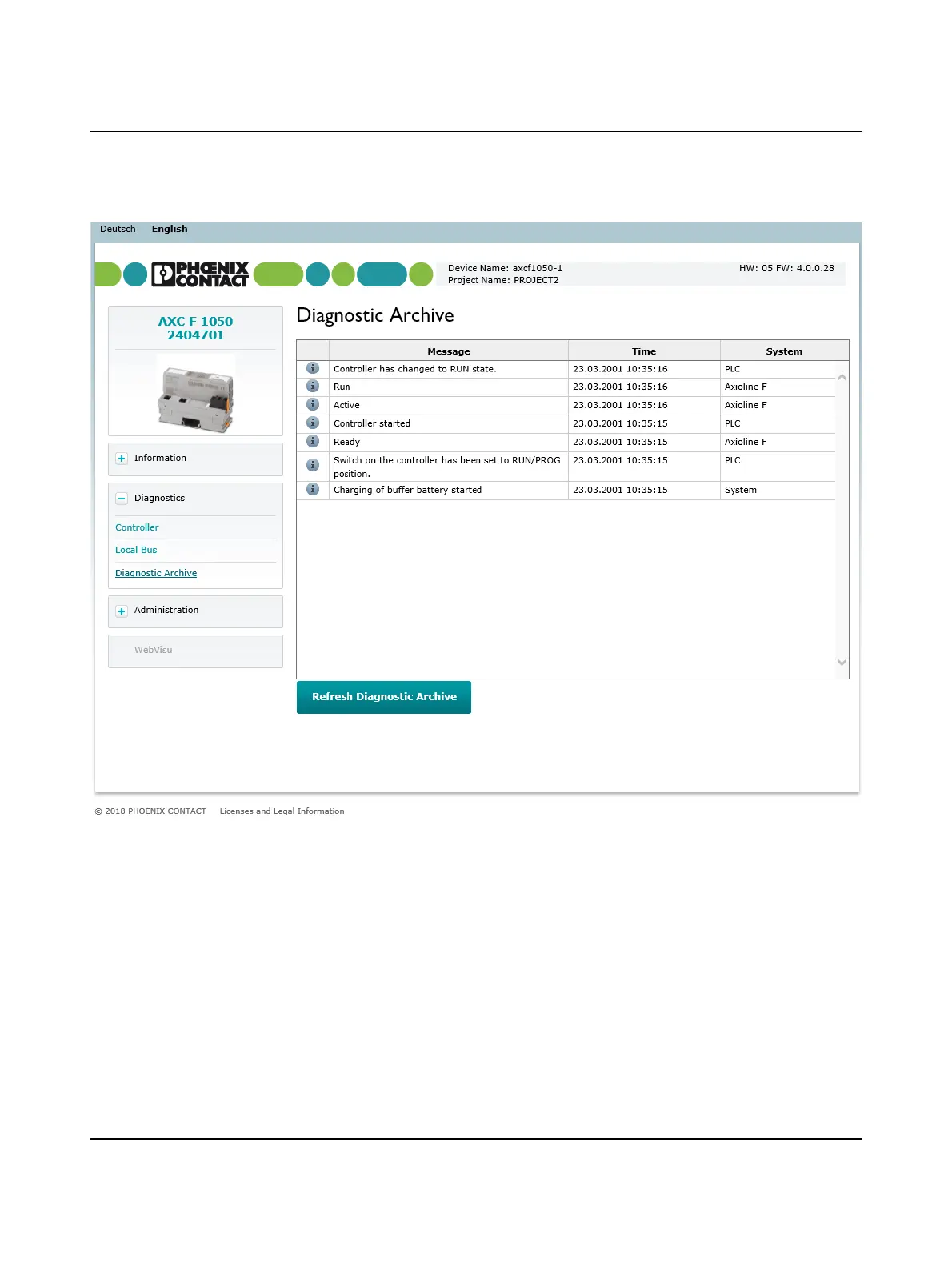

Figure 9-10 “Diagnostic Archive” page
Click the “Refresh Diagnostic Archive” button to refresh the display.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Phoenix Contact AXC F 1050 and is the answer not in the manual?

Phoenix Contact AXC F 1050 Specifications

General IconGeneral
Clock Frequency1.75 GHz
Flash Memory4 GB
Ethernet Ports2
Power Supply24 V DC
Weight500 g
Degree of protectionIP20
Vibration resistance according to IEC 60068-2-65 g
Shock according to IEC 60068-2-2715 g
Operating systemLinux
Number of PLC cores2
Primary power supply24 V DC
Number of local INTERBUS modules0
Installation altitudeup to 2000 m
TypeController
RAM2 GB
Operating Temperature-20 °C to +60 °C
Ambient temperature (operation)-20 °C to +60 °C
Ambient temperature (storage/transport)-40 °C to +85 °C
Permissible humidity (operation)5 to 95 %
Supply voltage range19.2 V to 28.8 V DC
Typical current consumption250 mA (at 24 V DC)
Number of local PROFINET RT devices0
Number of local Modbus/TCP devices0
Number of local OPC UA devices0
Number of local raw/socket devices0
