CAPTAIN 8
Hunter-Pro Series & Captain 8 Installation Guide
4. CAPTAIN 8
Captain 8 is a new 8-16 zone improved model of PIMA Captain 6 intruder alarm system.
Captain 8 User and Installer menus were adopted from PIMA successful Hunter-Pro Series systems.

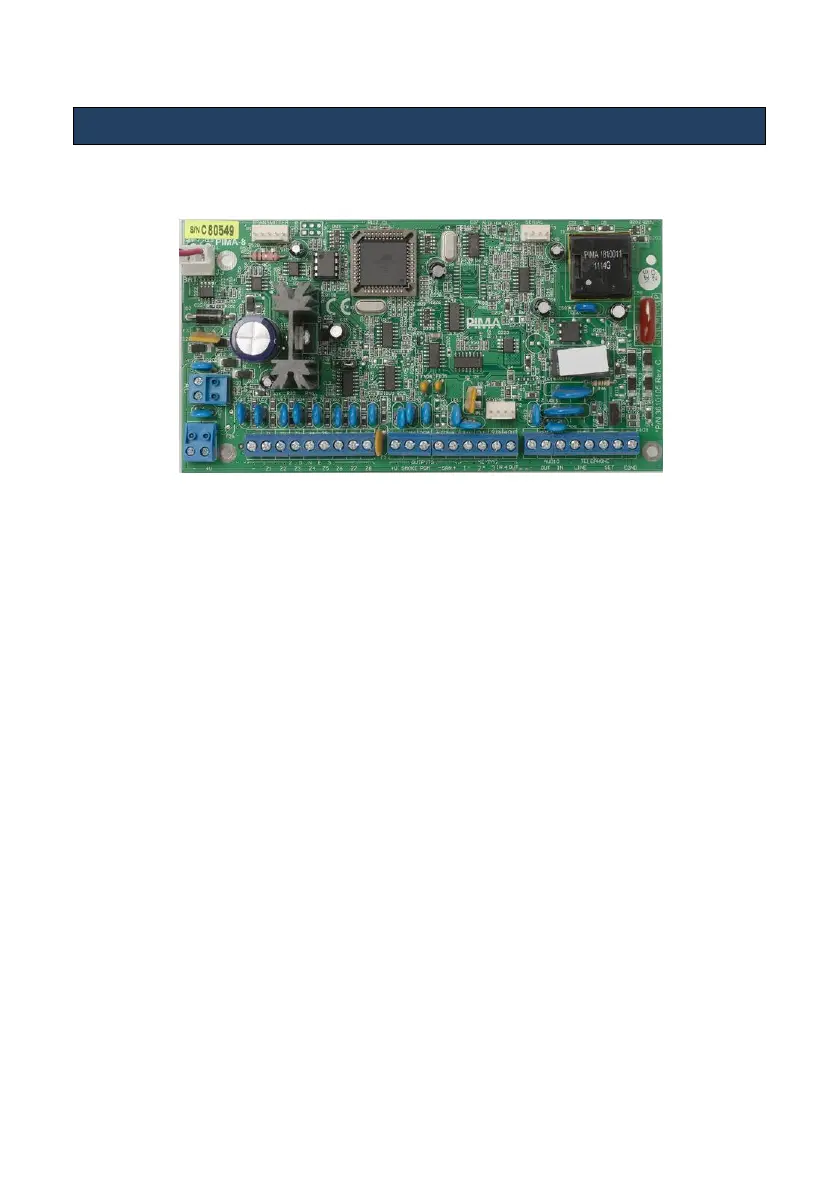

Figure 4. Captain 8 PCB (PIMA-8)
4.1 Main features
 Hybrid system – hardwired and wireless expander (I/O-WN) zones;
 The 8 onboard zones can be expanded to 16 by either:
 Zone doubling;
 Adding the I/O-WN;
 Adding the I/O-8N 8 zone remote expander;
 Users: up to 30;
 Partitions: up to 4;
 Addressable keypads: up 8;
 RS-232 channel;
 PSTN DC monitoring;
 Available extansions:
 SMS-100 communicator;
 net4pro network card;
 RFID tags (via the RD-200);
 I/O-R relay expander;
