HUNTER-PRO Series
25
Hunter-Pro Series & Captain 8 Installation Guide
3.4 KEY input and Key zones
Connect the key switch/key fob between the KEY terminal and GND (-).
The KEY terminal serves as an input for key switches and key fobs. In addition, starting
system version 6.23, three new zone types were added:
1. “KeySw Arm” activating a key switch will arm the system to full mode;
2. “KeySw Home 1” / “KeySw Home 2” activating a key switch will arm the system to
“Home 1or “Home 2 modes.
These zone types preserve most of the KEY input functions. See details ahead.
As any zone type, the Key zone types can be allocated per partition. The KEY terminal and the
KeySw zones can be triggered by momentary (default) or two state (toggle) keys. See section
6.8, on page 65.

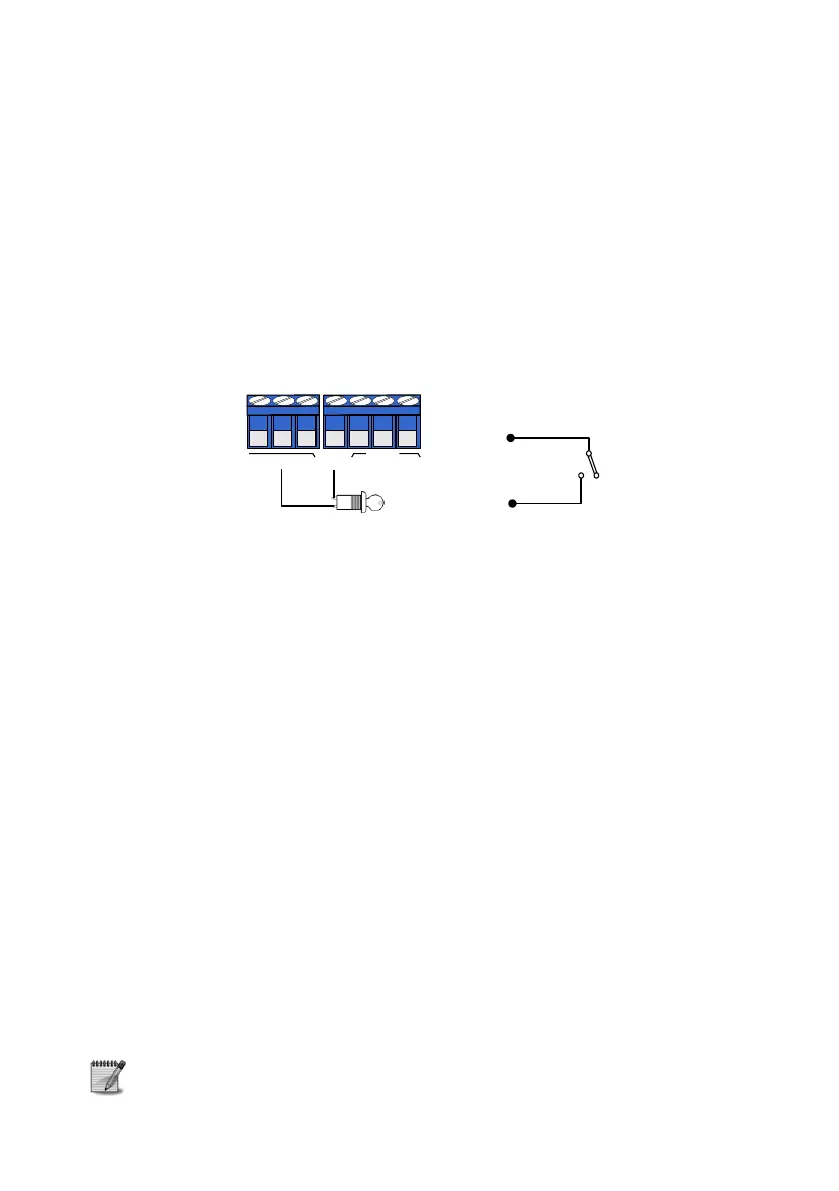

Diagram 16. Key switch wiring
3.4.1 KeySw zone types features
Can only be used for arming and only with a key switch/fob;
Can only be used for arming;
Can be hardwired (include. zone doubling) or wireless;
Triggering these zones cannot be indicated by the keypad chime;
When in test mode (soak), triggering these zones isn’t reported to the Monitoring Station;
Can be bypassed;
Can be set as Normally open/close;
Can be EOL resistor supervised;
Cannot trigger any output type;
When arming via a Keyswitch zone, the exit delay countdown is displayed only on
addressable keypads;
SMS reports on arming via a Keyswitch zone do not contain the zone name;
The log displays only the first 8 characters of Keyswitch zone names;
“Automatic zone bypassing” is not affected when arming via Keyswitch zones;
Zone sensitivity or responses do not affect Key Switch zones;
3.4.2 FSK receiver
To use FSK key fobs, connect FSK receiver to the BUS, or directly to KEYPAD terminals; see
the programming instructions in section 6.3.2, on page 48.
When connecting FSK receiver the net4pro card cannot be used.
Control Panel
Key switch
)-(
-
+
K
E
Y
-
I
n
t
S
I
R
E
N
S
E
x
t
Z
8
(-)
KEY
