24
HUNTER-PRO Series
Hunter-Pro Series & Captain 8 Installation Guide

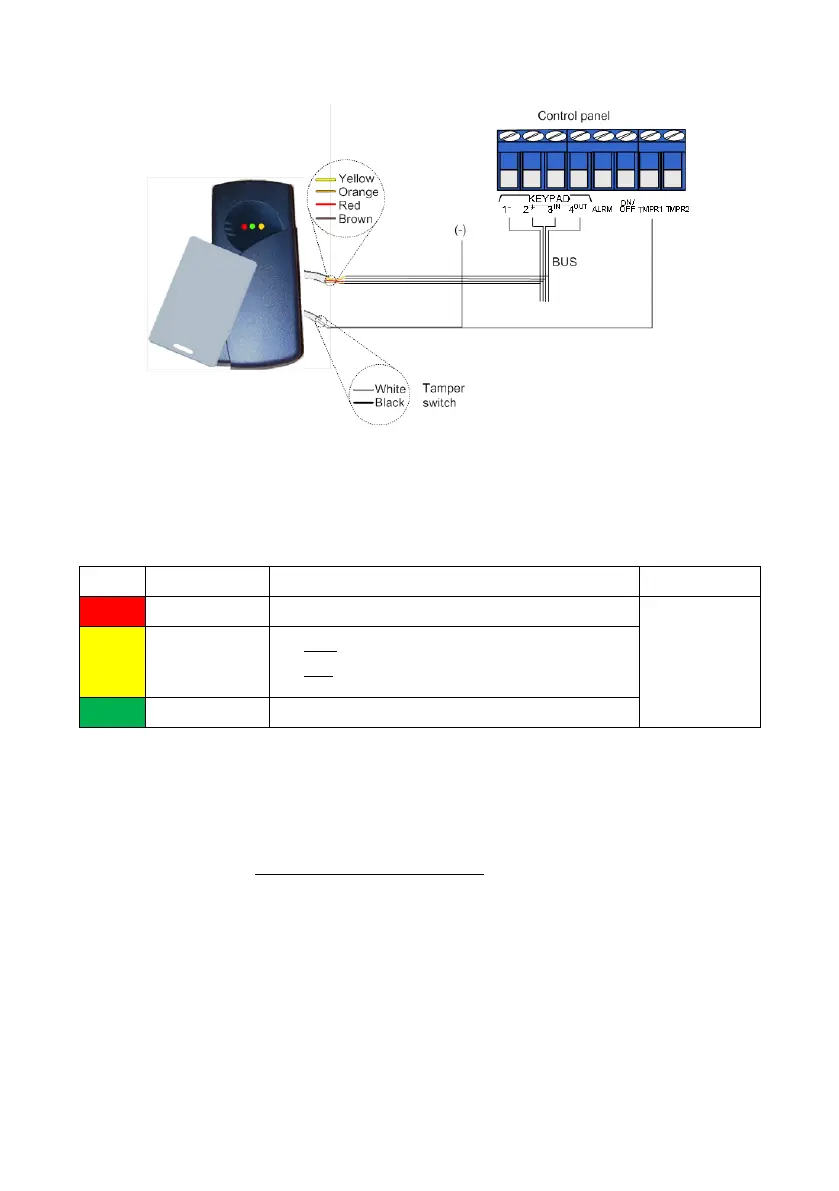

Diagram 15. RD-200 wiring
3.3.2 LED indications
The RD-200 has 3 LEDs: Red, Yellow & Green. Each LED blinks during the Exit delay time of
the arming mode it indicates on, and illuminates when the panel is armed to that mode. See
the next table for details.
LED
Arming mode
Blinking
Illuminating
Red
Full
Exit delay in progress
Armed
Yellow
“Home 1”
Slow: exit delay in progress
Fast: one or more zones are open (the panel
is disarmed)
Green
“Home 2”
Exit delay in progress
3.3.3 Specs
Operating voltage: 12V
Current consumption: 18ma~25ma
RFID standard: EM-4100
3.3.3.1 Environmental requirements
Humidity: 75%, relative, non-condensed;
Temperature: ~ -10
+45
o
C
