HUNTER-PRO Series
21

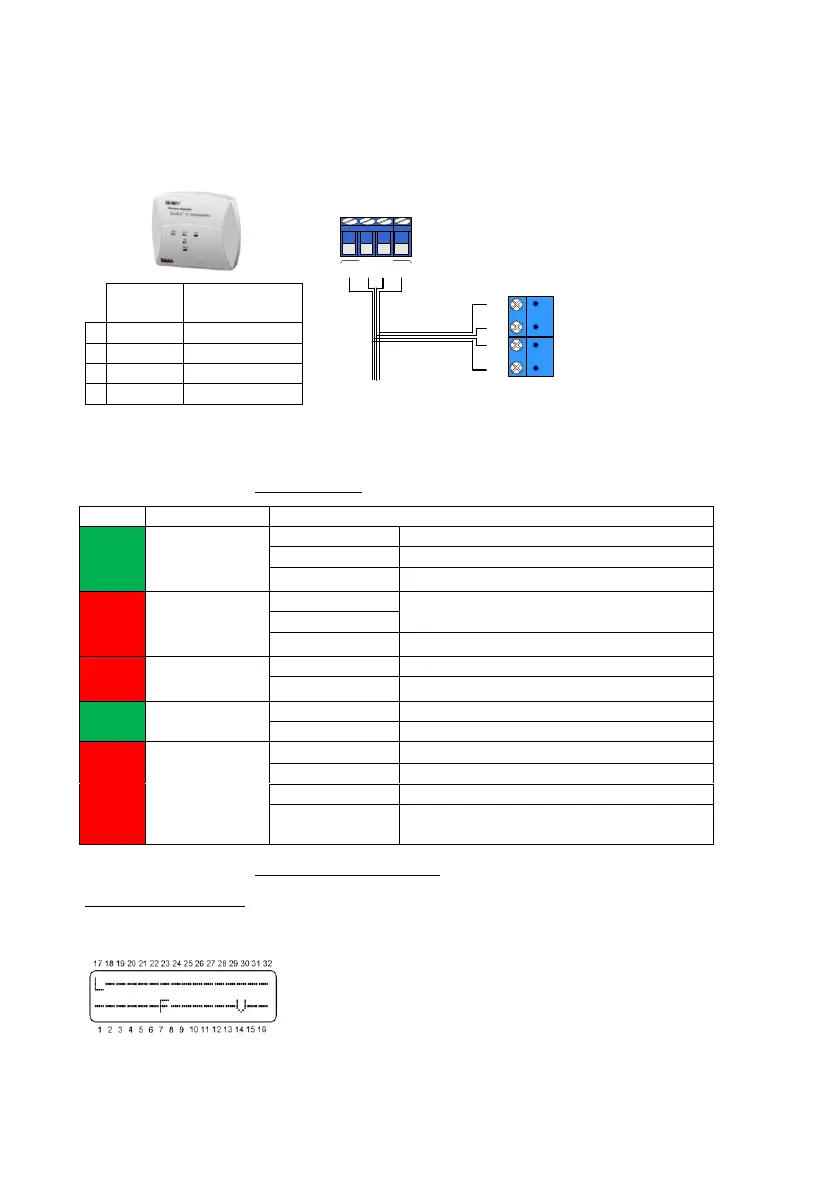

Hunter-Pro Series & Captain 8 Installation Guide
3.2.9 I/O-WN
The I/O-WN is an integrated wireless module for adding wireless zones. See section 3.2.9 for
more details. It interfaces the system's BUS wires.
I/O-
WN
Control
Panel
1
-V
-
2
+V
+
3
OUT
IN
4
IN
OUT
Diagram 12. I/O-WN wiring
For further information on the I/O-WN, refer to its installation guide (P/N 4410208).
3.2.9.1 I/O-WN LEDs
LED
Indication
Status
RUN
(Green)
Operation and
voltage supply
Illuminating
OK
Off
Voltage supply fault
Flashing
Card voltage fault
DATA
(Red)
Communication
Illuminating
Communication fault; see the Fail LED
for information.
Off
Flashing
OK
RX
(Red)
Reception
Illuminating
No reception
Flashing
Reception OK
VALID
(Green)
Registering the
module
Off
Signal has not been acquired
Flashing
Signal has been acquired
FAIL
(Red)
The control
panel
1 blink pattern
Valid frame is not received from the panel
2 blinks pattern
ACK is not received from the panel
3 blinks pattern
The expander is not programmed
4 blinks pattern
General/Fatal error. Occurs when no
transmission is received for one minute
3.2.9.2 Wireless Faults Display
In “Fast display” mode
Wireless accessories faults. For example: zone #7 (tamper) is open, no supervision signal is
received from zone (detector) #14, low battery in zone #17.
4
1-V
2+V
3
I/O-WN
BUS
1 2 3 4
OUT
KEYPAD
IN+-
Control panel
