Hunter-Pro Series & Captain 8 Installation Guide
3.2.5 I/O-8N: remote 8 zone expander

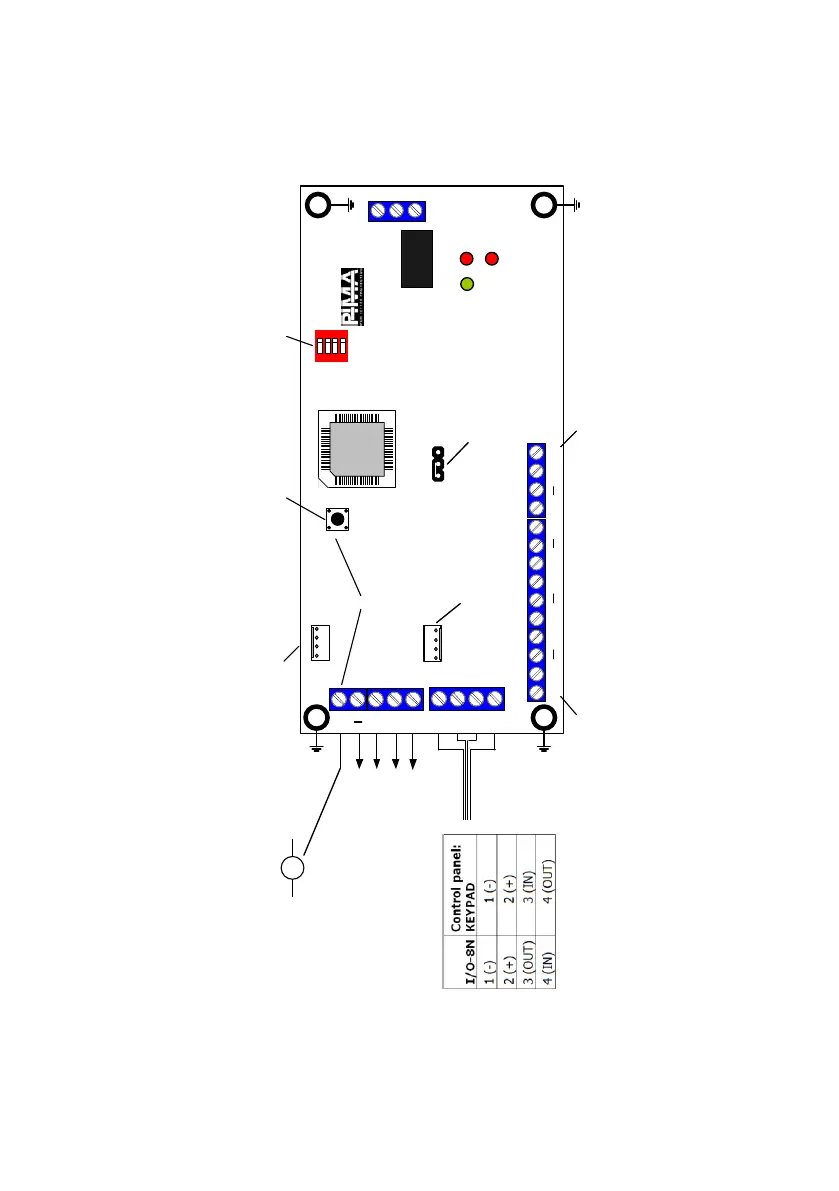

Diagram 8. I/O-8N zone expander
EOL loops jumper (KΩ ):
S- 10/10, 10/13
C- 5.1/6.8
Parallel
connection
Zone inputs, GND (-)
Relay
Card ID DIP switch
A buffer for
extending the
BUS over 500m
To external
TAMPER switch
PS-2 Power
supply input
TAMPER switch
+12V
BUS
RUN
MASTER
DATA
FAIL
1 2 3 4 5 6 7 8 +
NC C NO
+
TMP
(-) (+) (IN)(OUT)
1 2 3 4
POWER SUPPLY
TECH KEYPAD
I/O-8N
Technician
keypad
BUFFER
IN
ON
1 2 3 4
+12V
3 (OUT)
4 (IN)
2 (+)
1 (-)
S C
JP1
