30
HUNTER-PRO Series
Hunter-Pro Series & Captain 8 Installation Guide
Diagram 24. MIC-200 wiring
3.10.2 VU-20U Voice message module
The VU-20U is a voice message recorder, that enables to play up to 2 messages via the
phone, when the alarm is set off.
3.10.2.1 Single message wiring
To use the VU-20U for a single message:
1. Connect the Green wire (M1) to any output and set the output to be triggered by the
"Audio control" output type (including in zone expanders); see section 6.10.2, on page 68.
2. Connect the +/- wires to the control panel's zones’ voltage.
3. Connect the Blue wire to the control panel's AUDIO IN terminal.
4. The Yellow and white wires are not in use.

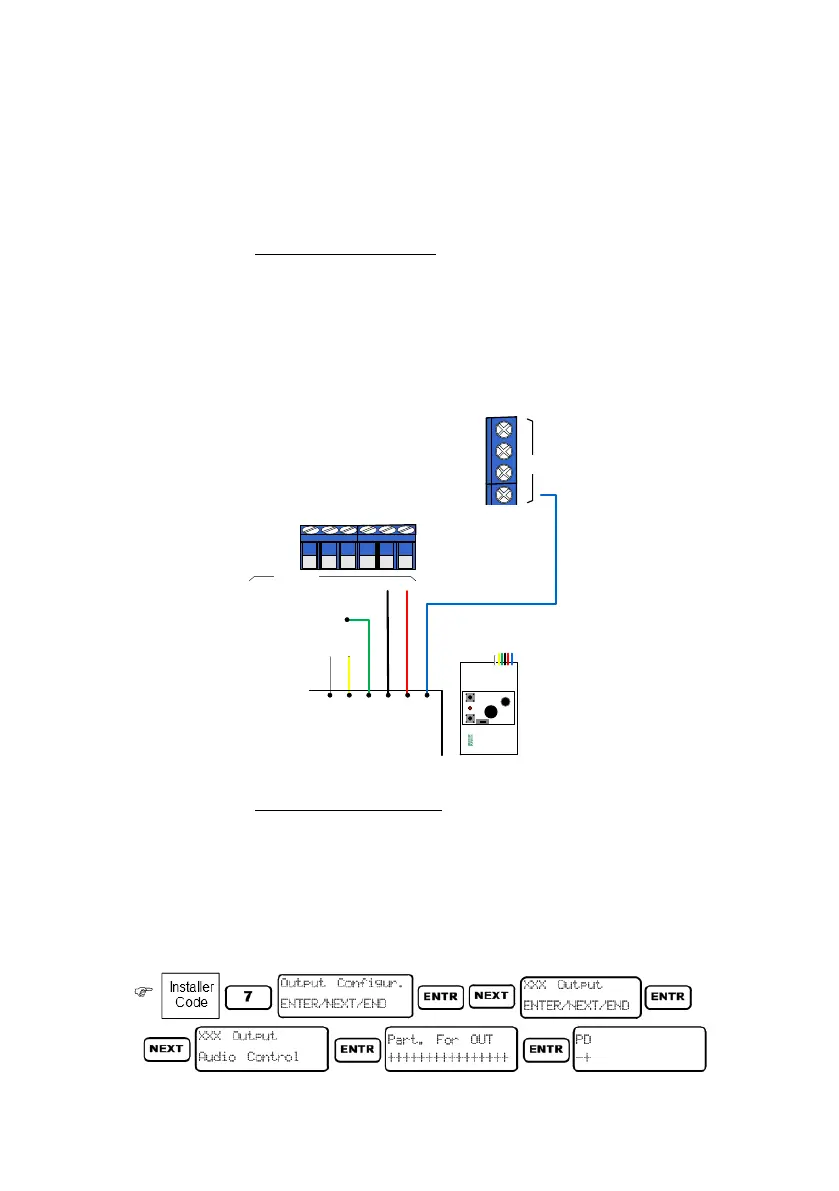

Diagram 25. VU-20U single message wiring
3.10.2.2 Single message setting
To set a single message:
1. In the "Output configuration" menu, select the output to which the VU-20U will
be connected to and triggered by; see section 6.10.2, on page 68.
2. Set the "Audio control" (or any other) output type to trigger the output.
3. Set the output partitions.
4. Set the output's polarity ("P") to (-).
AUDIO IN
Control panel
Blue
Red
Black
Green
Yellow
Audio
VU-20U
White
M1
M2
CONT
+12V
GND
To any output
C
O
N
T
I
N
O
U
T
A
U
D
I
O
A
G
N
D
Z7
Z8
-
+
Z O N E S
Z5
Z6
