9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

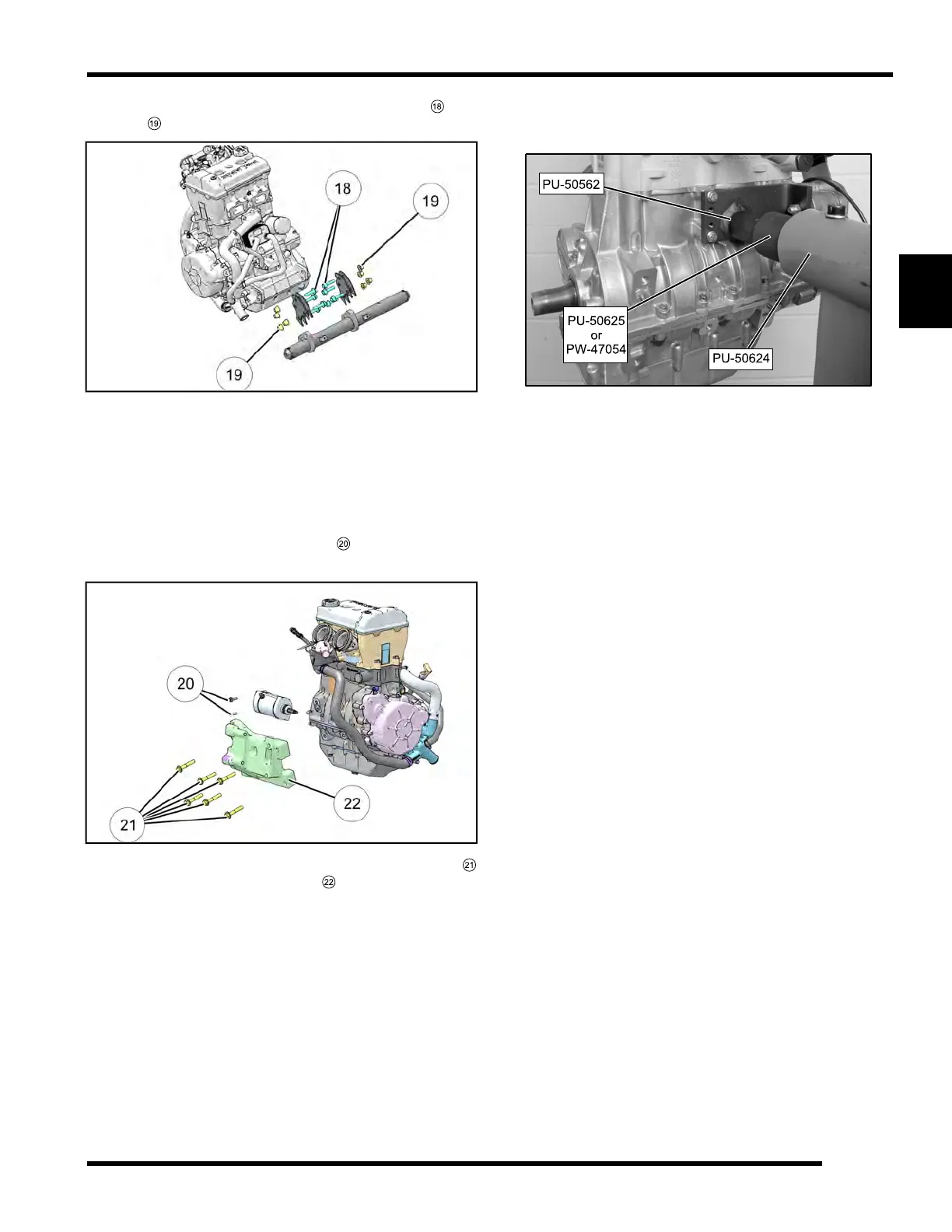

24. Remove the four front engine mounting bolts
18
and
nuts
19
.
25. With the help of an assistant and the engine hoist,
raise the engine vertically out of the vehicle frame.
NOTE: Have an assistant help guide the engine
in and out of the vehicle while using an engine
hoist to prevent personal injury or damage to
vehicle components.
26. Remove the starter motor bolts
20
and starter motor
from the engine.
27. Remove the six transmission joint bracket bolts
21
and transmission joint bracket
22
from the engine.
28. Install the engine stand adapter (PU-50562) onto the
engine where the starter motor was located.
29. Select the proper engine stand sleeve adapter and
install it onto the engine stand adapter.
• Sleeve adapter for a 2″ bore engine stand:
• (PU-50625)
• Sleeve adapter for a 2.375″ bore engine stand:
• (PW-47054)
30. Place engine onto the engine stand (PU- 50624) for
service.
ENGINE / COOLING SYSTEM
