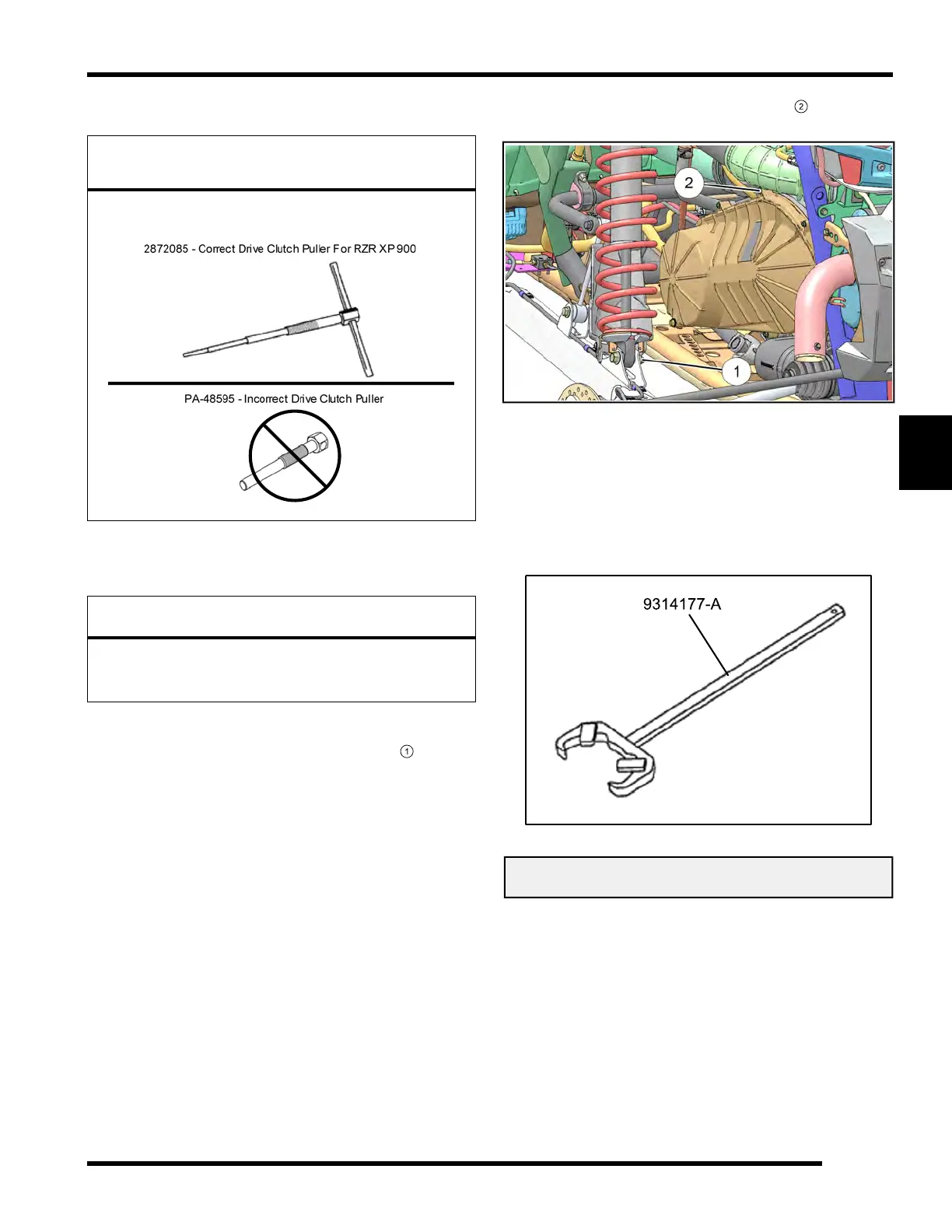

9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual

PVT Disassembly

CAUTION

Correct Drive Clutch Puller P/N 2872085

1. Place transmission in neutral.

2. Raise and support the vehicle.

CAUTION

Serious injury may result if machine tips or falls. Be

sure machine is secure before beginning this service

procedure.

3. Remove the left rear wheel.

4. Remove the lower mounting bolt and nut

from the

left rear shock. Discard the nut.

5. Swing shock outward toward the front of the vehicle.

6. If servicing a 2015 RZR XP4 1000, Loosen the hose

clamp attaching PVT intake hose to the outer clutch

cover and disengage the hose from the outer clutch

cover.

7. Remove the eight clutch cover screws

and remove

the outer clutch cover from the vehicle.

8. Mark the drive belt direction of rotation and remove

drive belt (see Chapter 5 – Belt Removal, page

5.15).

9. Remove the driven clutch retaining bolt and driven

clutch.

10. Install the Drive Clutch Holding Tool (9314177-A) on

the drive clutch.

Drive Clutch Holding Tool 9314177-A
