Polaris RZR XP4 1000 User Manual

4.34
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

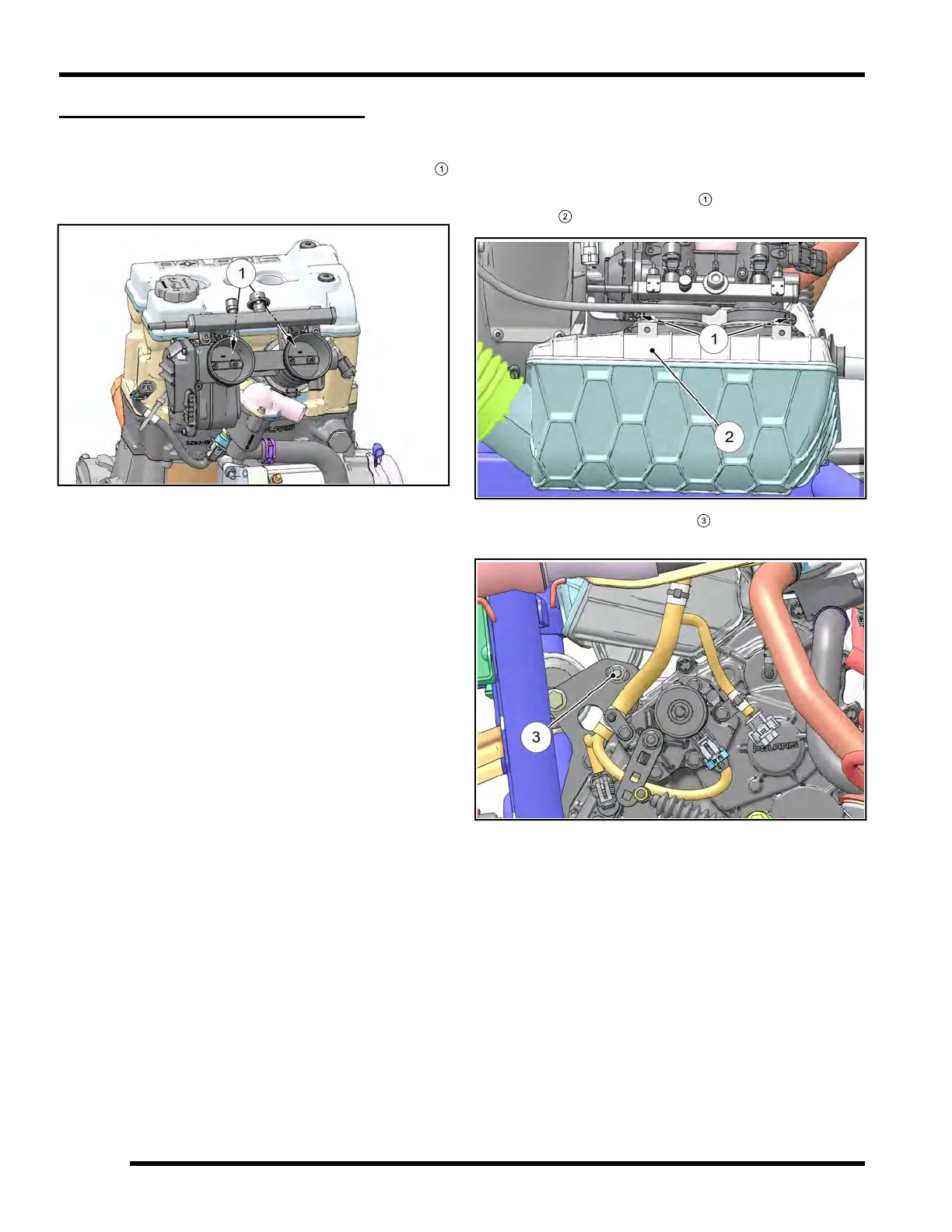

THROTTLE BODY ASSEMBLY
Operation Overview
Mounted to the cylinder head, the dual throttle body
1
assembly provides the proper air/fuel ratio needed for
engine operation.
The throttle body assembly also includes the Electronic
Throttle Control and Idle Air Control.
Throttle Body Service
The throttle body assembly is a non-serviceable
component. However, the fuel rail, fuel injectors, and the
Temperature and Manifold Pressure Sensor (TMAP) can
be serviced separately (see Chapter 4 – FUEL
INJECTORS, page 4.20 and Temperature / Manifold
Absolute Pressure (T-MAP) Sensor, page 4.31).
Throttle Body Removal
1. Remove the cargo box assembly (See Chapter 10 –
Cargo Box Assembly Removal, page 10.22).
2. Be sure the engine has cooled enough to work on.
3. Loosen the hose clamps
1
retaining the intake
plenum
2
to the throttle body.
4. Remove the two screws
3
retaining the intake
plenum.
5. Remove the driver’s seat and disconnect the
negative battery cable.
FUEL SYSTEM
