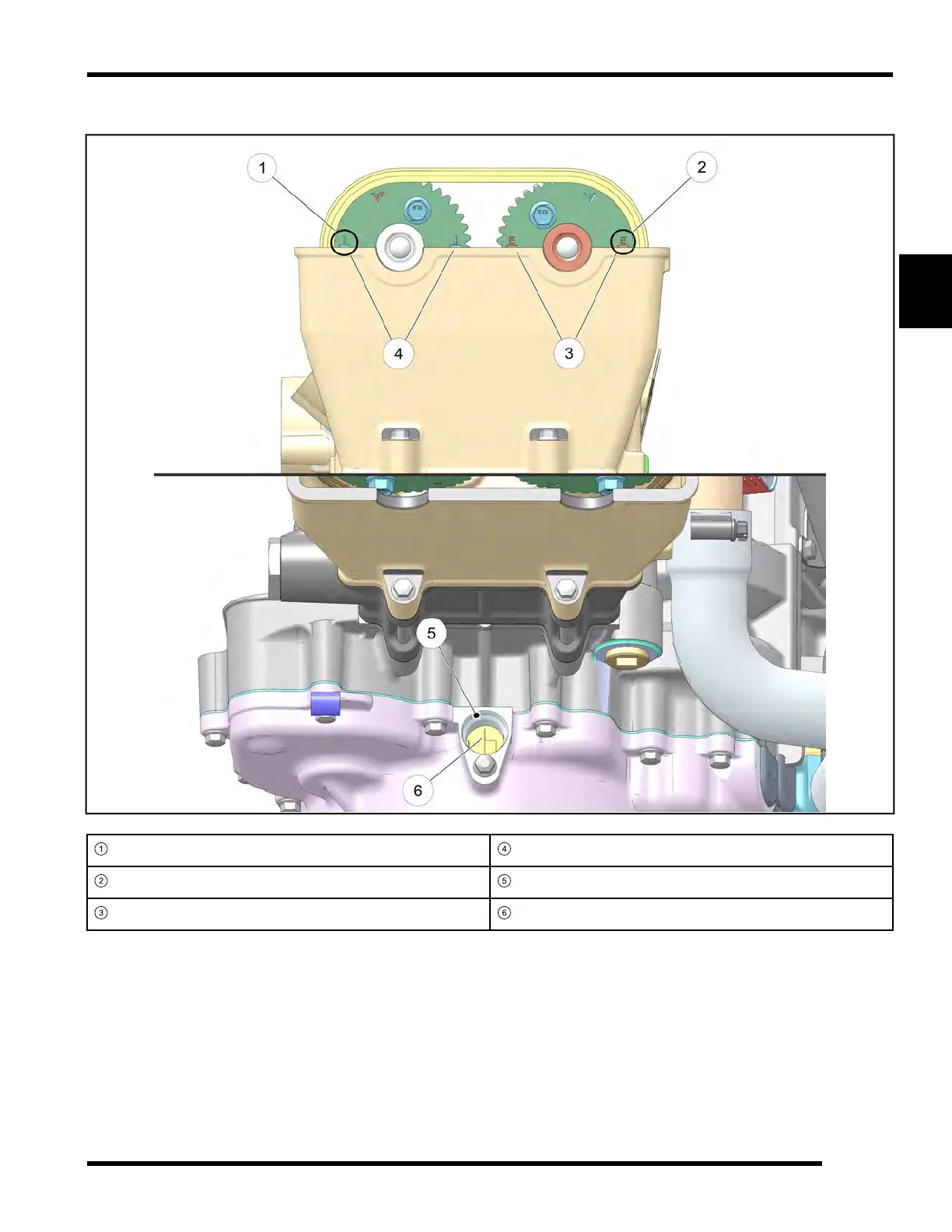

Camshaft Timing - Quick Reference
1
Intake Cam
4
Align marks with surface
2
Exhaust Cam
5
CPS Mounting Hole
3
Align marks with surface
6
Align Flywheel Mark in Mounting Hole
Important
DO NOT use the “V” mark located on the flywheel opposite of the “I” mark. Only the “I” mark should be used as a TDC
reference
