FRONT PROPSHAFT SERVICE

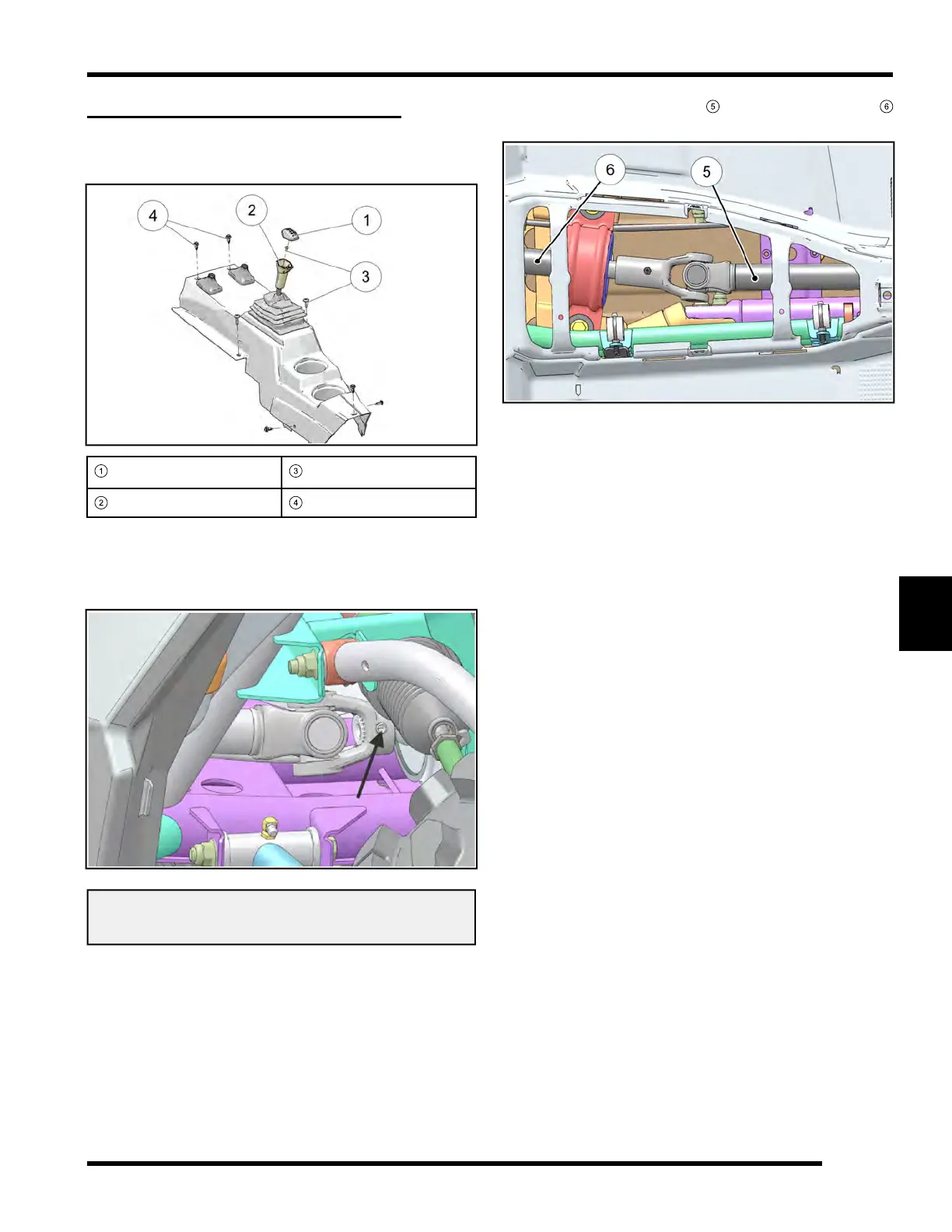

Front Propshaft Removal
1. Remove the center console.
1
Cap
3
Torx Screw
2
Shifter
4
Push Rivet
2. Locate the prop shaft roll pin and use the Roll Pin
Removal Tool (PN 2872608) to remove the roll pin.
Discard roll pin. Push the front prop shaft rearward to
remove it from the front gearcase input shaft.
Roll Pin Removal Tool:
PN 2872608
NOTE: Right front wheel can be removed to gain
better access to the propshaft roll pin.
3. Slide the front propshaft
5
off the rear propshaft
6
and remove it from the vehicle.
4. Proceed to Front Prop Shaft Installation, page 7.24.
