3.51

9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual

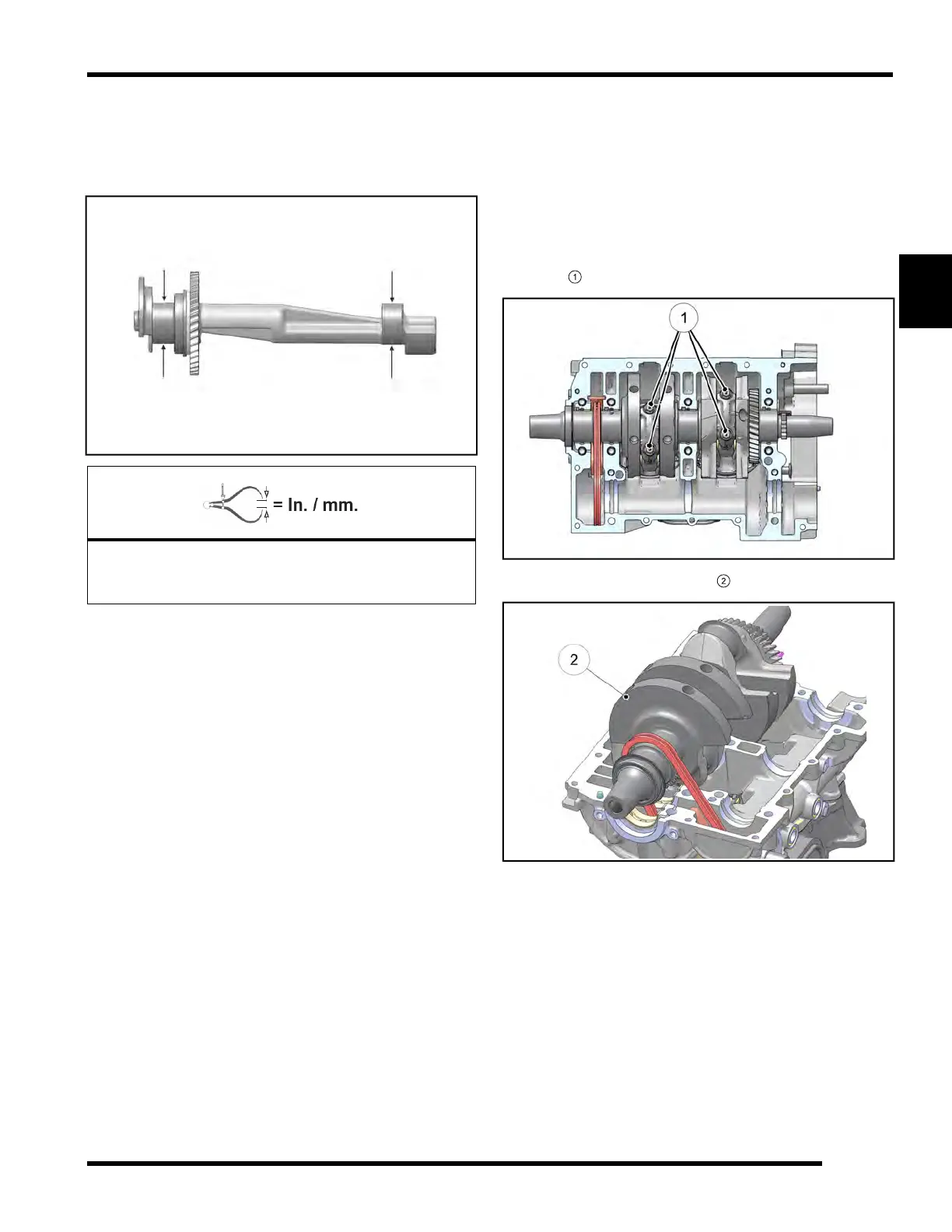

5. Measure each bearing journal in two locations, 90

degrees apart. Replace balance shaft if either journal

is worn below the service limit specification. If worn

past the service limit, replace the balance shaft

assembly.

Balance Shaft Diameter (MAG & PTO)

1.4939 - 1.4946" (37.946 - 37.962 mm)

Service Limit: 1.4921" (37.900 mm)

Crankshaft Removal / Inspection

1. Perform Crankcase Disassembly / Inspection, page

3.48 procedure.

2. Perform Balance Shaft Removal / Inspection, page

3.50 procedure.

3. For ease of assembly, mark each connecting rod and

end cap.

4. Loosen, remove and discard the four connecting rod

bolts

. Remove the end caps from the crankshaft.

5. Carefully lift the crankshaft

out of the crankcase.

ENGINE / COOLING SYSTEM
