9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

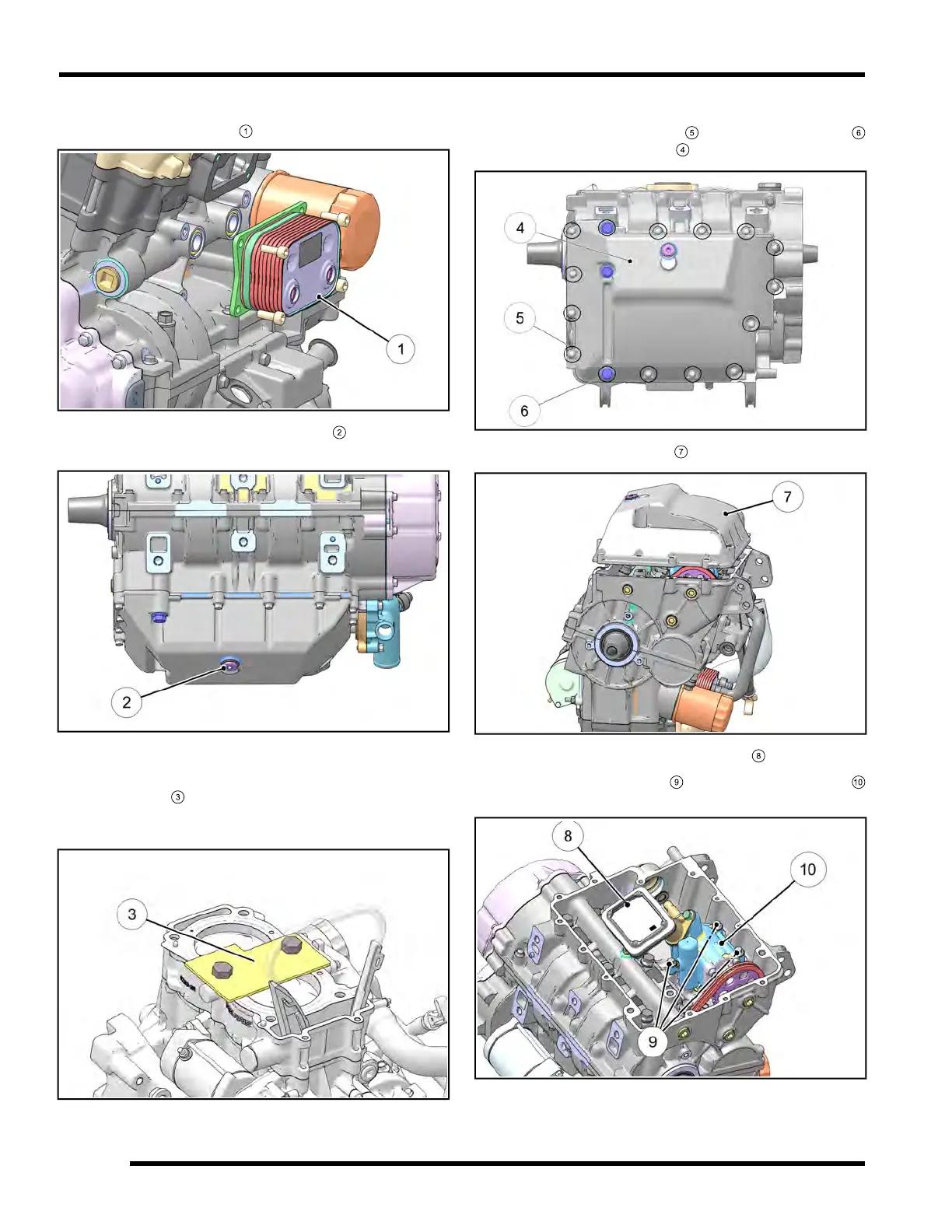

Crankcase Disassembly / Inspection
1. Remove the oil cooler
1
from the crankcase.
2. Remove the crankcase drain plug
2
. Drain any oil
remaining in the engine.
3. Remove the oil filter.
4. Install the Cylinder Holding & Camshaft Timing Plate
(PU-50563)
3
onto the cylinder. The cylinder holding
tool retains the cylinder and pistons when the engine
is rotated.
5. Rotate engine to access the crankcase sump cover.
6. Remove the thirteen M6
5
and three M8 bolts
6
retaining the sump cover
4
to the crankcase.
7. Remove the sump cover
7
from the crankcase.
8. Remove and clean oil pump pick-up
8
.
9. Remove the three bolts
9
that retain the oil pump
10
to the crankcase.
ENGINE / COOLING SYSTEM
