5.10
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

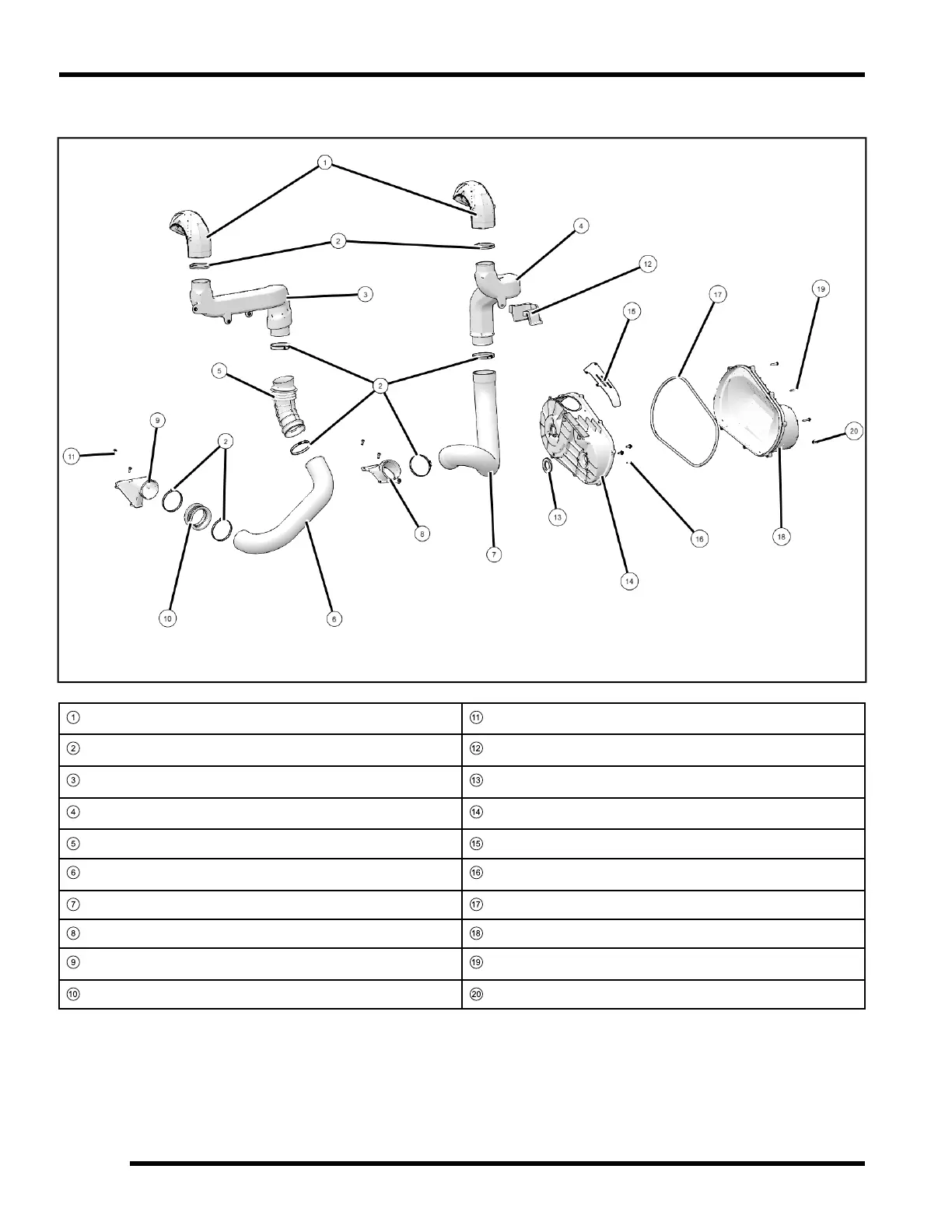

PVT Covers and Ducting Components (High Lifter)
1
Inlet/Outlet Duct
11
Screw, Inlet Duct
2
Band Clamp
12
Retaining Bracket, Upper Exhaust Hose
3
Upper Intake Hose
13
Inner Cover Seal
4
Upper Exhaust Hose
14
Inner Clutch Cover
5
Middle Intake Hose
15
Guard Plate
6
Lower Intake Hose
16
Inner Clutch Cover Screw (7)
7
Lower Exhaust Hose
17
Outer Cover Seal
8
Outlet Duct
18
Outer Clutch Cover
9
Inlet Duct
19
Outer Clutch Cover Screw (8)
10
Boot
20
PVT Drain Screw
PVT SYSTEM
