9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

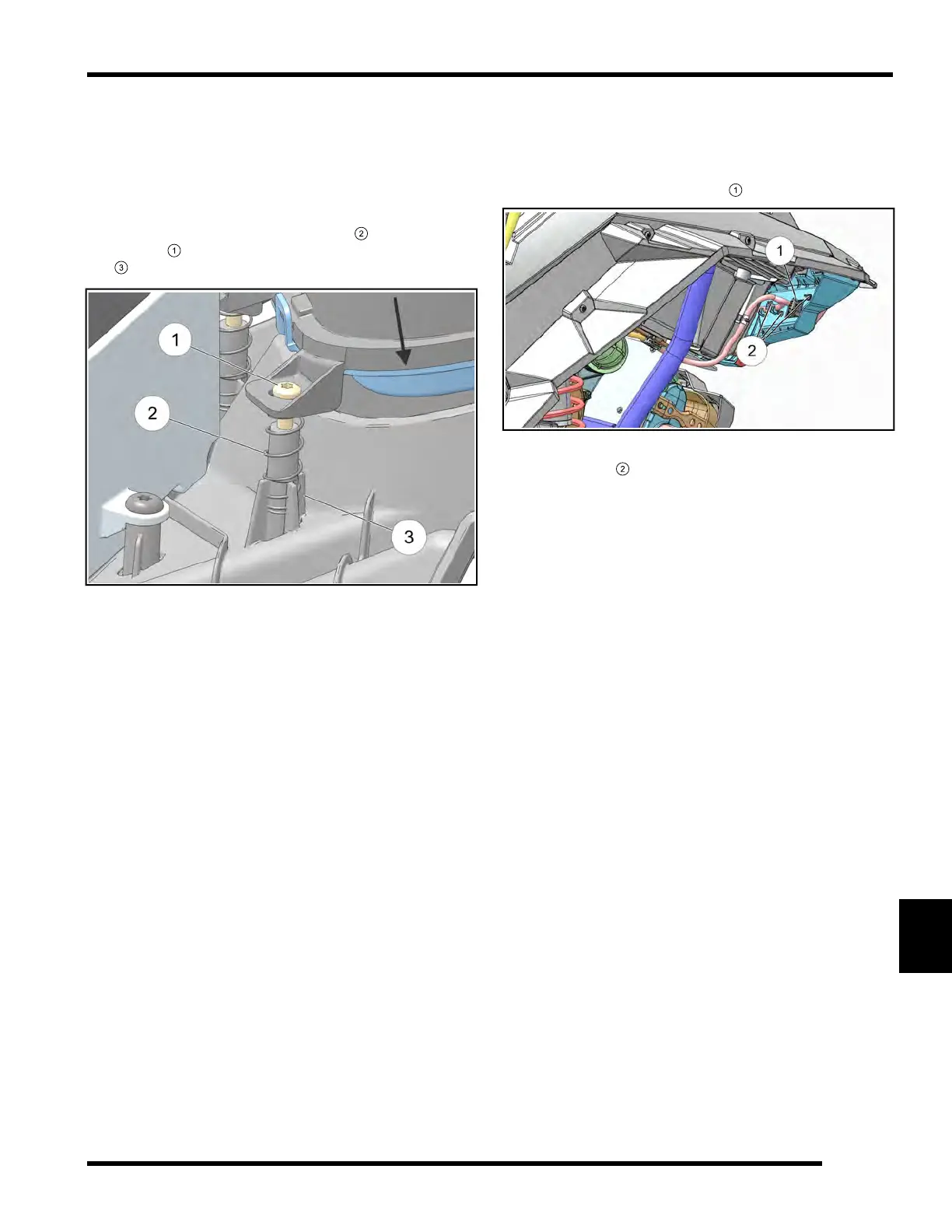

Headlamp Installation
1. Install the headlamp adjustment springs onto the
front bumper mounting bosses.
2. Insert the three T-25 headlamp mounting screws into
the headlamp assembly mounting holes.
3. Maneuver the headlamp assembly into position. Be
sure all three headlamp springs
2
and mounting
screws
1
are properly aligned with mounting bosses
3
on the front bumper.
4. Fully tighten all three headlamp screws until the
headlamp assembly is fully seated. Back headlamp
mounting screws off 1/8” to 1/4” (2-3 turns).
5. Install the front bumper as shown in Chapter 5 if
previously removed.
6. Connect headlamp electrical connector to the
headlamp assembly.
7. Perform the “Headlight Adjustment” procedure as
shown in this chapter.
Taillight Replacement
Before replacing the taillight(s), use a digital multi-meter
to test the harness to ensure the lamp is receiving 12
volts and that a ground path is present.
1. Disconnect the wire harness
1
.
2. While holding the taillight assembly, remove the
three nuts
2
retaining the taillight assembly and
remove it from the rear fascia.
ELECTRICAL
