9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual

Stator (Alternator) Replacement

Refer to Chapter 3 – Stator Cover Removal / Inspection,

page 3.44 procedure to service the stator.

NOTE: The stator cover can be removed with the

engine installed in the chassis.

Be sure to thoroughly clean the area around the

stator cover prior to removal.

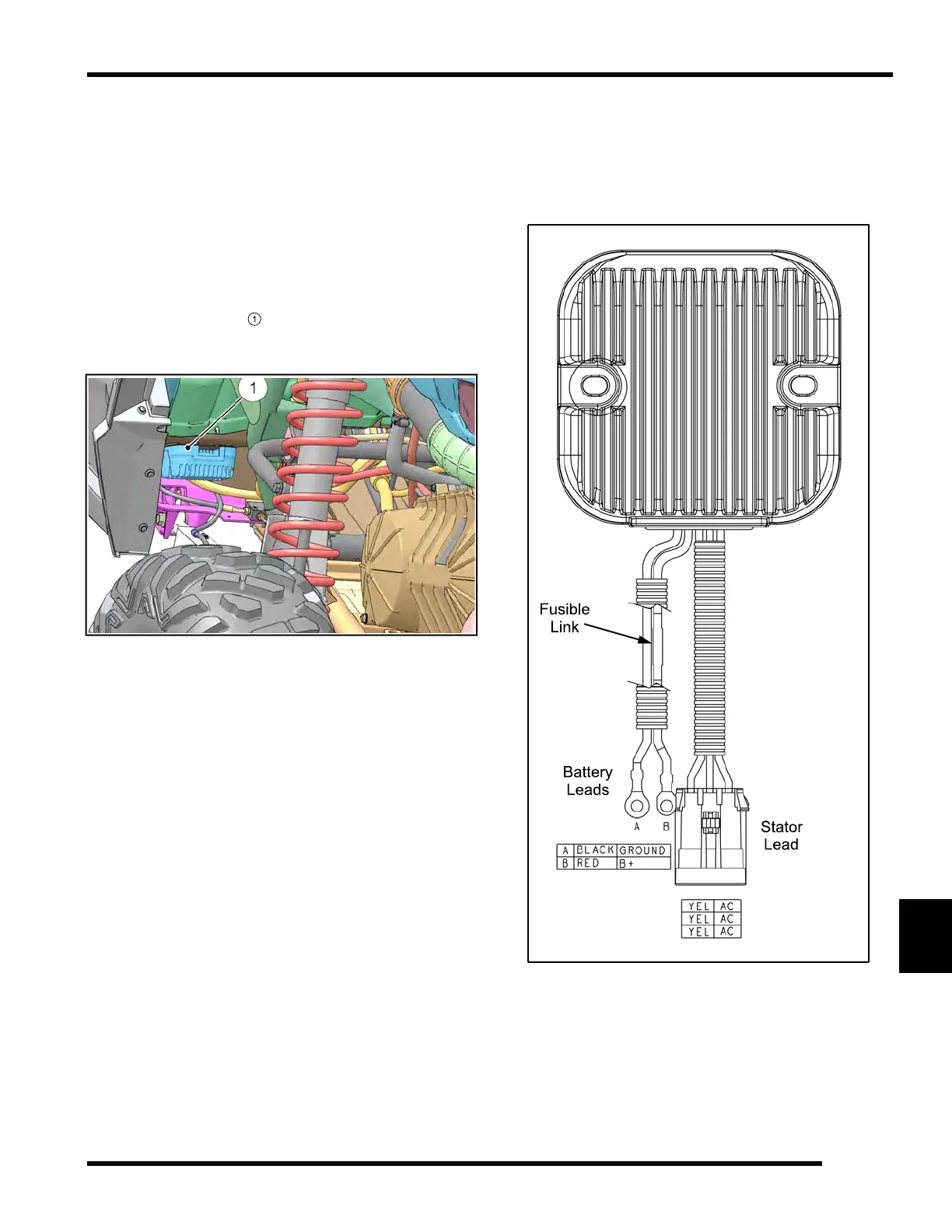

Regulator / Rectifier

The regulator / rectifier

is located in the left rear wheel

well area in front of the left rear shock. It is mounted

under the LH panel divider.

NOTE: If the regulator / rectifier case temperature

exceeds 230° F or 110° C, the unit will turn itself off

to cool down. The unit will turn on again after it has

cooled down to at least 212° F or 100° C. If it turns

off, verify the cooling fins are clean, free from debris

and that adequate airflow is present.

ELECTRICAL
