9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

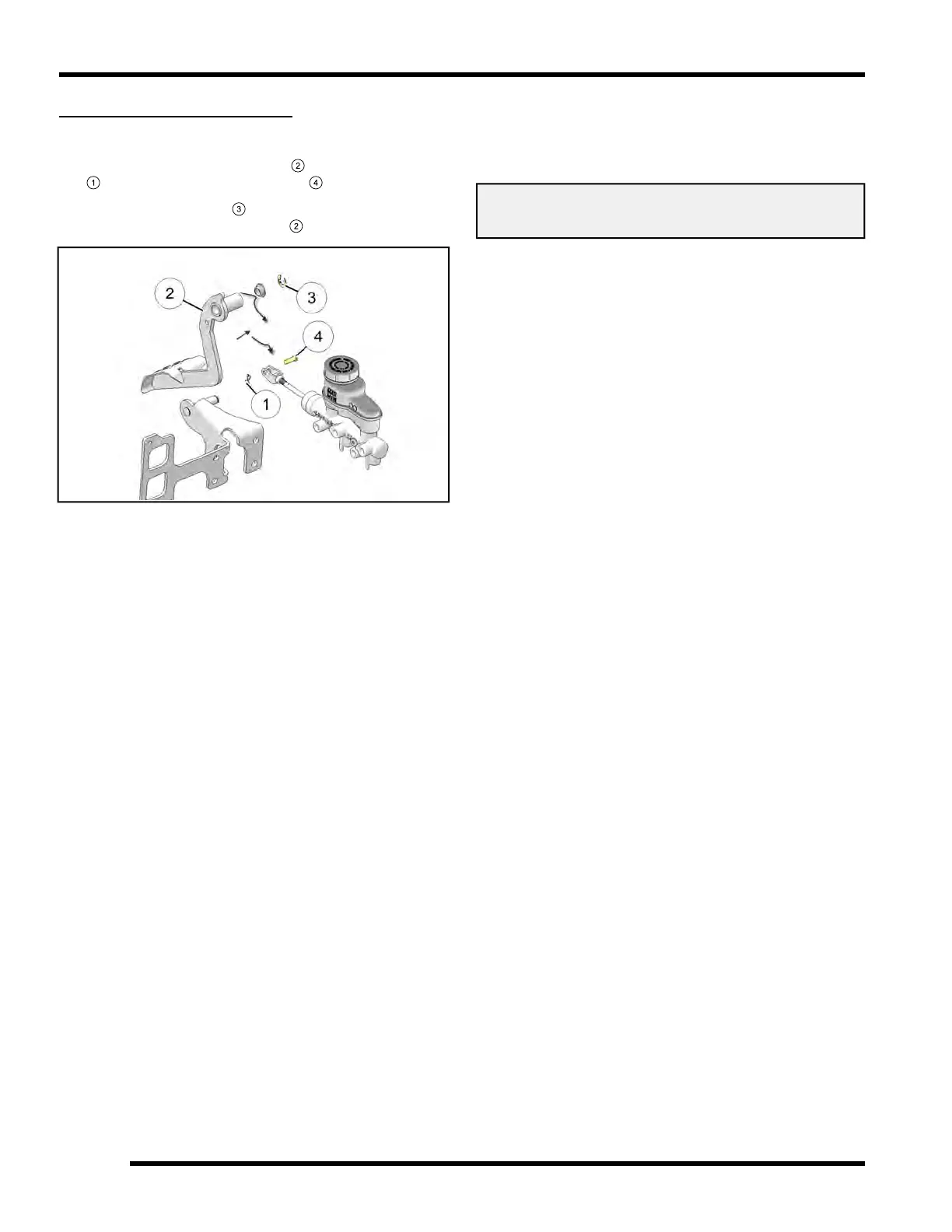

BRAKE PEDAL LEVER
Brake Pedal Removal
1. Locate the brake pedal lever
2
and remove the clip
1
and master cylinder clevis pin
4
.
2. Remove the E-clip
3
from the pedal mount and
remove the brake pedal lever
2
from the vehicle.
Brake Pedal Installation
1. Reverse the “Removal” steps to install brake pedal
lever. Brake pedal free-play should not exceed
0.090” (2.28 mm).
Brake Pedal Free-play:
0.090″ (2.28 mm)
BRAKE SYSTEM
