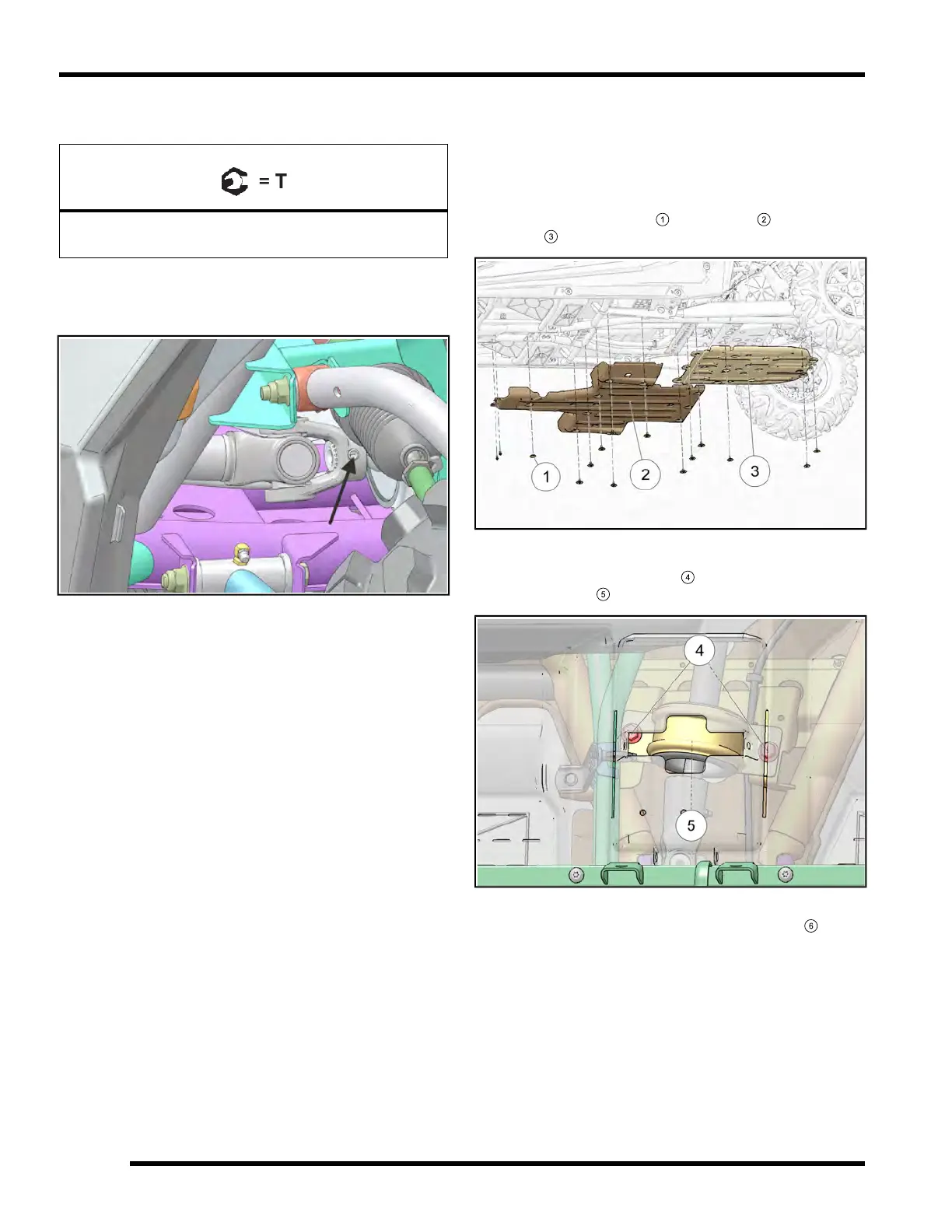

7. Torque the support bearing fasteners to
specification.
Support Bearing Fasteners:
35 ft-lb (47 Nm)
8. Align the front propshaft paint mark with the front
gearcase input shaft mark so the pin holes align.
Install a new roll pin.
Rear Prop Shaft Removal XP 4
1. Remove all seats.
2. Remove the front and rear center consoles (see
Chapter 10 – Rocker Panels, Rear Console and
Floor XP 4, page 10.24).
3. Remove the fasteners
1
from center
2
and rear skid
plates
3
.
4. Remove center and rear skid plates.
5. Remove the fasteners
4
securing the support
bearing cover
5
to the frame.
6. Move the prop shaft support bearing assembly to the
drivers side to slide the rear prop shaft yoke
6
off the
transmission output shaft.
FINAL DRIVE
