8.11

9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual

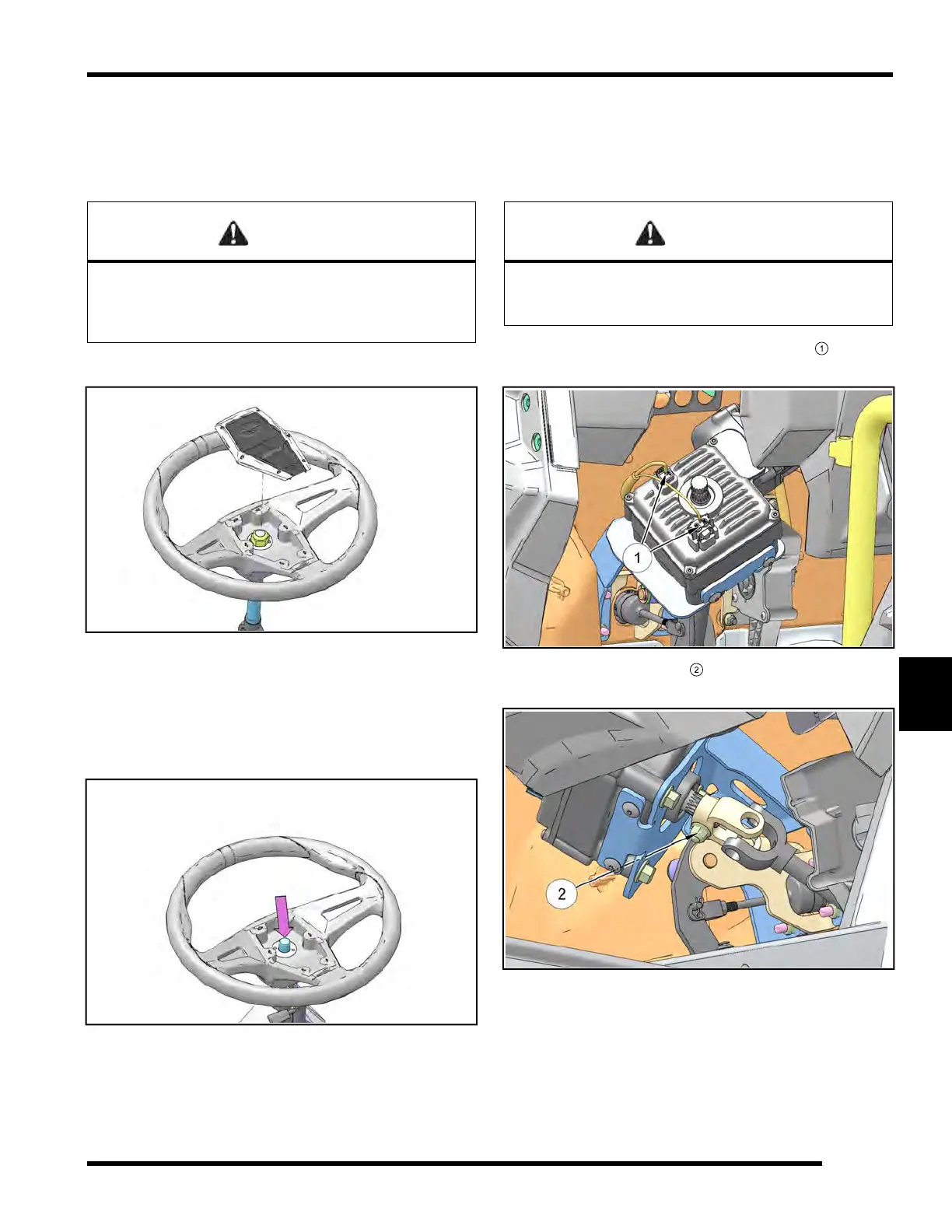

Steering Wheel Removal (EPS Models)

1. Remove the upper steering shaft, pivot tube and

steering wheel as an assembly before attempting to

remove the steering wheel. Refer to Upper Steering

Shaft Removal (EPS Models), page 8.10.

CAUTION

Striking the steering wheel or steering shaft

while installed in the vehicle can permanently damage

the EPS unit and cause a

Power Steering Fault.

2. Remove the steering wheel cap.

3. Loosen the nut and back it half way off the steering

shaft.

4. Place the assembly in a vise.

5. Using a large bronze drift and hammer, strike the

steering shaft nut to pop the steering wheel off the

shaft taper.

6. Once the steering wheel pops loose, completely

remove the nut and lift the steering wheel off the

shaft.

Power Steering Unit Removal

1. Remove the upper steering shaft, pivot tube and

steering wheel from the vehicle as an assembly.

Refer to Upper Steering Shaft Removal (EPS

Models), page 8.10.

CAUTION

Striking the steering wheel or steering shaft while

installed in the vehicle can permanently damage the

EPS unit and cause a power steering fault.

2. Disconnect the two electrical harnesses

from the

power steering unit .

3. Remove the pinch bolt

retaining the lower steering

shaft to the power steering unit .

STEERING / SUSPENSION
