OXYGEN SENSOR (MY15 ONLY)
Oxygen Sensor Information

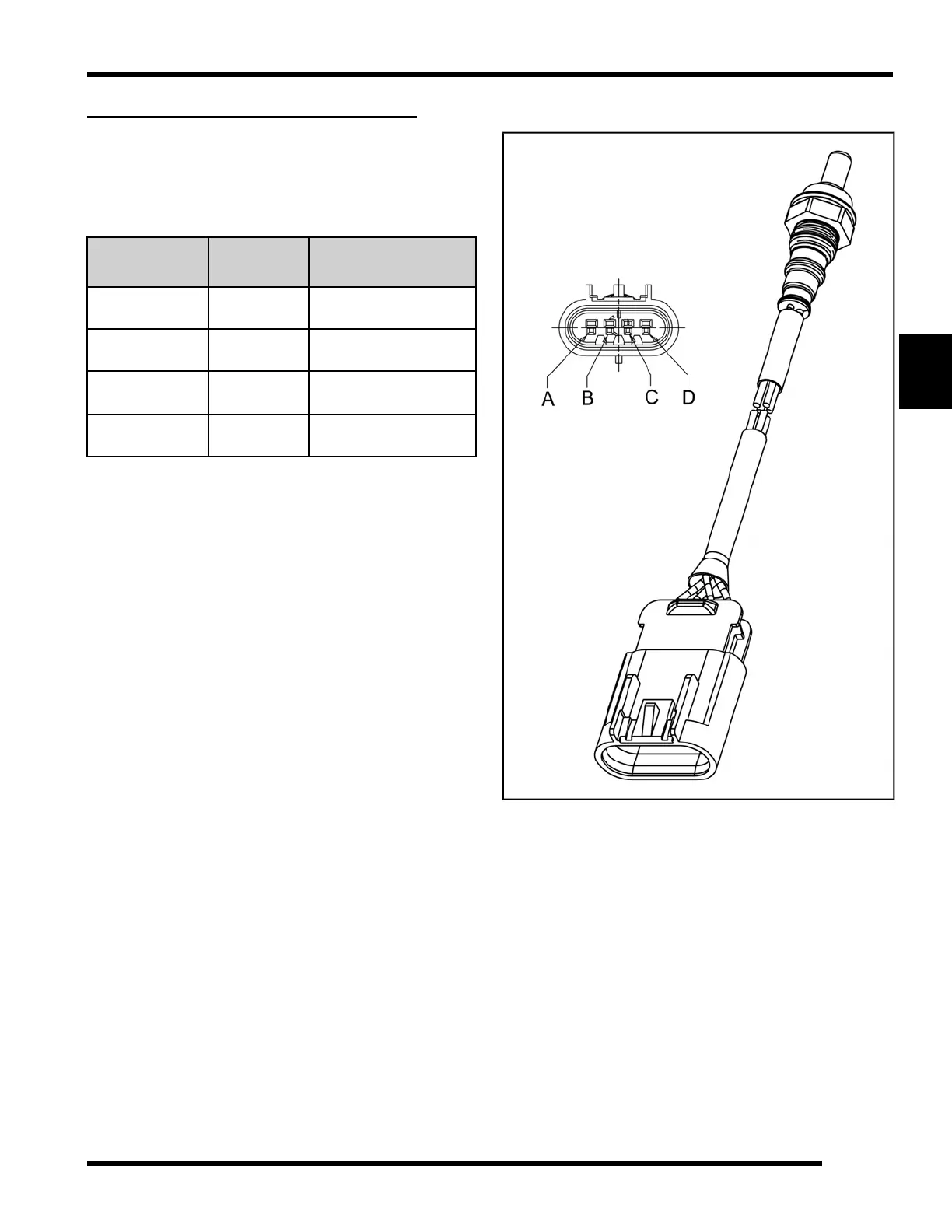

The 2015 RZR XP / XP4 1000 has a 4 wire heated
oxygen sensor. (see table 1.)
Table 1
CONNECTOR
PIN
WIRE
COLOR
PIN AND WIRE
CONNECTION
A
Purple Heater Power
B
White Heater Ground
C
Gray Sensor Output
D
Black
Sensor Ground
There are no valid static tests to perform on the oxygen
sensor. The sensor should be diagnosed using Digital
Wrench.
First, verify if there are any stored codes for the oxygen
sensor.
NOTE: The ECU must first run though the O2 sensor
time delay before a trouble code will be set. This may
take several minutes at idle to occur.
Short drive cycles and cold temperatures will both affect
the delay time of the O2 sensor (increases the delay).
The delay time ensures the oxygen sensor heater has
run long enough to provide accurate data.
