VEHICLE SPEED SENSOR

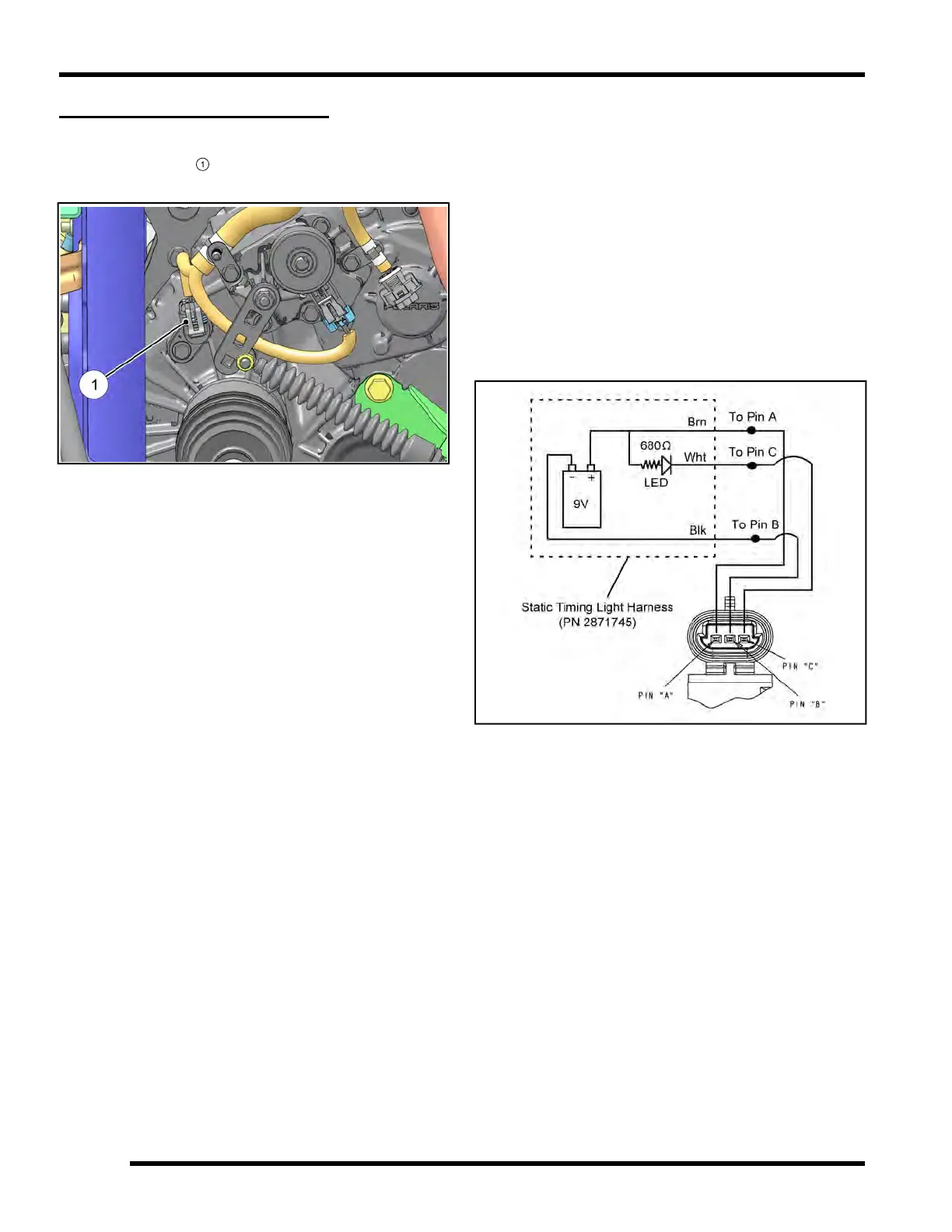

Speed Sensor Location
The speed sensor
1
is located on the RH side of the
transmission, accessed through the rear RH wheel well.
Speed Sensor Testing
1. Disconnect the 3 wire harness from the speed
sensor and remove the sensor from the
transmission.
2. Connect the wires from the Static Timing Light
Harness (2871745) to the sensor 3 pin connector
using the Hall Sensor Probe Harness ( 2460761).
3. Pass a screwdriver back and forth in front of the
sensor tip.
4. Be sure connections are good and 9V battery is in
good condition. If the light flashes, the sensor is
good.
