5.8
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.
PVT SYSTEM SERVICE

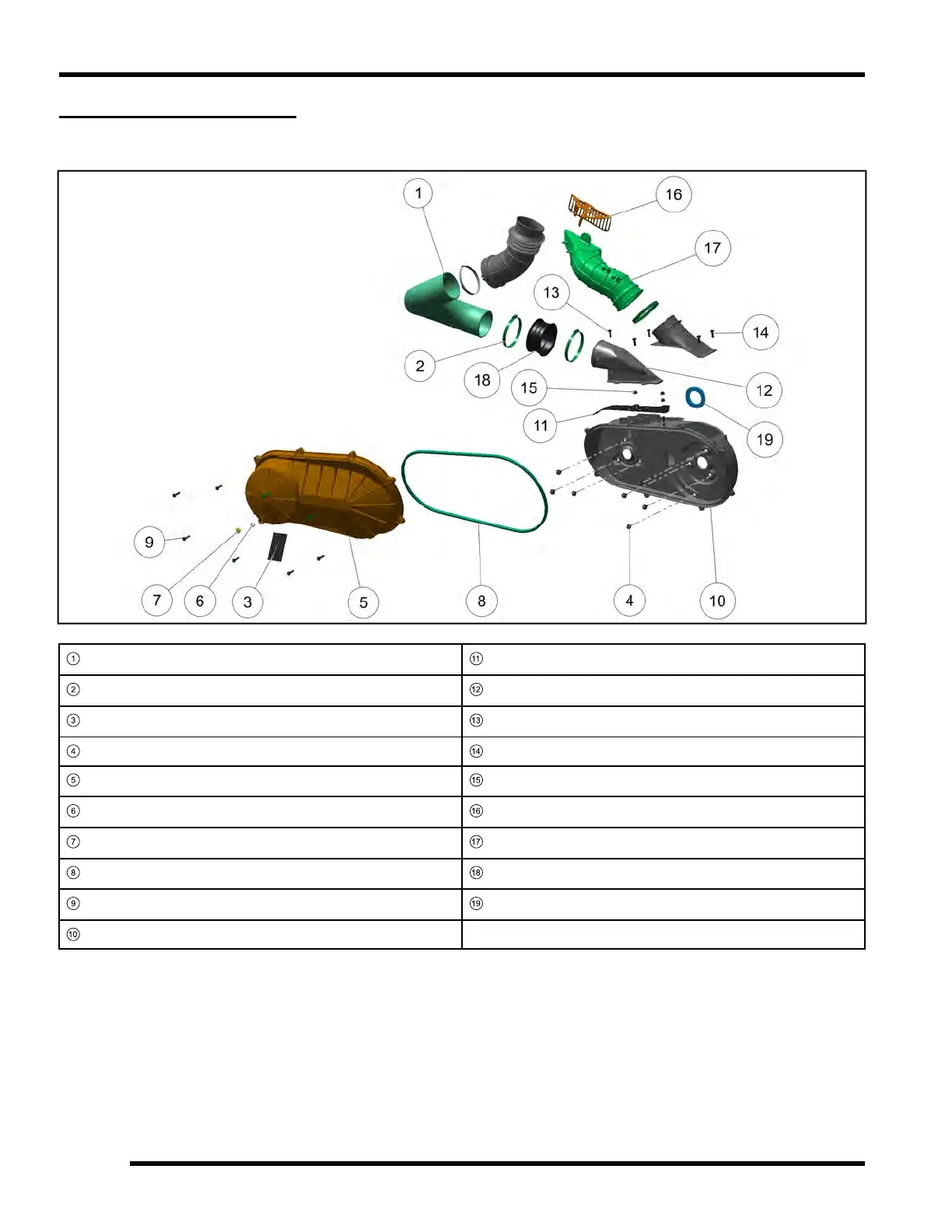

PVT Covers and Duct Components
1
CLUTCH DUCT INTAKE ASSEMBLY
11
BRACKET, COVER GUARD
2
CLAMP, WORM
12
AIR INLET DUCT
3
DECAL, CAUTION
13
SCREW
4
BOLT and WASHER
14
SCREW
5
COVER ASSEMBLY, OUTER
15
NUT, NYLOK
6
O-RING
16
BRACKET, BELT SCREEN
7
DRAIN PLUG, COVER
17
HOSE, AIR OUTLET
8
SEAL, COVER
18
INTAKE BOOT
9
SCREW
19
SEAL, COVER
10
COVER ASSEMBLY
