Polaris RZR XP4 1000

5
5.9
9925724 R01 - 2014-2015 RZR XP 1000 / RZR XP4 1000 Service Manual
© Copyright 2014 Polaris Industries Inc.

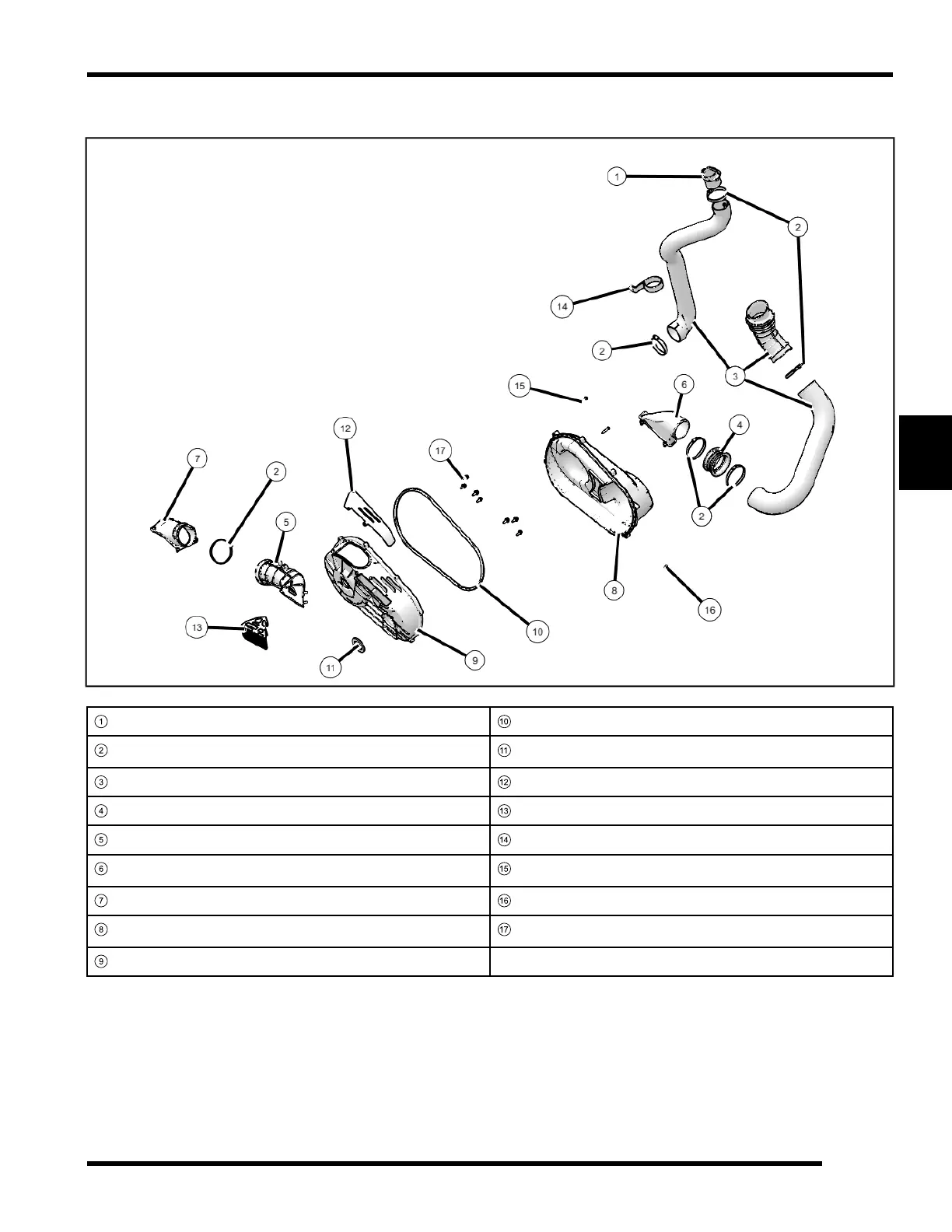

2015 XP / XP4 PVT Covers and Ducting Components
1
Inlet Duct
10
Outer Cover Seal
2
Band Clamp
11
Inner Cover Seal
3
Intake Hose
12
Guard Plate
4
Boot
13
Outlet Duct Screen
5
Clutch Outlet Duct
14
Intake Hose Bracket
6
Inlet Duct
15
Outer Cover Screws (8 ft-lbs, 11 Nm)
7
Outlet Duct
16
Clutch Cover Drain Screw
8
Outer Clutch Cover
17
Inner Cover Screws (8 ft-lbs, 11 Nm)
9
Inner Clutch Cover
PVT SYSTEM
