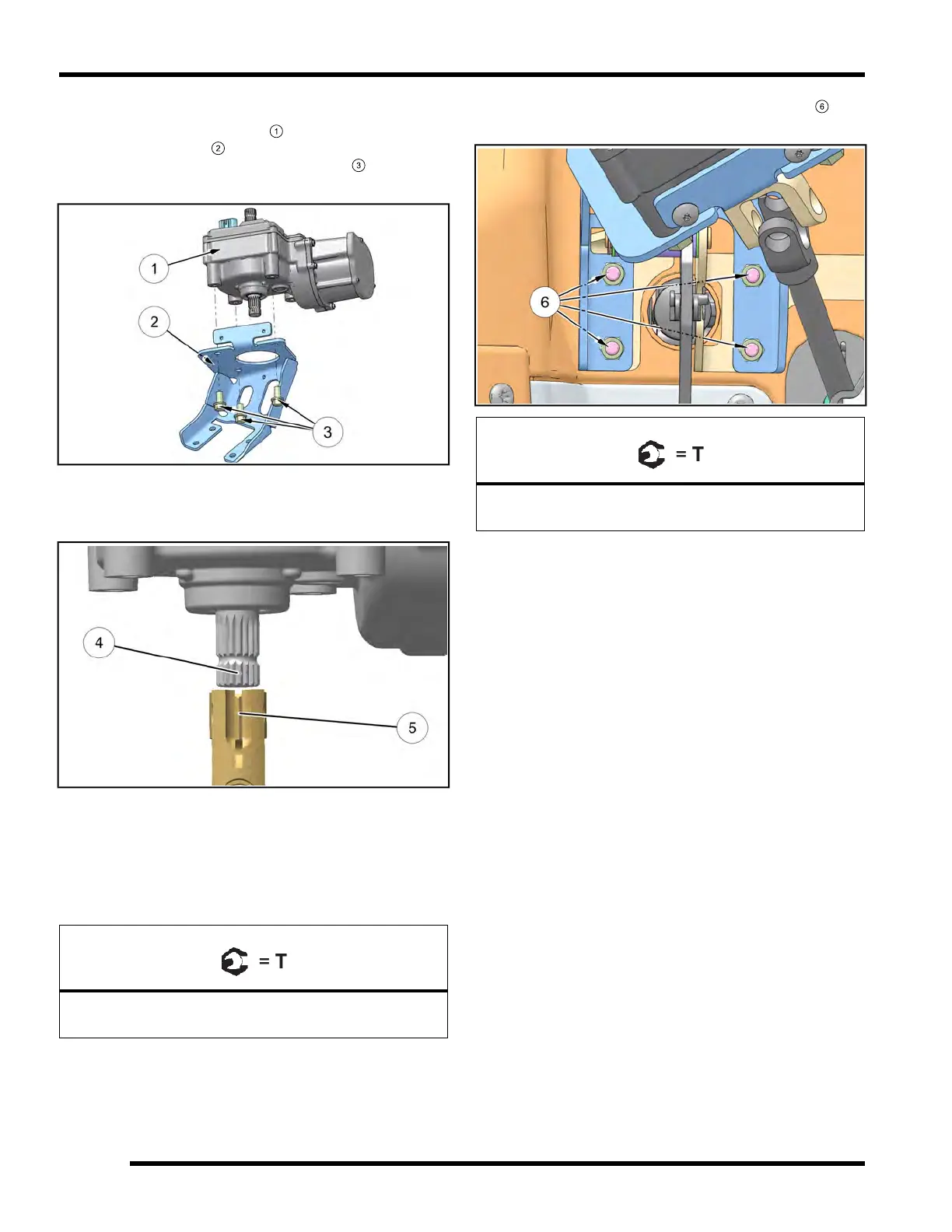

Power Steering Unit Installation
1. If the power steering unit
1
was removed from the
mount bracket
2
, reinstall it prior to vehicle
installation. Torque the mounting bolts
3
to 20–24 ft.
lbs. (27–33 Nm)
2. Install the power steering unit into the vehicle and
align the skip-tooth spline on the power steering stub
shaft with the opening in the lower steering shaft.
3. Place the power steering mount bracket over the top
of the brake pedal mount studs and finger tighten the
four nuts.
4. Position the lower steering shaft on the power
steering unit stub shaft and install the pinch bolt.
Torque to specification.
Lower Steering Shaft to EPS Unit Pinch Bolt:
15 ft-lbs (20 Nm)
5. Torque the four mount bracket nuts
6
to
specification.
Power Steering Unit Mount Bracket Nuts:
16 ft-lb (22 Nm)
6. Proceed to Upper Steering Shaft Installation (EPS
Models), page 8.15 to complete the installation
procedure.
